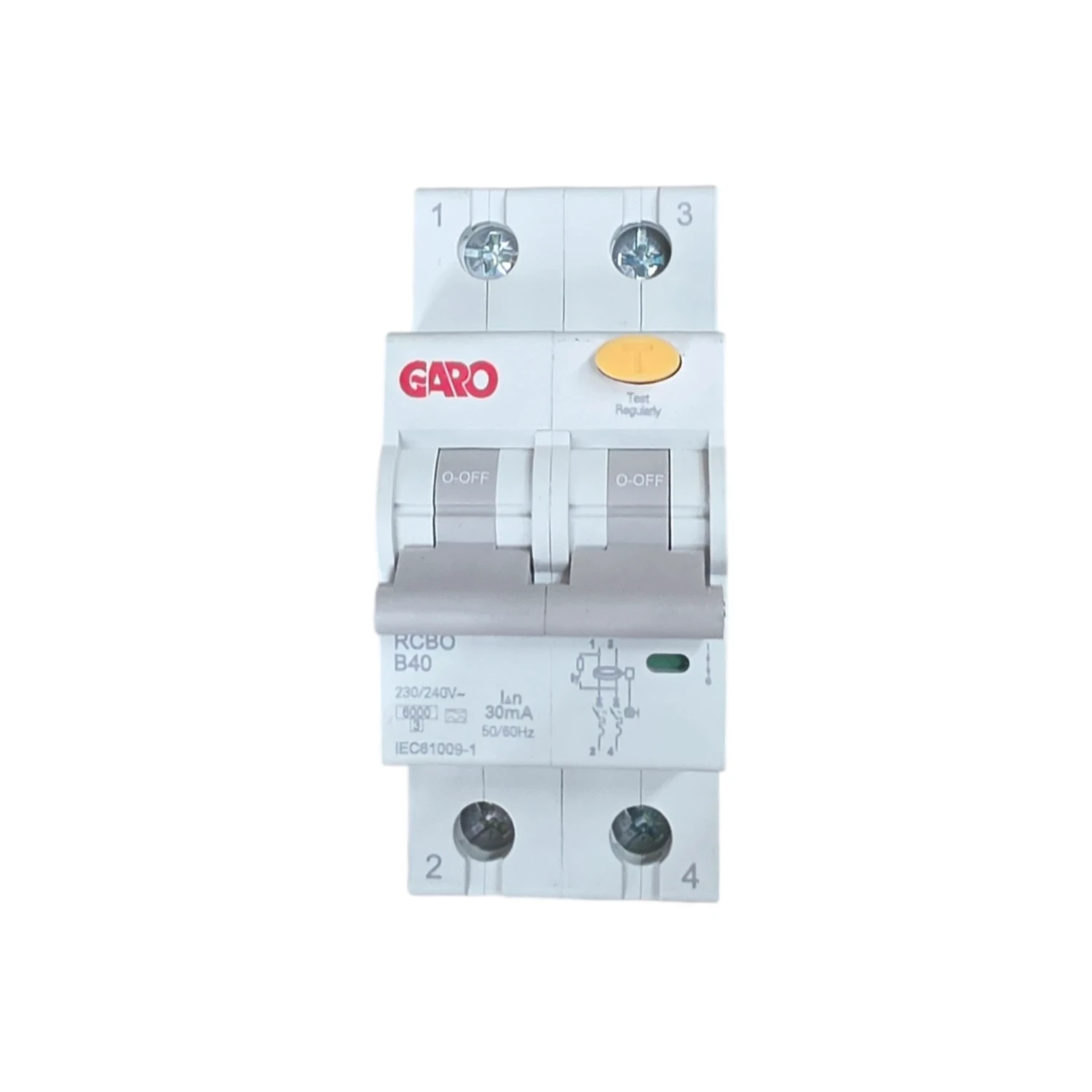

Garo RCBO 40A Type A 30mA 6kA 2P Curve B Bi-Directional

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code RCBOGRB40
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €28.05

Gross price

€34.50

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

2-pole RCBO providing combined overcurrent and residual current protection. Rated at 40A with 30mA IΔn and 6kA breaking capacity. Bi-directional operation, so load and supply terminals are interchangeable.

Suited to AC installations where Type A RCD protection is required alongside Curve B overcurrent characteristics.

  • 230V AC, 50Hz
  • Curve B tripping characteristic
  • 36mm wide, 2-module DIN rail mount
  • Terminals: 1–10mm², torque max 1.5Nm
  • Operating temp: -20°C to +40°C
Specifications

Rated Voltage

230V AC

Rated Current (In)

40A

Rated Residual Current (IΔn)

30mA

RCD Type

Type A

Breaking Capacity

6kA

Tripping Curve

B

Poles

2P

Rated Frequency

50Hz

Rated Residual Making & Breaking Capacity

1500A

Module Width

36mm

Module Count

2

Terminal Range

1–10mm²

Terminal Torque

Max 1.5Nm

Operating Temperature

-20°C to +40°C

Bi-Directional

Yes

Back-up Fuse

100A gG

Standard

IEC 61009

Documents

datasheet Garo Electrical Products RCBOGRB40 Datasheet

Garo Electrical Products
