Chint NL210 2P 63A 30mA Type B RCCB 10kA
Product Information
priced individually
Net price: €157.95
Gross price
€194.28
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items

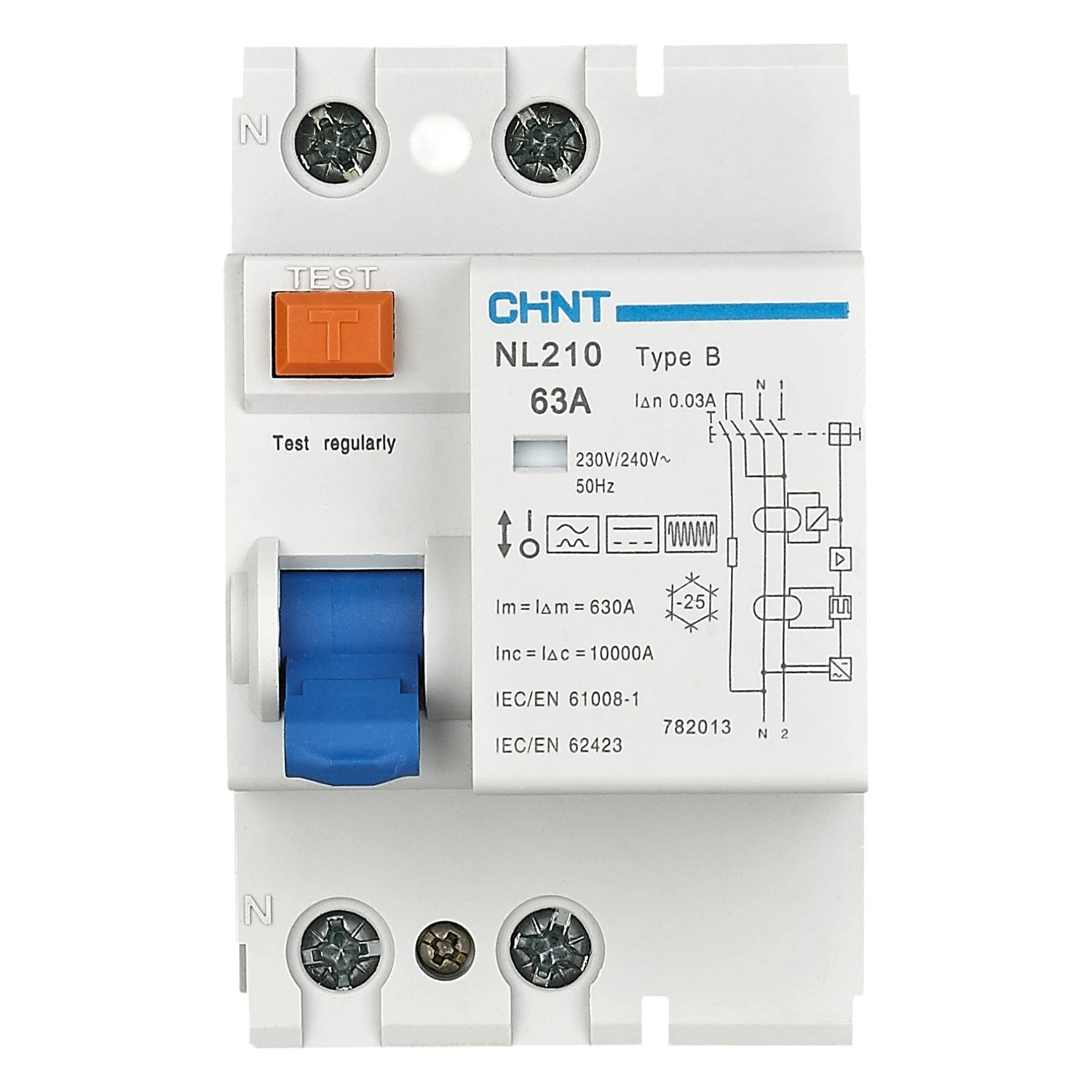

The Chint NL210 2P 63A 30mA Type B (article 782013, ref NL210-2-63-30B10/AX) is a two-pole residual current circuit breaker (RCCB) to IEC/EN 62423 and IEC/EN 61008-1. It provides residual current protection only, with no overcurrent protection.
As a Type B device it detects AC, pulsating DC and smooth DC residual currents and high frequencies up to 1000Hz, and Chint state that its Class A electromagnetic detection keeps working if the line voltage is lost. Chint list applications including renewable energy, variable frequency drives, welders, battery chargers and UPS. It is rated 63A with a 30mA residual operating current and trips in 0.1s or less; Inc = IΔc is 10kA and IΔm is 630A. It is 54mm (three modules) wide, 91mm high and 79mm deep, has a fault current indicator, accepts the AX-5 auxiliary contact, and is rated IP20 for -25°C to +40°C. Electrical and mechanical life are 4,000 operations each.
