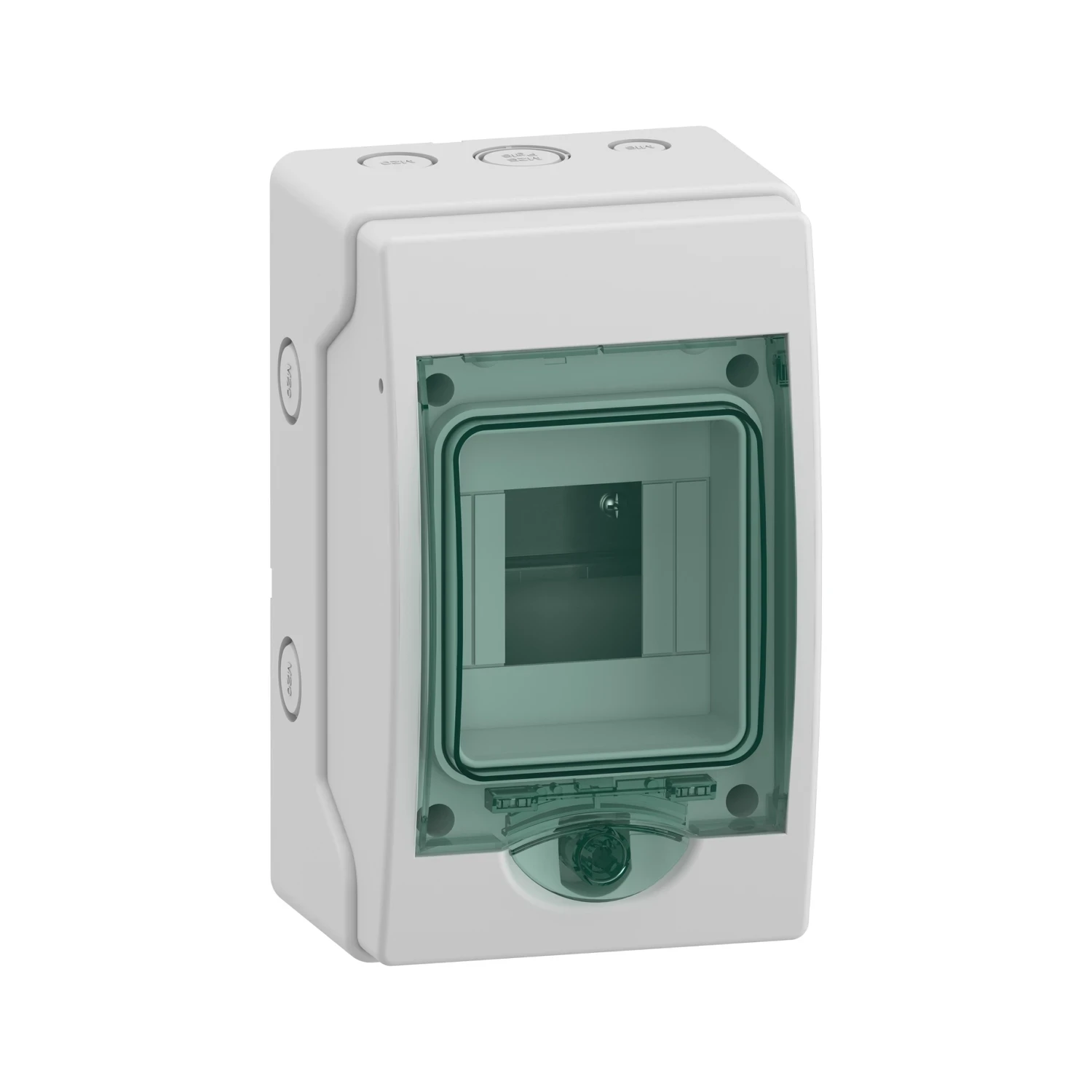

Schneider Electric Weatherproof Enclosure 4 Module 1 Row Surface Mount IP65

Photo is representative

Schneider Electric Weatherproof Enclosure 4 Module 1 Row Surface Mount IP65

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 13441
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €18.89

Gross price

€23.24

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Compact surface-mount enclosure from the Schneider Mureva Kaedra range. Takes up to 4 x 18 mm modules on a single DIN rail row. IP65 and IK09 rated — suits exposed or outdoor locations.

Comes supplied with 2 earth/neutral terminal blocks (4 outgoers each), 1 marking kit, and a transparent green door. Optional keylock available.

  • IP65 / IK09, Class II double insulation
  • 63 A rated current
  • E&N blocks: 4 x 10 mm² and 4 x 16 mm² outgoers
  • 3 pre-cut PG ISO cable entries
  • Operating temp: -25 to 60 °C
  • Dimensions: 123 x 200 x 112 mm
Specifications

IP Rating

IP65 conforming to IEC 60529

IK Rating

IK09 conforming to EN 50102

Rated Current

63 A

Electrical Insulation Class

Class II, double insulation

Modules

4 x 18 mm modules, 1 row

DIN Rail Pitches

8 x 9 mm

Enclosure Mounting

Surface

Terminal Blocks

2 x E/N blocks, 4 outgoers each — 4 x 10 mm² and 4 x 16 mm²

Cable Entries

3 pre-cut PG ISO

Front Cover

Transparent green door

Enclosure Material

Self-extinguishing polymer, RAL 7035

Fire Resistance

650 °C conforming to IEC 60695-2-1

UV Resistance

Class 3 conforming to ISO 4582:2010

Operating Temperature

-25 to 60 °C

Dimensions (W x H x D)

123 x 200 x 112 mm

Standards

IEC 60670-1, IEC 60670-24, EN 50262, IEC 60695-2-1
