A9F74120

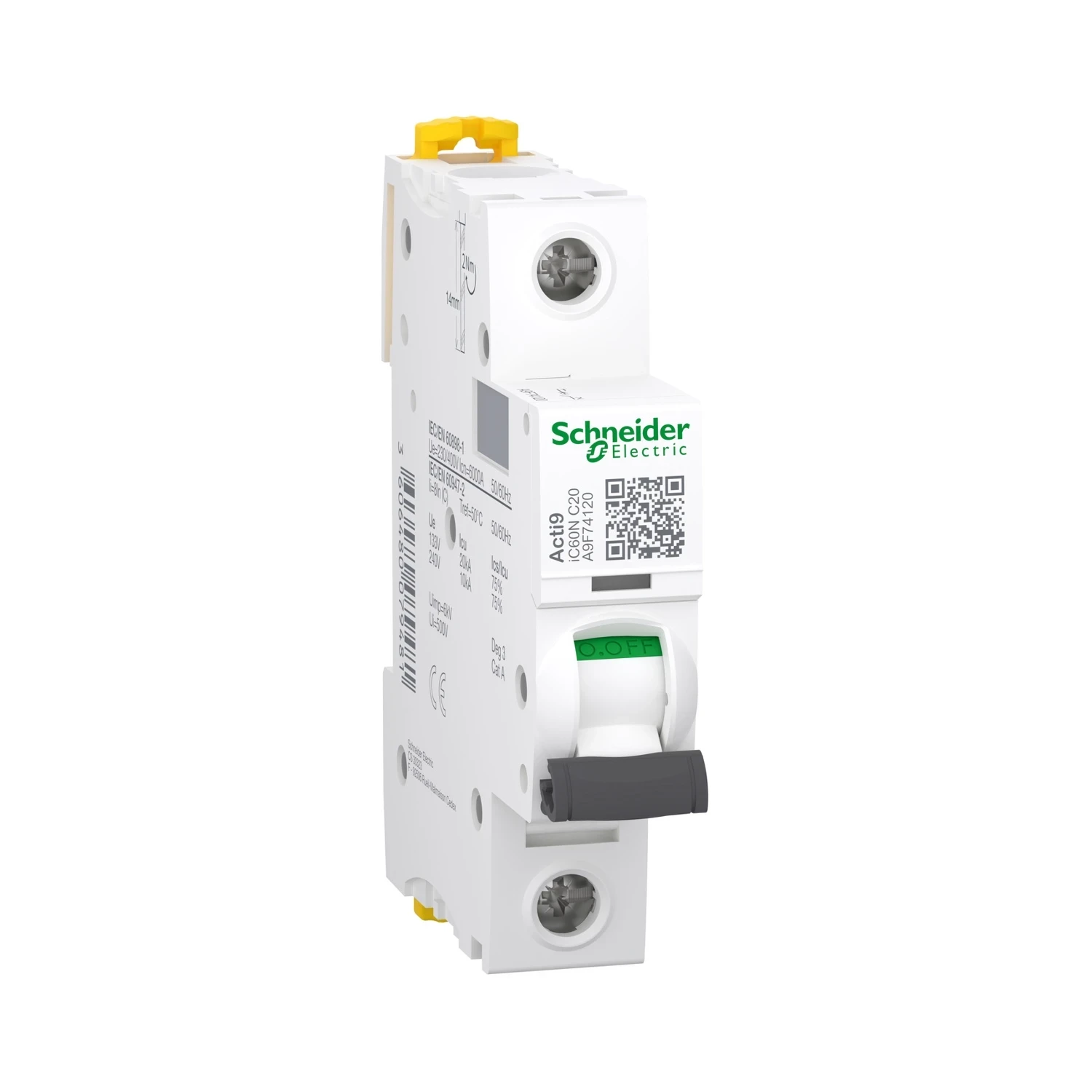

Photo is representative

Schneider Acti9 iC60N MCB 20A Type C Curve 10kA 1P Single Pole

Product Information

Stock Code A9F74120
GTIN 3606480079481
Stock status: Available for delivery

priced individually

Net price: €6.75

Gross price

€8.30

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens Mon 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Closed · Opens Mon 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: Out of stock
Closed · Opens Mon 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Schneider Acti9 iC60N single-pole MCB for distribution boards. Thermal-magnetic trip unit, Type C curve for circuits with higher inrush currents.

Rated 20A with 10kA breaking capacity at 220-240V AC. Also rated for DC applications. Clips onto 35mm DIN rail, compatible with top or bottom comb busbar.

  • In: 20A
  • Curve: C
  • Icu: 10kA at 220-240V AC
  • Icn: 6000A at 230V AC (EN/IEC 60898-1)
  • Terminals: 1-25mm² rigid copper
Specifications

Rated Current

20 A

Poles

1P

Curve Type

C

Breaking Capacity (Icu)

10 kA at 220...240 V AC

Breaking Capacity (Icn)

6000 A at 230 V AC

Rated Operational Voltage

220...240 V AC 50/60 Hz

Network Frequency

50/60 Hz

Mounting

35 mm DIN rail

Width

18 mm

Net Weight

0.215 kg

IP Rating

IP20 (IP40 in modular enclosure)

Terminal Capacity

1...25 mm² rigid copper

Standards

EN/IEC 60947-2, EN/IEC 60898-1

Mechanical Durability

20000 cycles

Documents

datasheet A9F74120
