HMC390

Photo is representative

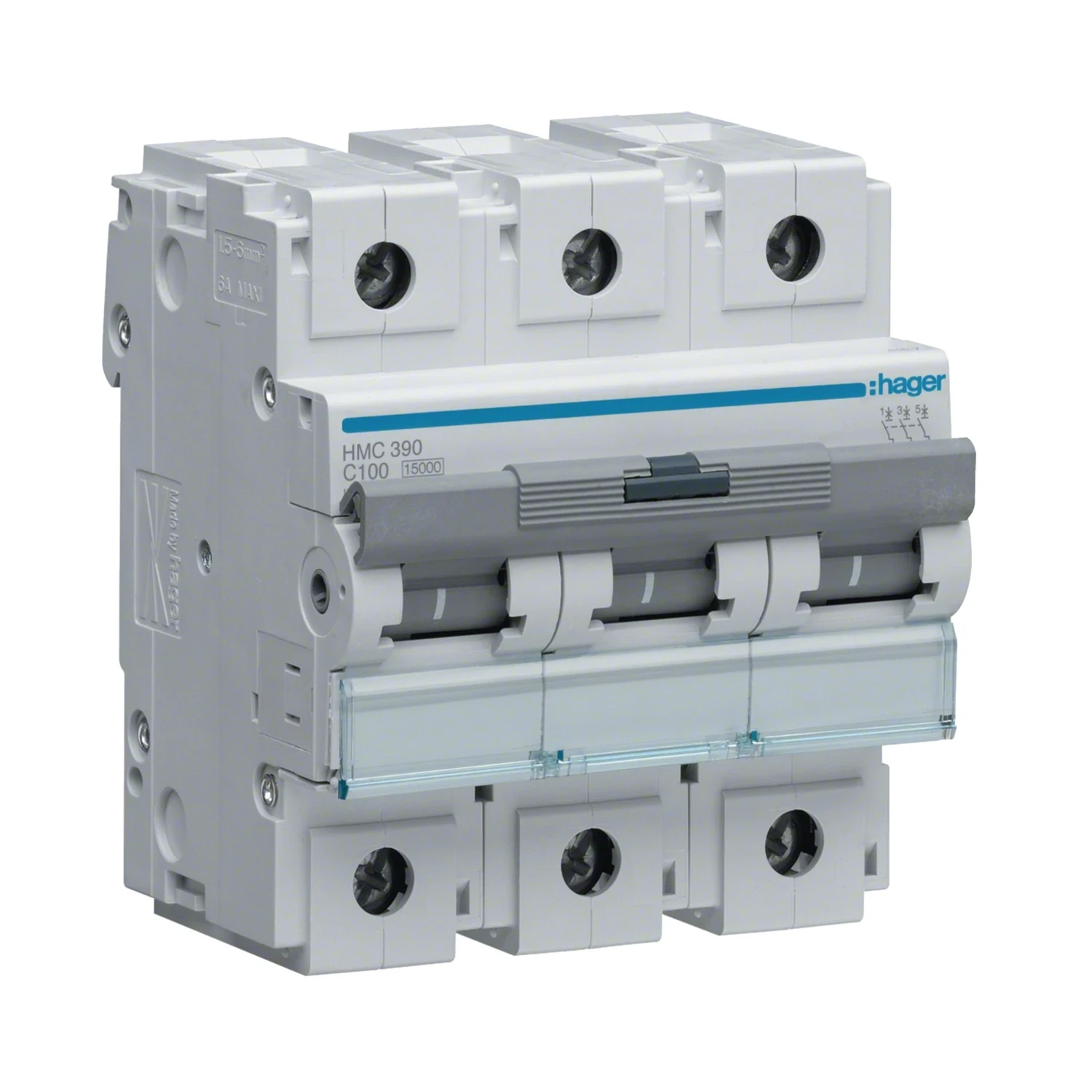

Hager MCB 3P 100A Type C 15kA Icu 415V 4.5 Module Distribution Board

Product Information

Stock Code HMC390
GTIN 3250613230203
Stock status: 9 available for delivery

priced individually

Net price: €226.11

Gross price

€278.12

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager HMC390 is a 3-pole miniature circuit breaker rated 100A with Type C curve. Used for circuit protection in distribution boards.

  • Rated current (In): 100A
  • Curve: Type C
  • Breaking capacity (Icu): 15kA
  • Poles: 3P
  • Module width: 4.5 modules
  • Rated voltage (Ue): 415V AC
Specifications

Rated Current (In)

100 A

Curve Characteristic

Type C

Breaking Capacity (Icu)

15 kA

Breaking Capacity (Icn)

30 kA

Poles

3P

Rated Operational Voltage (Ue)

415 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Number of Modules

4.5

Operating Temperature

-25 to 70 °C

Terminal Type

Screw terminal

Dimensions (H x W x D)

90 x 80 x 70 mm

Documents

datasheet HMC390
