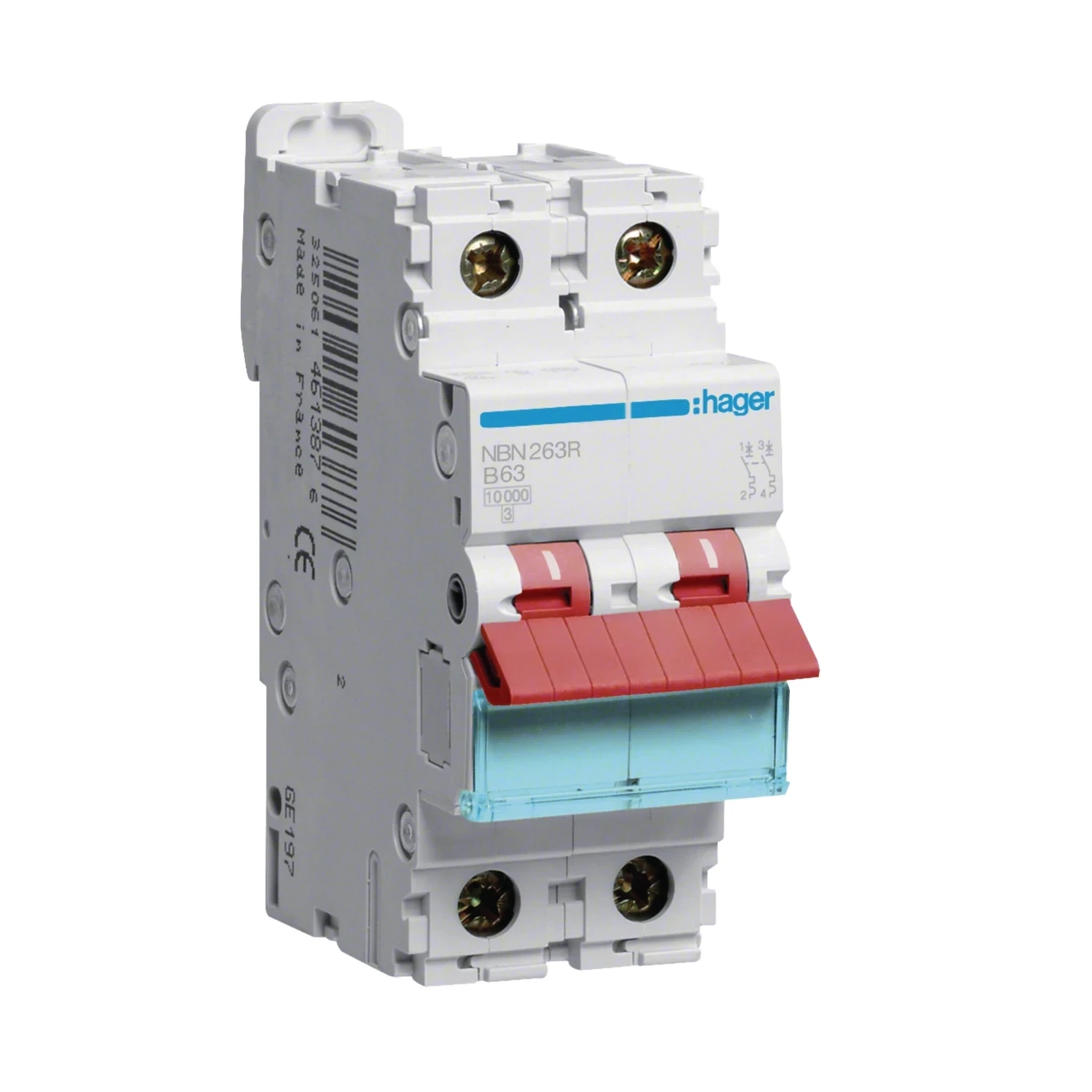

NBN263R

Photo is representative

Hager 2P MCB 63A Type B Curve 10kA Icn 400V AC 2 Module IP20

Product Information

Stock Code NBN263R
GTIN 3250614617966
Stock status: 6 available for delivery

priced individually

More arriving soon

Net price: €45.23

Gross price

€55.64

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager NBN263R is a 2-pole MCB with a 63A rating and Type B curve. Used for overcurrent protection in AC installations up to 400V, fits standard DIN rail distribution boards.

  • 63A rated current, Type B curve
  • 10kA Icn to IEC 60898-1 (20kA at 230V)
  • 2 module width, screw terminal connection
  • IP20, operating temp -25°C to 70°C
  • Complies with IEC 60898-1 and IEC 60947-2
Specifications

Poles

2P

Rated Current

63 A

Curve Type

B

Rated Operational Voltage

400 V

Frequency

50 - 60 Hz

Rated Short-Circuit Breaking Capacity Icn (IEC 60898-1)

10 kA

Rated Ultimate Short-Circuit Breaking Capacity Icu (IEC 60947-2)

15 kA

IP Rating

IP20

Operating Temperature

-25 to 70 °C

Connection Type

Screw terminal

Cross-Section (Massive Conductors)

1 - 35 mm²

Dimensions (H x W x D)

83 x 35 x 70 mm

Number of Modules

2

Documents

datasheet NBN263R
