NCN202A

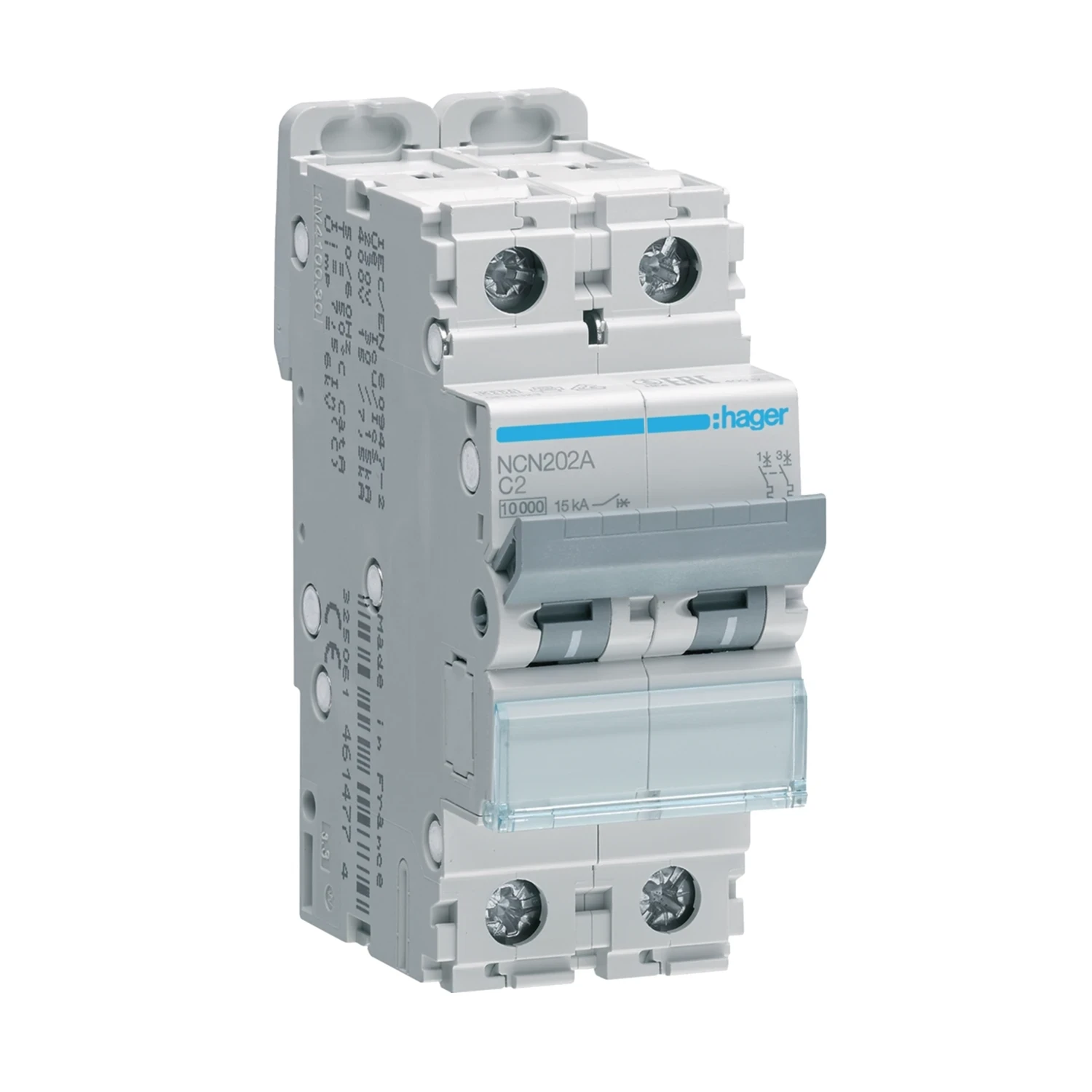

Photo is representative

Hager 2P MCB 2A Type C Curve 10kA Breaking Capacity 2 Module DIN Rail

Product Information

Stock Code NCN202A
GTIN 3250614615610
Stock status: Available for delivery

priced individually

Net price: €42.95

Gross price

€52.83

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: 4 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: 8 in stock
Closed · Opens Tue 8:00 AM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Hager NCN202A is a 2-pole MCB for overcurrent protection on AC distribution boards. Type C curve suits circuits with moderate inrush current, such as small motor loads or fluorescent lighting.

  • 2A rated current (In)
  • Type C tripping curve
  • 10kA Icn (IEC 60898-1) / 15kA Icu (IEC 60947-2)
  • Rated operational voltage 400V, insulation voltage 500V
  • 2 module width, DIN rail mount, IP20
Specifications

Poles

2P

Rated Current (In)

2 A

Tripping Curve

C

Breaking Capacity Icn (IEC 60898-1)

10 kA

Breaking Capacity Icu (IEC 60947-2)

15 kA

Rated Operational Voltage (Ue)

400 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Number of Modules

2

Dimensions (H x W x D)

83 mm x 35 mm x 70 mm

Terminal Type

Screw terminal
