HMB190

Photo is representative

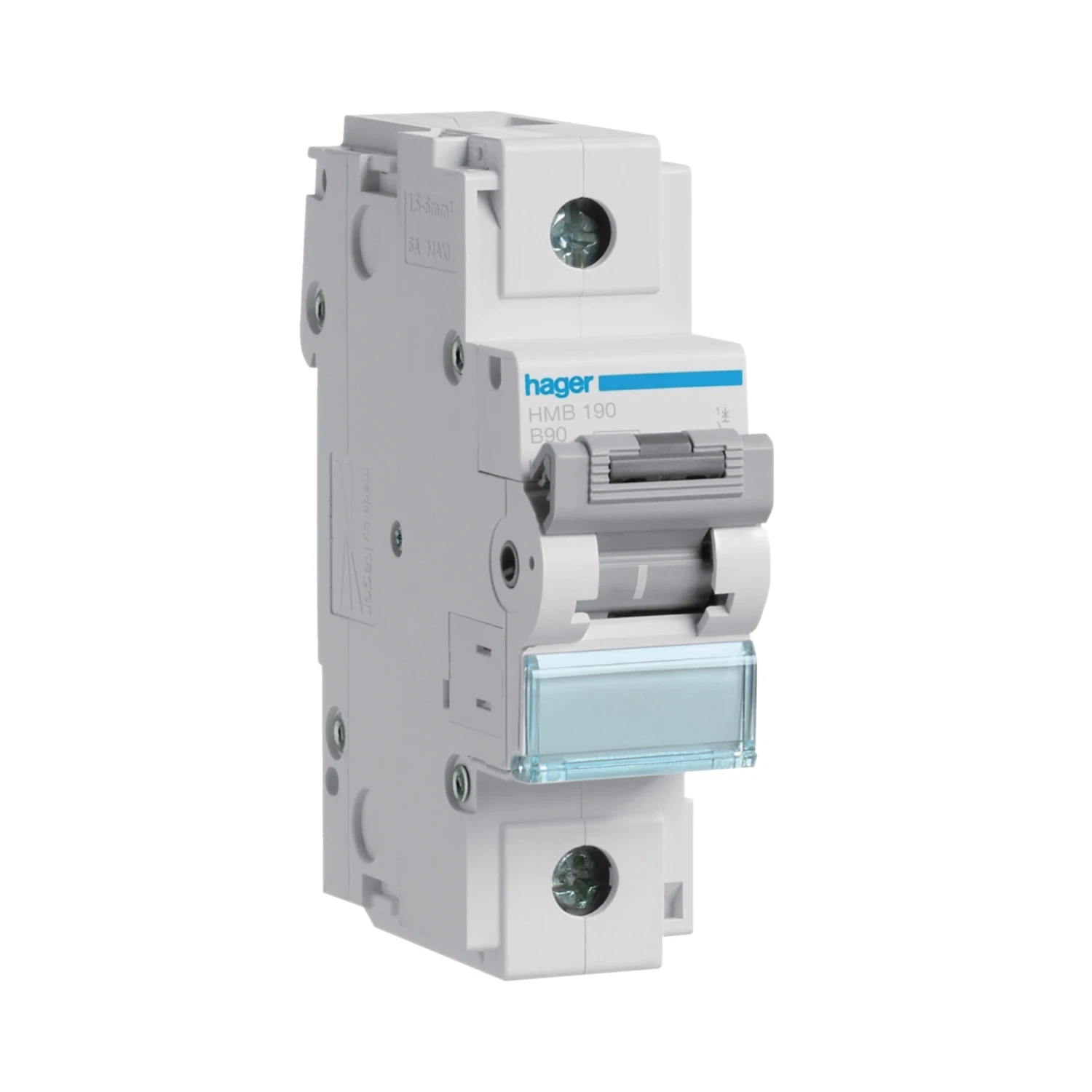

Hager MCB 100A Type B Curve 15kA 1P 240-415V AC DIN Rail Mount

Product Information

Stock Code HMB190
GTIN 3250613230029
Stock status: Available for delivery

priced individually

Net price: €98.02

Gross price

€120.56

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager HMB190 is a single-pole MCB rated 100A with B-curve tripping characteristic. Built for AC supply networks up to 415V.

  • Rated current: 100A
  • Curve: B
  • Breaking capacity (Icn): 15kA
  • Poles: 1P
  • Module width: 1.5 modules
  • IP20
Specifications

Poles

1P

Rated Current

100 A

Curve Type

B

Rated Short-Circuit Breaking Capacity (Icn)

15 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

15 kA

Rated Operational Voltage

240 - 415 V

Frequency

50 - 60 Hz

IP Rating

IP20

Number of Modules

1.50

Operating Temperature

-25 - 70 °C

Rated Insulation Voltage

500 V

Rated Impulse Withstand Voltage

6000 V

Connection Type

Screw terminal (Top and Bottom)

Dimensions (H x W x D)

90 mm x 27 mm x 70 mm

Documents

datasheet HMB190

Hager Electrical Distribution
