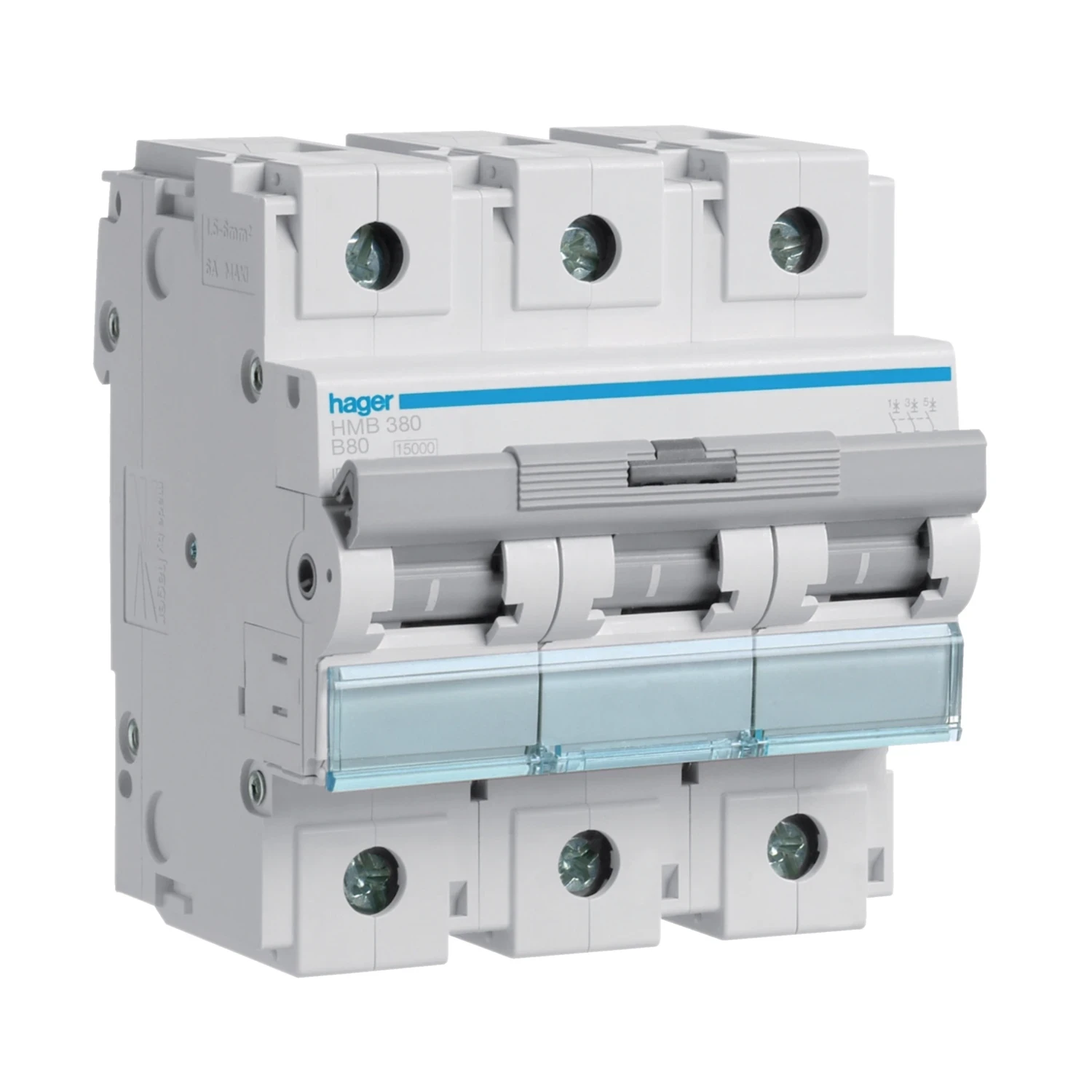

HMB380

Photo is representative

Hager 3P MCB 80A Type B Curve 15kA 415V AC 4.5 Module DIN Rail

Product Information

Stock Code HMB380
GTIN —
Stock status: Available for delivery

priced individually

Net price: €133.44

Gross price

€164.13

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager three-pole MCB for three-phase distribution boards and industrial installations. 80A rated current, B-curve trip characteristic, 15kA breaking capacity to IEC 60898-1 at 400V AC.

  • Poles: 3P
  • Rated current: 80A
  • Curve: Type B
  • Breaking capacity: 15kA (Icn 400V AC, IEC 60898-1)
  • Voltage: 415V AC, 50-60Hz
  • Module width: 4.5 modules
  • Terminal: Screw, 1-70mm² rigid / 1-50mm² flexible
Specifications

Poles

3P

Rated Current (In)

80 A

Curve Type

B

Rated Operational Voltage (Ue)

415 V

Frequency

50-60 Hz

Breaking Capacity Icn 400V AC (IEC 60898-1)

15 kA

Breaking Capacity Icn 230V AC (IEC 60898-1)

30 kA

Rated Ultimate Breaking Capacity Icu AC (IEC 60947-2)

15 kA

IP Rating

IP20

Module Width

4.5 modules

Terminal Type

Screw terminal

Cross-Section Rigid Conductor

1-70 mm²

Cross-Section Flexible Conductor

1-50 mm²

Operating Temperature

-25 to 70 °C

Dimensions (H x W x D)

90 x 80 x 70 mm

Documents

datasheet HMB380
