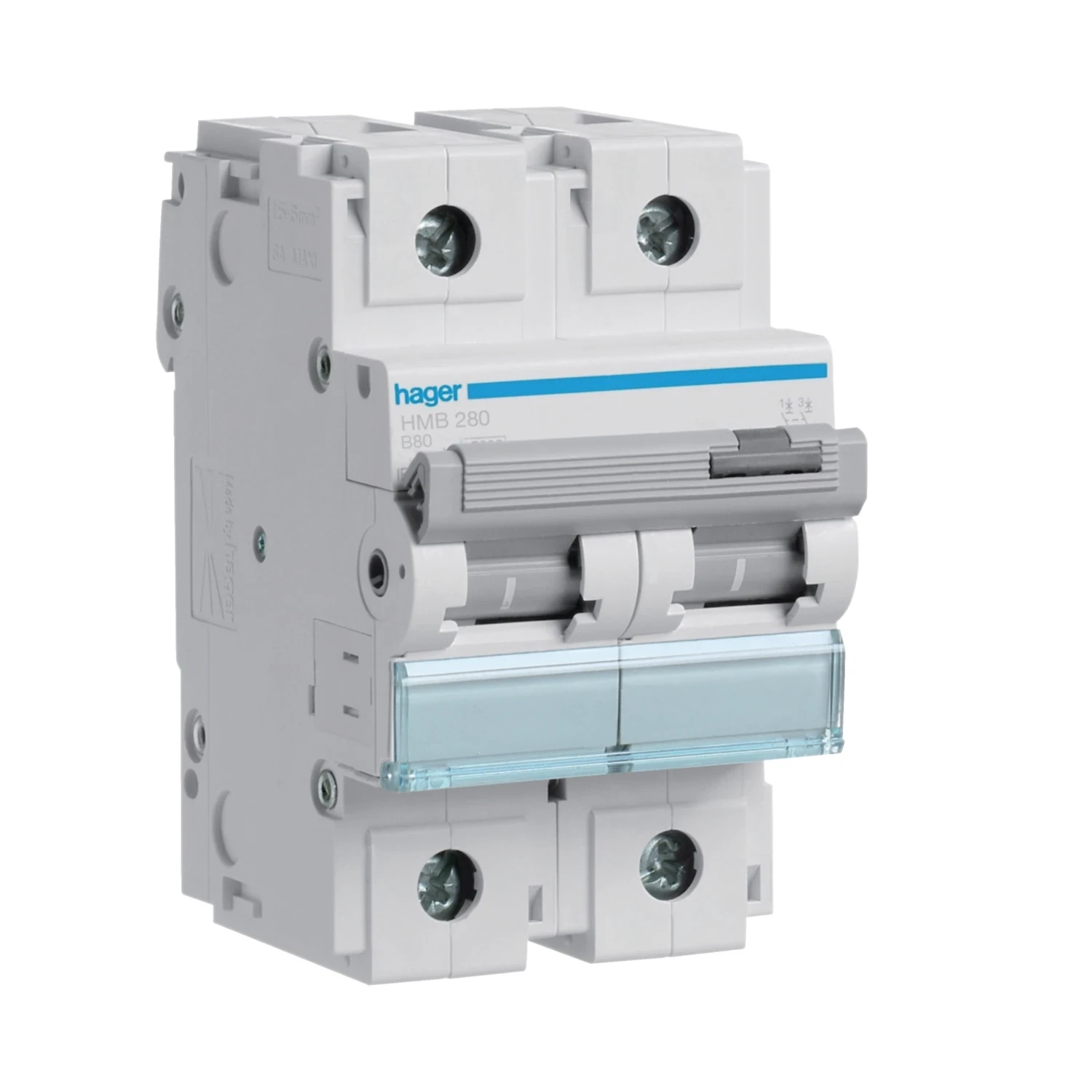

Hager HMB280 80A 2P B-Curve MCB 15kA 3 Module

Photo is representative

Hager HMB280 80A 2P B-Curve MCB 15kA 3 Module

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code HMB280
GTIN —
Stock status: 7 available for delivery

priced individually

More arriving soon

Net price: €81.31

Gross price

€100.01

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Hager HMB280 is a 2-pole MCB rated 80A with B-curve characteristics. Designed for general-purpose circuit protection in AC 50/60Hz systems.

Main specs: - 80A rated current at 30°C - 15kA breaking capacity (IEC 60898-1 @ 230V AC) - 415V operational voltage, 500V insulation rated - B-curve trip characteristics - 3 DIN modules, screw terminals top and bottom - Operating range -25°C to 70°C - IP20 ingress protection

Specifications

Product Code

HMB280

Poles

2P

Current Rating

80A

Trip Curve

B

Rated Operational Voltage

415V AC

Insulation Voltage

500V

Breaking Capacity (IEC 60898-1)

15kA @ 230V AC

Service Breaking Capacity Ics

7.5kA AC

Frequency

50–60 Hz

Operating Temperature

-25°C to 70°C

IP Rating

IP20

Module Width

3 modules (53mm)

Terminals

Screw terminal, top and bottom

Cable Range

1–70mm² (rigid), 1–50mm² (flexible)

Documents

datasheet Hager HMB280 Datasheet
