HMB180

Photo is representative

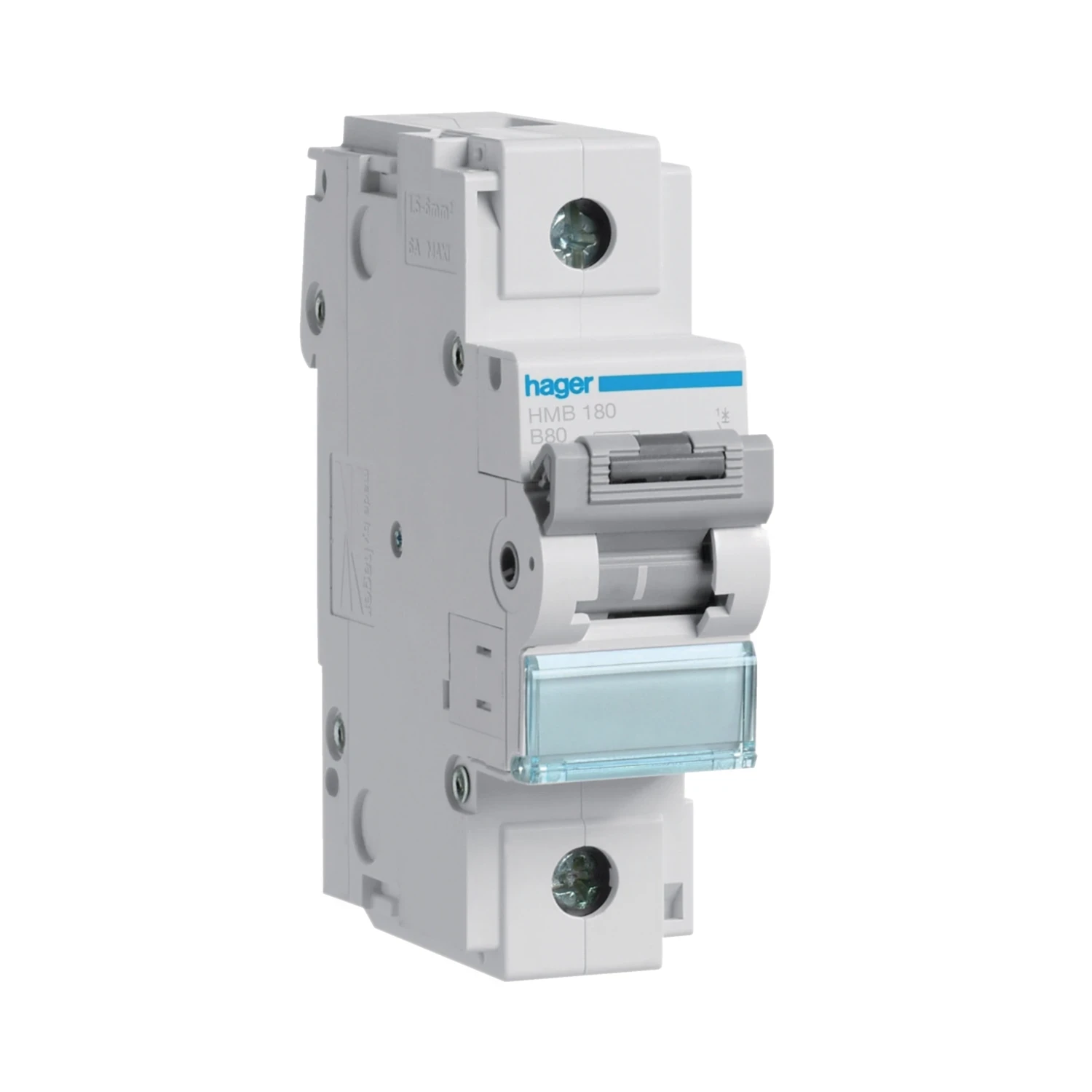

Hager MCB 80A Type B Curve 15kA Breaking Capacity 1P 230V AC DIN Rail

Product Information

Stock Code HMB180
GTIN —
Stock status: Available for delivery

priced individually

Net price: €87.24

Gross price

€107.30

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Single-pole MCB from Hager, Type B curve, rated 80A at 230V AC. DIN rail mounted, 1.5 module width, screw terminal connections top and bottom.

Used for general overcurrent protection in AC distribution boards where a Type B trip characteristic is needed.

  • Rated current: 80 A
  • Curve type: B
  • Breaking capacity (Icn): 15 kA
  • Poles: 1P
  • Module width: 1.5 modules
Specifications

Rated Current (In)

80 A

Curve Type

B

Poles

1P

Breaking Capacity (Icn) IEC 60898-1

15 kA

Breaking Capacity (Icu) IEC 60947-2

15 kA

Rated Operational Voltage (Ue)

240 - 415 V

Rated Insulation Voltage (Ui)

500 V

Rated Impulse Withstand Voltage (Uimp)

6000 V

Frequency

50 - 60 Hz

Number of Modules

1.50

IP Rating

IP20

Operating Temperature

-25 - 70 °C

Terminal Type

Screw terminal

Conductor Cross-section (Rigid)

1 - 70 mm²

Conductor Cross-section (Flexible)

1 - 50 mm²

Documents

datasheet HMB180

Hager Electrical Distribution
