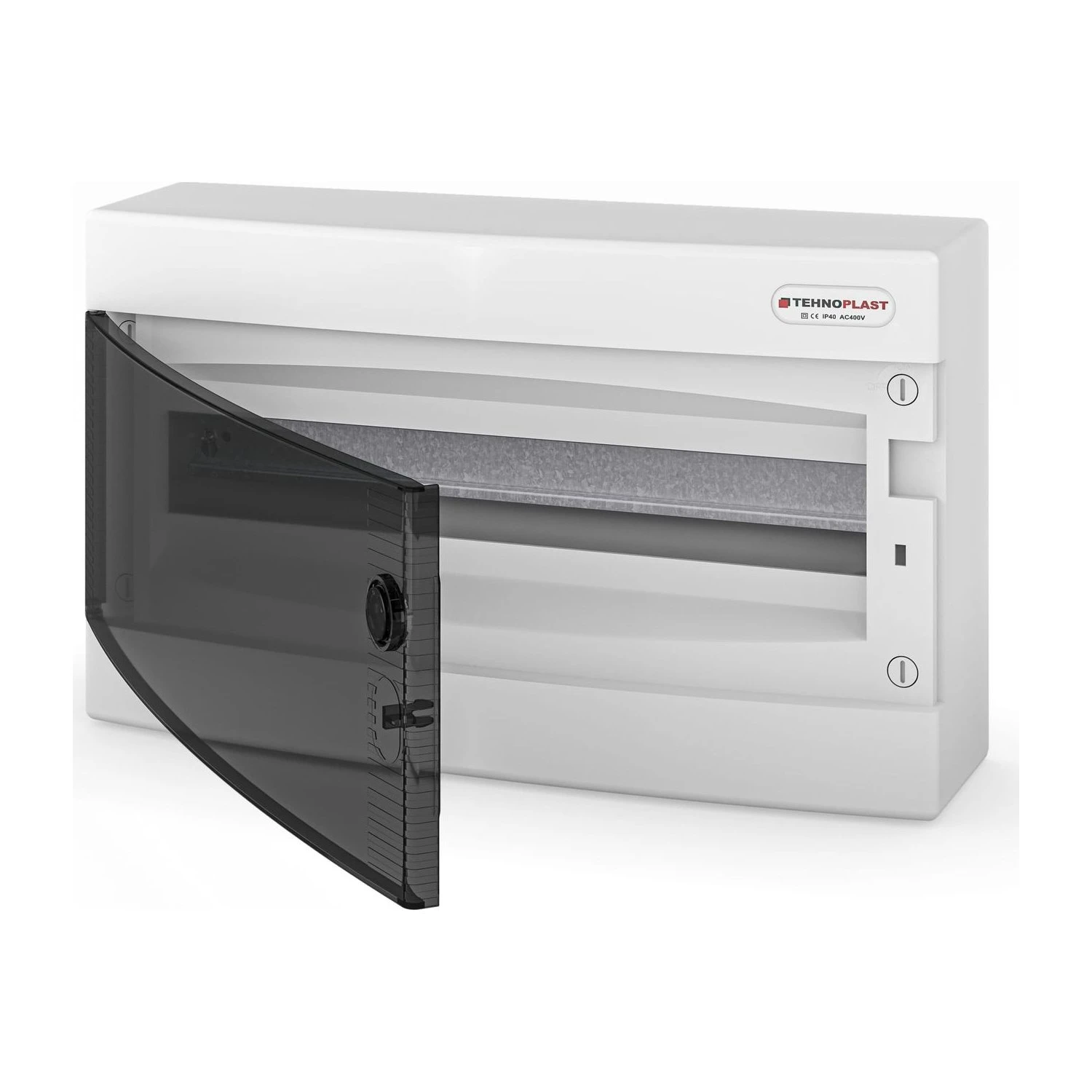

Photo is representative
Chint Surface Consumer Unit 1 Row 18 Module 100A Isolator SPD IP40
Product Information
priced individually
Net price: €193.92
Gross price
€238.53
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Chint surface consumer unit with 18 DIN-rail modules across 1 row (1 x 18 modules). It is supplied complete with a 100A main isolator, 1 RCD, 2 RCBOs, 5 MCBs and an SPD.
The enclosure is a Tehnoplast Series C (N 18 C) for surface mounting: IP40, ABS in white RAL 9003, halogen free, rated AC 400V and made to IEC 60670. It comes assembled with DIN rail, insulated neutral and earth terminal bars (2 x 13), covers for unused space and installation accessories (screws and MCB labels). The door is ABS and has a cap that can be swapped for an optional key lock. The front cover fixes to the base with quarter-turn plastic screws.
- Overall size: 236 x 396 x 112 mm (H x W x D)
- Operating temperature: -25 °C to +60 °C (enclosure)
- Glow-wire test: 650 °C (enclosure), 960 °C (terminal holder)
