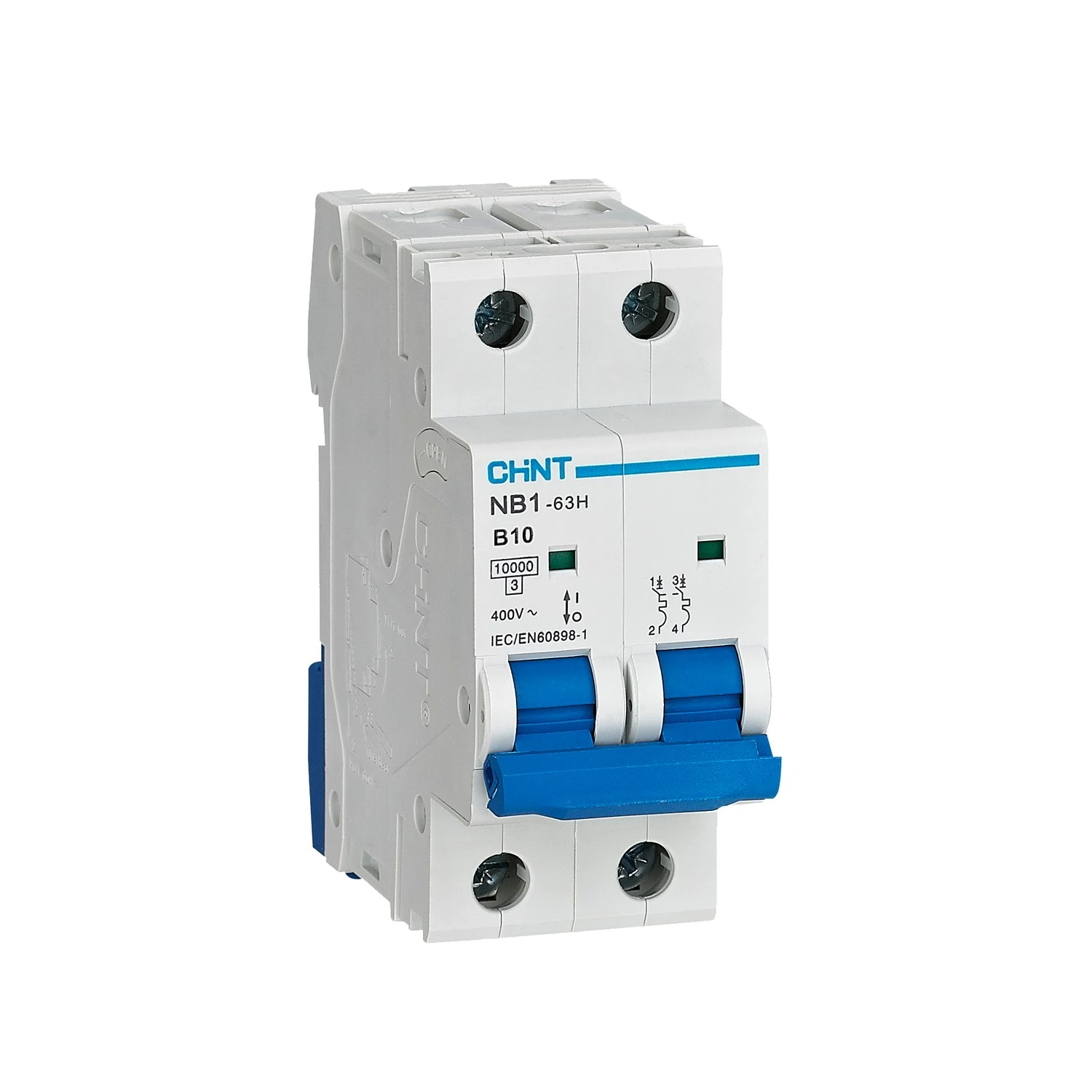

Photo is representative
Chint NB1-63H 2P 10A Type B 10kA MCB
Product Information
priced individually
Net price: €5.94
Gross price
€7.31
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
The Chint NB1-63H 2P B10 (article 179810) is a two-pole miniature circuit breaker rated at 10A with a Type B tripping characteristic (3-5 x In), providing overload and short-circuit protection, switching and isolation in residential, commercial and industrial distribution.
It has a rated breaking capacity of 10kA to IEC/EN 60898-1 with energy limiting class 3, and is also rated to IEC/EN 60947-2. Rated voltage is 230/400V AC at 50/60Hz, with a 4kV impulse withstand. The breaker clips onto 35mm DIN rail and is 36mm, two modules wide; the terminals take cable up to 25mm² or pin/U-type busbar up to 10mm², fed from top or bottom, at 2.0Nm. A contact position indicator is fitted, the front is IP20, and the operating range is -35°C to +70°C. Electrical life is 10,000 operations and mechanical life 20,000.
