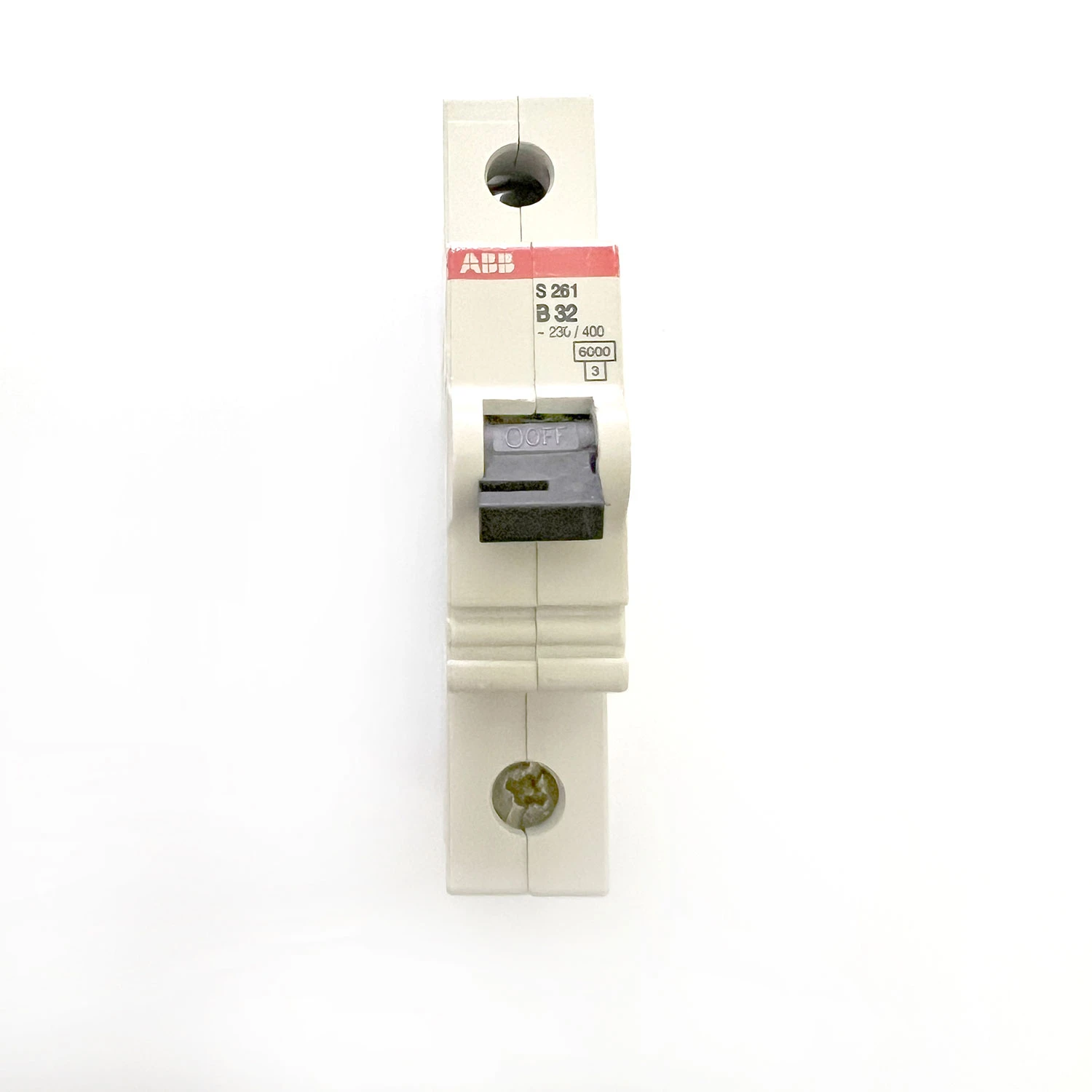

ABB S261 1P 32A Type B 6kA MCB – System pro M Compact
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: €6.18
Gross price
€7.60
Mon‐Fri · Subject to order volume Free delivery available 28 day returns
The ABB S261-B32 is a single-pole miniature circuit breaker from the System pro M Compact range, rated at 32 A with a Type B tripping characteristic. It provides overcurrent and short-circuit protection for final circuits in domestic and commercial distribution boards, with a rated breaking capacity of 6 kA to IEC/EN 60898-1. The device operates at 230⁄400 V AC, 50⁄60 Hz and mounts on standard 35 mm DIN rail, occupying a single 17.5 mm module. Screw terminals accept conductors up to 25 mm². A Type B curve trips on fault currents of approximately three to five times rated current, suiting resistive and lightly inductive loads such as lighting and socket circuits. It is rated for operating temperatures from −25 °C to +55 °C. The S261 is a legacy ABB order code, superseded by the S201 series.
