475W Back-Contact Solar Panel | Dual Glass Bifacial | 23.3% Efficiency
Product Information
priced individually
Net price: €102.90
Gross price
€126.57
This item is not available to order online. Contact us to arrange supply.

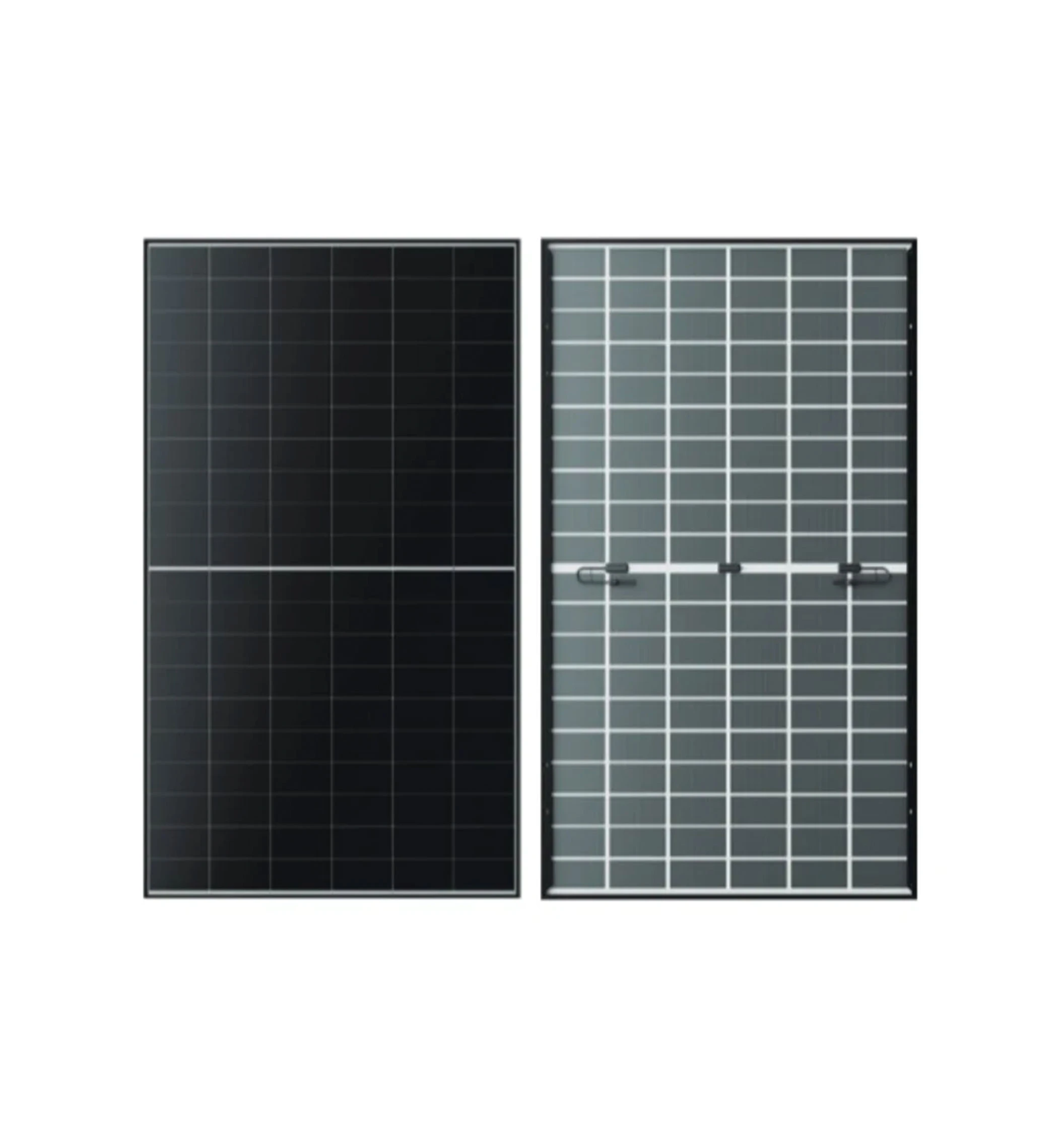

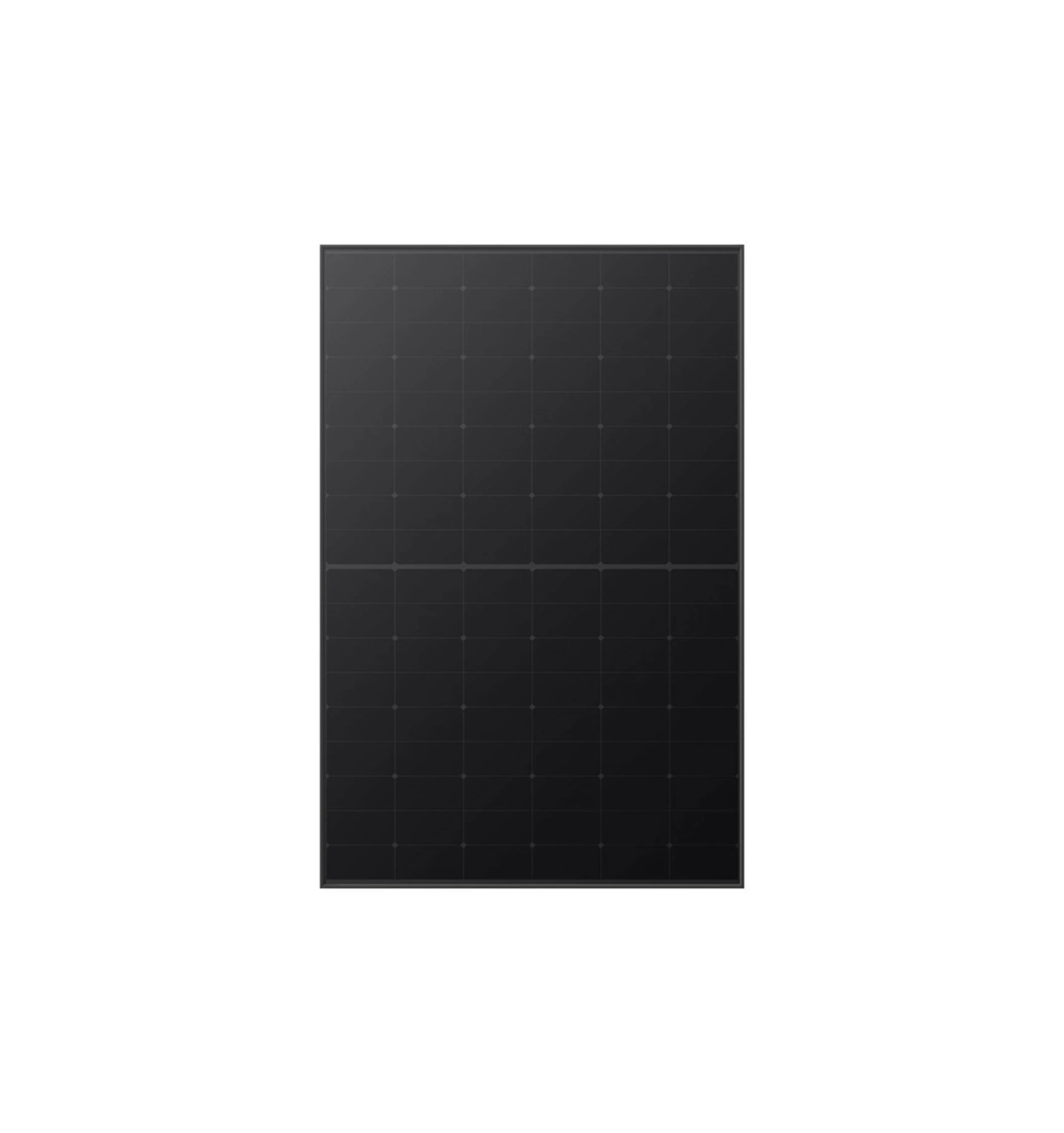

A 475W dual-glass bifacial PV module built on N-type back-contact (HPBC 2.0) cells for residential and light commercial rooftops.
At STC (AM1.5, 1000W/m², 25°C): - Pmax 475W, module efficiency 23.3%, power tolerance 0~+3% - Voc 40.42V, Isc 14.88A, Vmp 33.40V, Imp 14.23A - Temperature coefficient of Pmax -0.260%/°C, Voc -0.200%/°C - Maximum system voltage DC1500V (IEC), maximum series fuse 30A
Construction is 108 cells (6×18) laminated between 2.0mm and 1.6mm semi-tempered glass in a black anodized aluminium frame, 1800×1134×30mm at 23.5kg, with an IP68 junction box and 70±5% bifaciality. Static loading is 5400Pa front and 2400Pa rear; nominal operating cell temperature is 45±2°C and the operational range is -40°C to +85°C.
Certified to IEC 61215 and IEC 61730, with a 15-year materials and processing warranty and a 30-year linear power output warranty to 88.85%.
