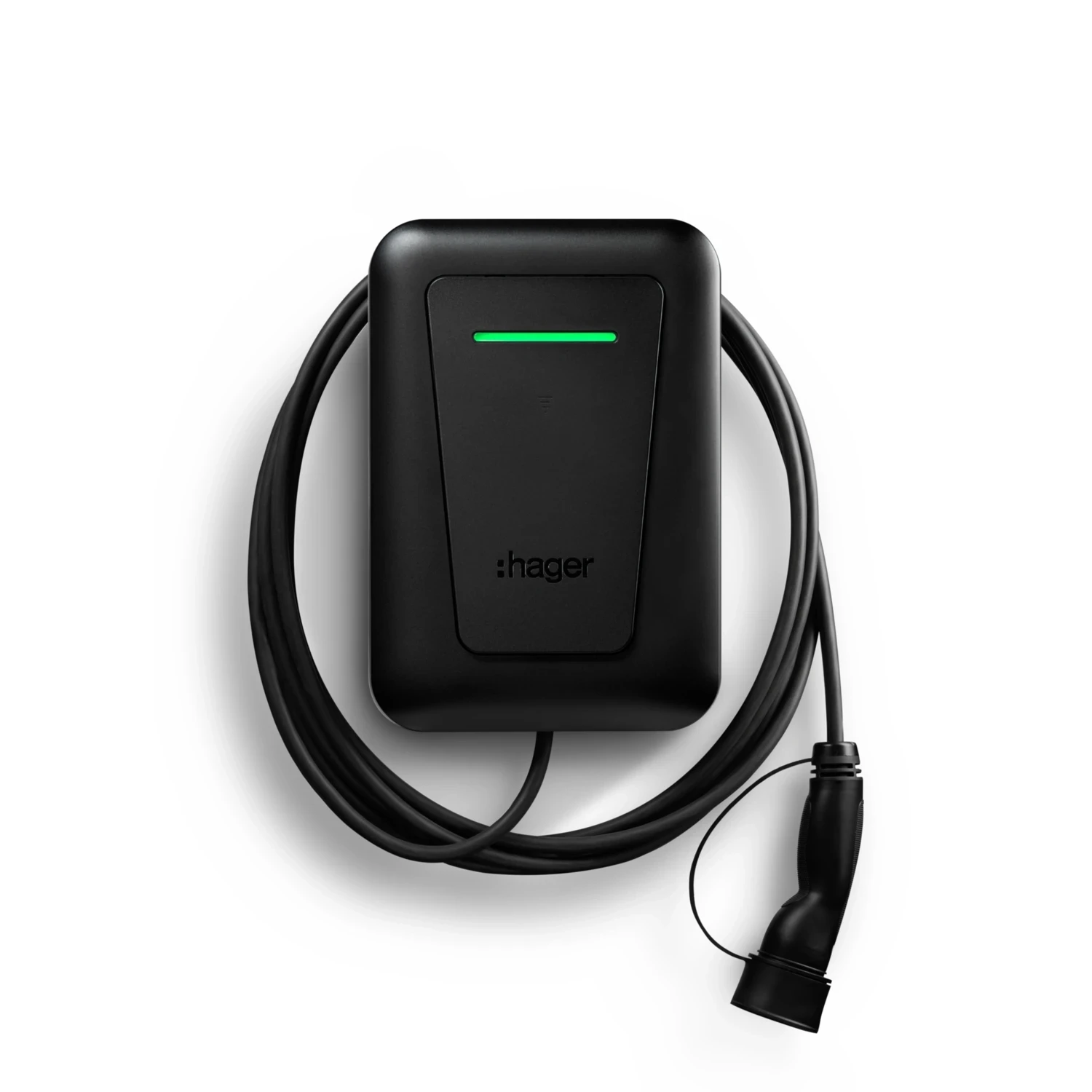

Hager witty one 7kW Single-Phase Tethered Type 2 EV Charger, 6.5m, CT

Product Information

Stock Code XVU107CCT-MO
GTIN 3250610139059
Stock status: 2 available for delivery

priced individually

Net price: €450.00

Gross price

€553.50

Branch Stock

Monaghan

Stock status: 2 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume
Free delivery available 28 day returns

The Hager witty one XVU107CCT-MO is a 7kW single-phase EVSE with a 6.5m tethered Type 2 cable and integrated cable holder, rated 230V 32A on a 1P+N supply. The CT board is fitted from the factory, so the unit supports dynamic load management and PV charging without a further accessory. Integrated 6mA DC residual current detection means the charge point works downstream of a Type A or Type F RCD. An RFID reader handles user authorisation and a front light indicator shows charge status on the screenless fascia. Commissioning is done over Bluetooth with the Hager installer app, and the charge point runs on the Monta smart-charging platform for scheduling, load balancing, remote firmware updates and solar charging. The UV-resistant IP55 IK10 housing suits indoor or outdoor wall mounting, and a pedestal accessory is available where there is no wall.

Specifications

Connector

Type 2 tethered cable, 6.5m, with integrated cable holder

Charging Output

7kW single-phase, 230V, 32A (1P+N)

Load Management

CT board fitted - dynamic load balancing and PV charging

DC Fault Protection

Integrated 6mA DC residual current detection; use with Type A or Type F RCD

Access Control

Integrated RFID reader for badge authorisation

Status Indication

Light indicator, screenless front

Smart Platform

Monta smart-charging platform; Hager app and web app

Commissioning

Bluetooth installer app

Enclosure Rating

IP55, IK10, UV-resistant housing - indoor or outdoor

Operating Temperature

-25°C to +50°C

Dimensions

370 x 250 x 150mm (H x W x D)
