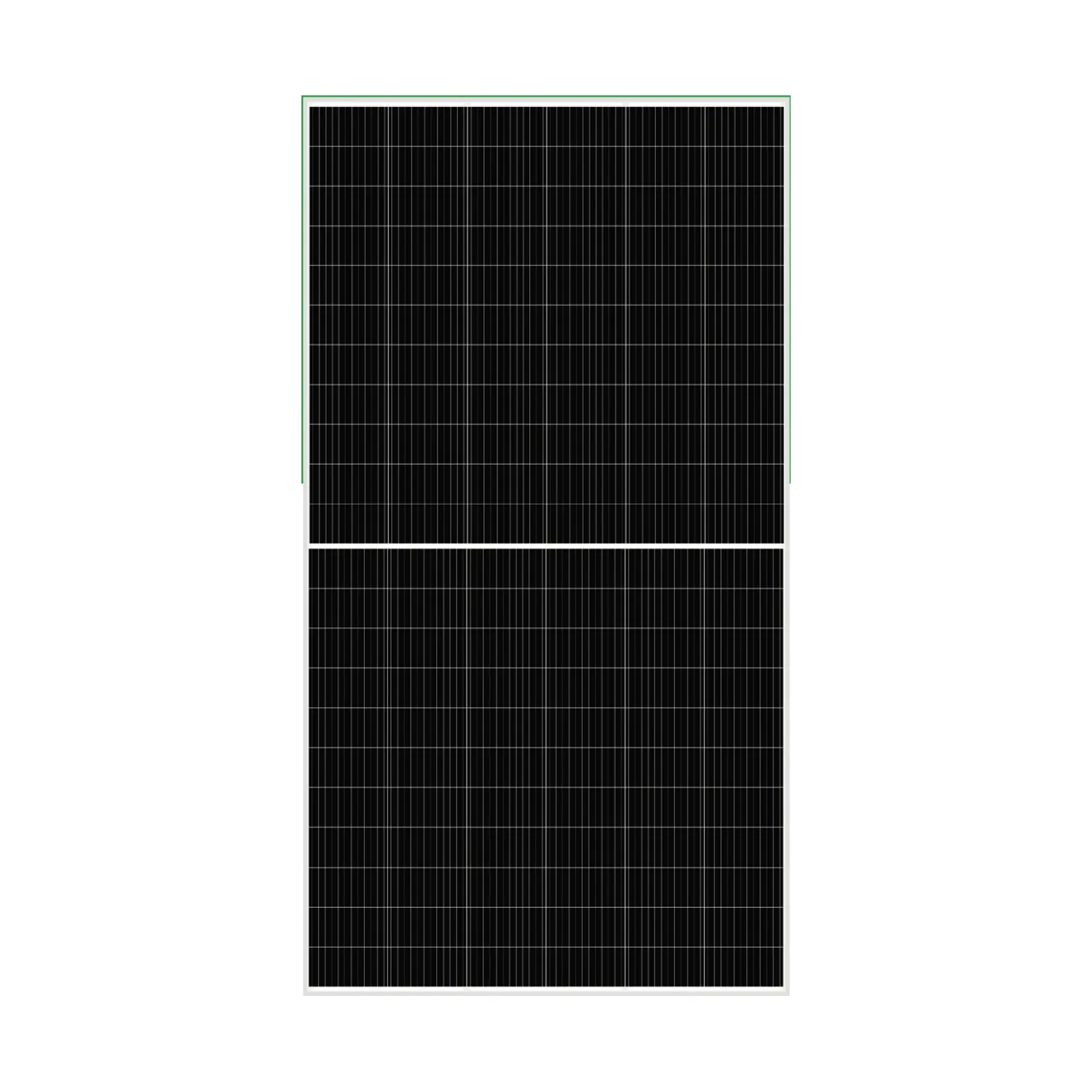

Photo is representative
645W Back-Contact Solar Panel | Dual Glass Bifacial | Anti-Dust Frame | 23.88%
Product Information
priced individually
Net price: €120.50
Gross price
€148.21
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
A 645W dual-glass bifacial PV module built on N-type HPBC 2.0 back-contact cells, with a frame designed to reduce dust accumulation, for commercial roof, carport and ground-mount arrays.
At STC (AM1.5, 1000W/m², 25°C): - Pmax 645W, module efficiency 23.88%, power tolerance 0~+3% - Voc 49.62V, Isc 16.46A, Vmp 40.88V, Imp 15.78A - Temperature coefficient of Pmax -0.260%/°C, Voc -0.200%/°C, Isc +0.050%/°C - Maximum system voltage DC1500V (IEC), maximum series fuse 35A
Construction is 132 cells (6×22) between two 2.0mm semi-tempered glass sheets in an anodized aluminium frame, 2382×1134×30mm, with an IP68 junction box carrying three diodes and 4mm² output cable. Static loading is 5400Pa front and 2400Pa rear, with an IEC Class C fire rating.
Certified to IEC 61215 and IEC 61730, with a 15-year product warranty and a 30-year linear power warranty (1% first-year, 0.35%/year after).
