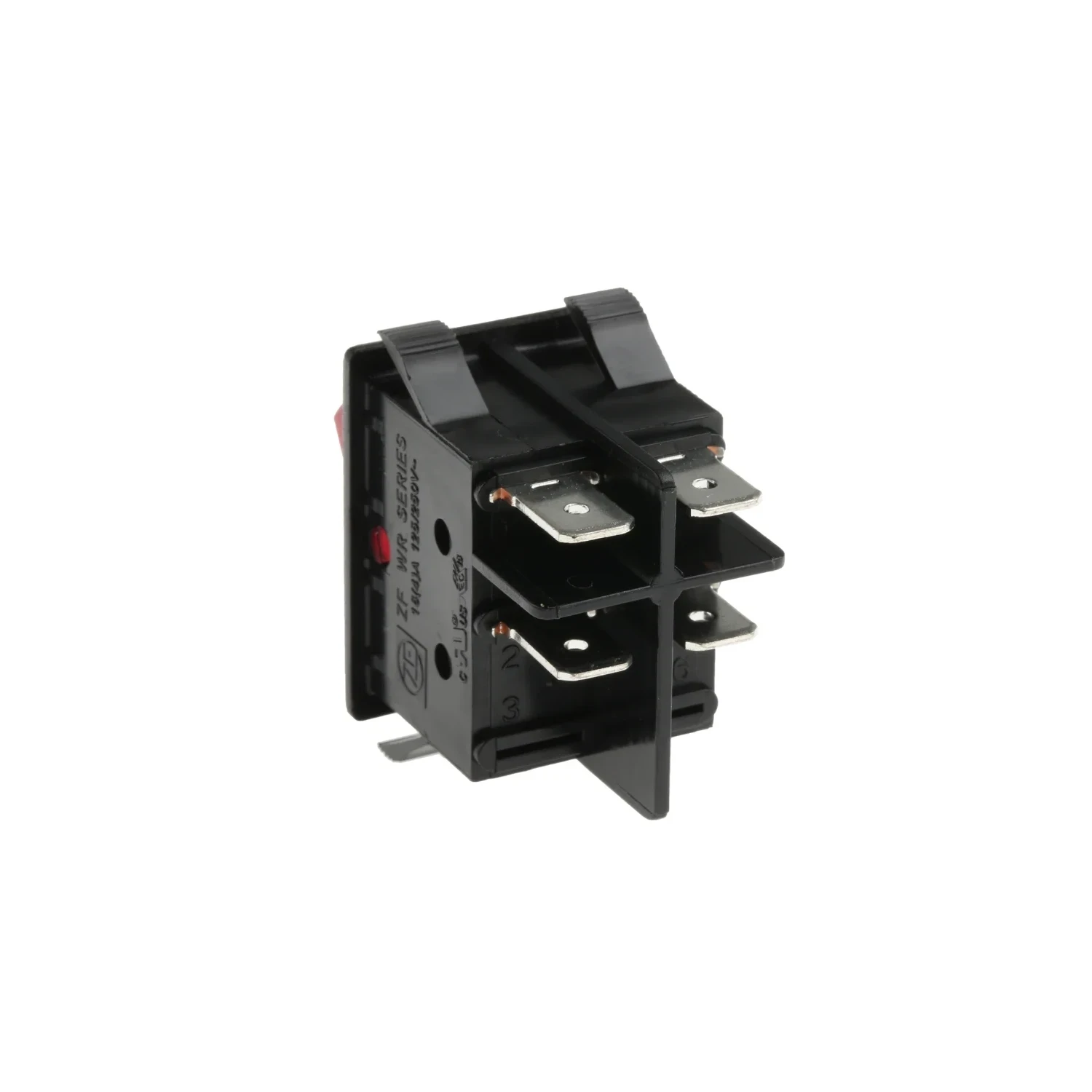

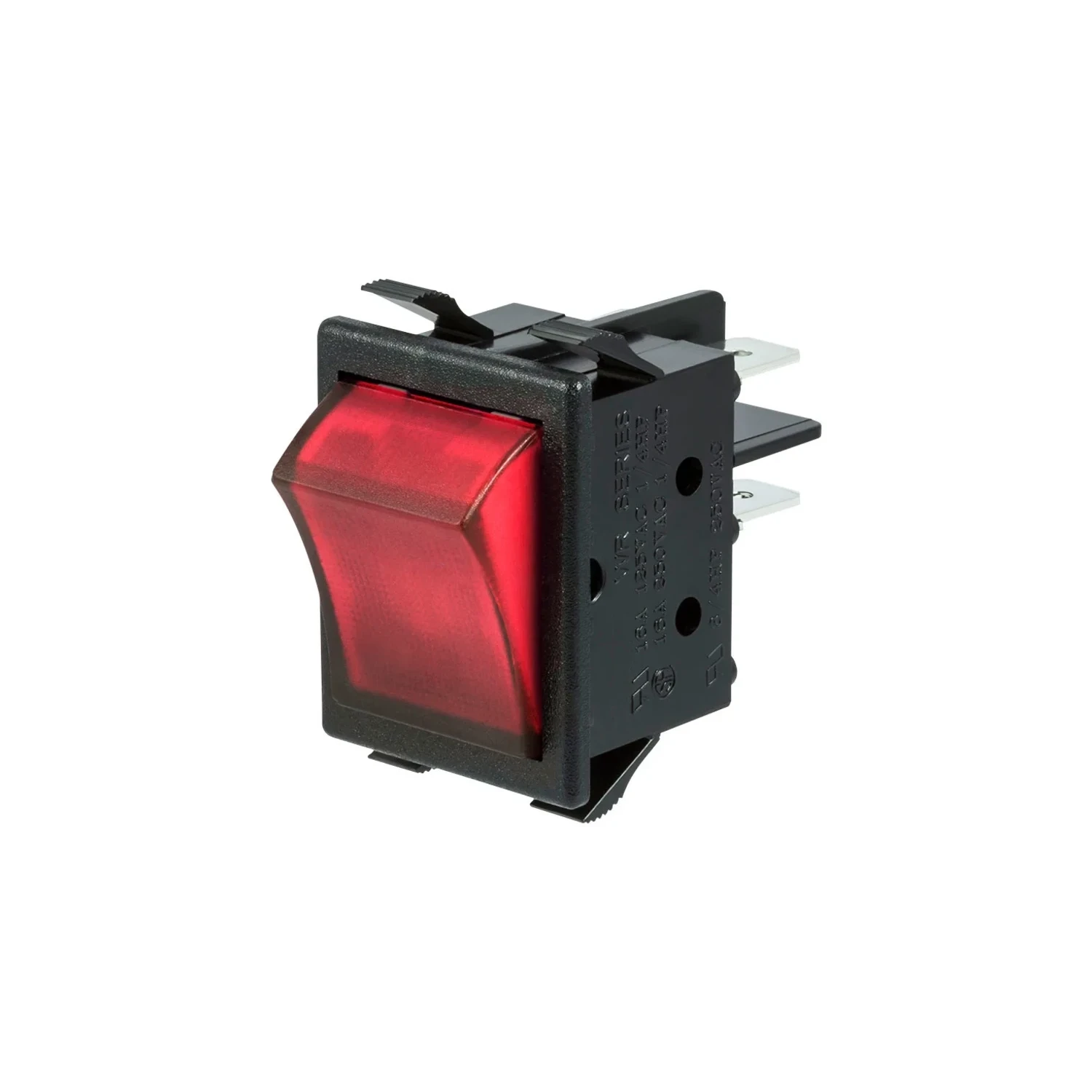

ZF Rocker Switch On-Off DPST 16A 250V Red Illuminated IP67 Panel Mount, 4406890

Product Information

Stock Code 4406890
GTIN —
Stock status: Available for delivery

priced individually

Net price: €7.31

Gross price

€8.99

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

DPST rocker switch with red illumination, for panel-mount control fascias and machine start/stop indication. Sealed to IP67 for washdown areas and outdoor enclosures. Quick-connect terminals, rectangular actuator, polyester housing.

  • DPST, on-off switching
  • 16A rated contact current
  • Panel cutout 30.2 x 22mm
  • IP67 sealed
  • Mechanical life 50,000 operations
Specifications

Contact Configuration

DPST

Switch Operation

On-Off

Housing Material

Polyester

Panel Cutout Size

30.2 x 22 mm

Switch Contact Current

16A

Illuminated

Yes

Actuator Colour

Red

Terminal Type

Quick Connect

Mount Type

Panel

IP Rating

IP67

Actuator Style

Rectangular

Contact DC Voltage

32V dc

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

Standards/Approvals

IEC, VDE, UL, RoHS

Mechanical Life

50000 Operations
