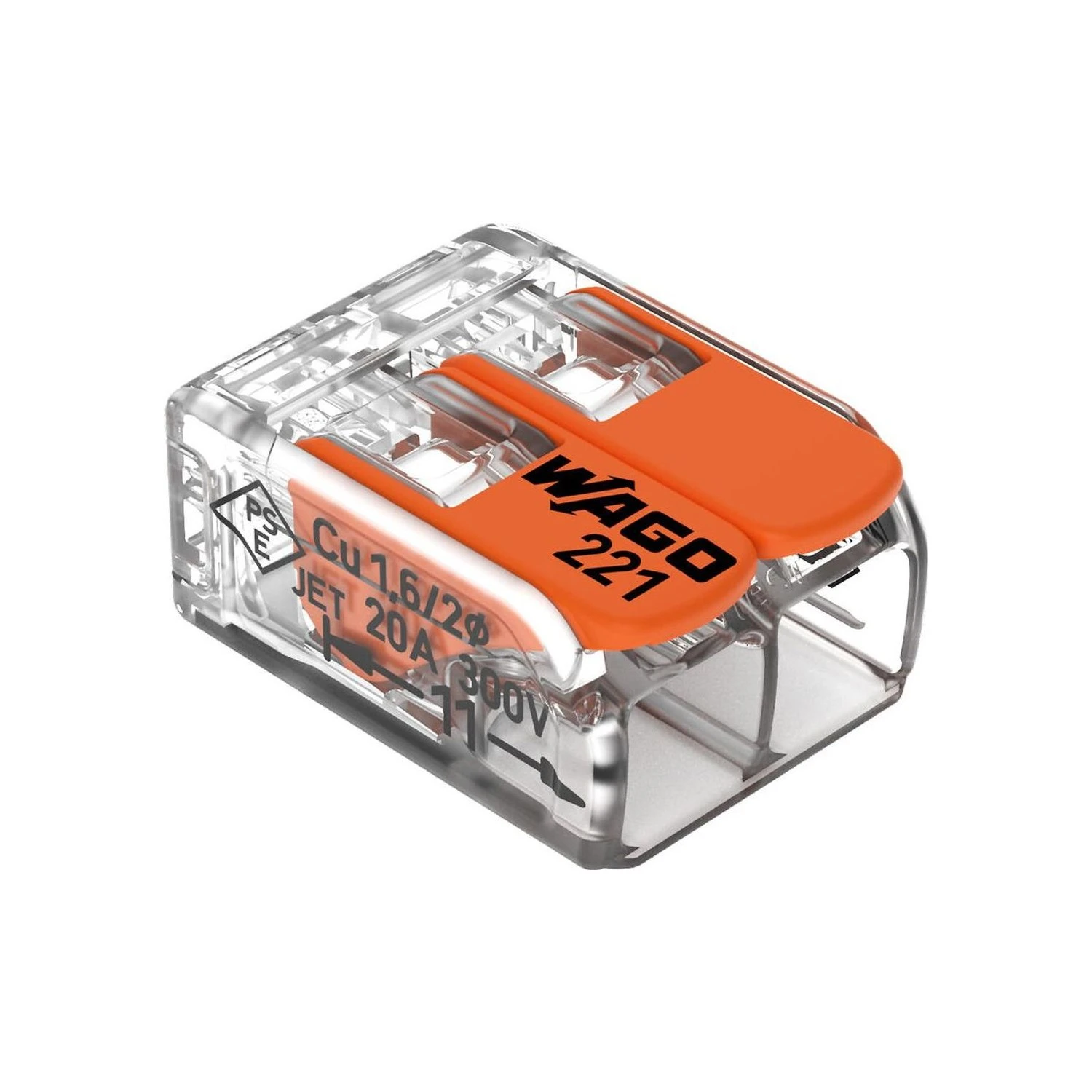

WAGO 221-412 2-conductor lever connector

Photo is representative

WAGO 221-412 Lever Connector 2 Conductor 0.14-4mm² 32A - Box of 100

Product Information

Stock Code 221412
EAN 4050821808435
Stock status: Available for delivery

box of 100

Net price: €42.40

Gross price

€52.15

Branch Stock

Monaghan

Stock status: In stock
Closed · Opens Fri 8:00 AM
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Closed · Opens Fri 8:00 AM
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: In stock
Closed · Opens Fri 8:00 AM
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri
Free delivery over €61.50
Typically shipped within 1-2 working days
28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

WAGO 221-412 2-conductor splicing connector with levers, from the 221 Series. CAGE CLAMP connection opened and closed by lever, so solid, stranded and fine-stranded copper conductors can be connected without ferrules. The transparent housing lets you check each conductor is fully inserted.

  • Clamping units: 2 (1 potential)
  • Solid conductors: 0.2-4mm²
  • Stranded conductors: 0.2-4mm²
  • Fine-stranded (flex) conductors: 0.14-4mm²
  • Strip length: 11mm
  • Rated voltage / current (IEC): 450V / 32A
  • Rated impulse withstand voltage: 4kV
  • Temperature marking: T85 (max +85°C surrounding air)
  • Dimensions (W x H x D): 13.1 x 8.3 x 18.6mm
  • Sold as a box of 100 connectors
Specifications

Sold As

Box of 100

Manufacturer Part No.

221-412

Clamping Units

2

Connection Technology

CAGE CLAMP, lever actuated

Solid Conductor

0.2-4mm²

Stranded Conductor

0.2-4mm²

Fine-Stranded (Flex) Conductor

0.14-4mm²

Strip Length

11mm

Rated Voltage (IEC)

450V

Rated Current (IEC)

32A

Rated Impulse Withstand Voltage

4kV

Temperature Rating

T85 (max +85°C surrounding air)

Housing

Transparent polycarbonate, orange levers

Flammability (UL94)

V2

Dimensions (W x H x D)

13.1 x 8.3 x 18.6mm

Weight

1.7g
