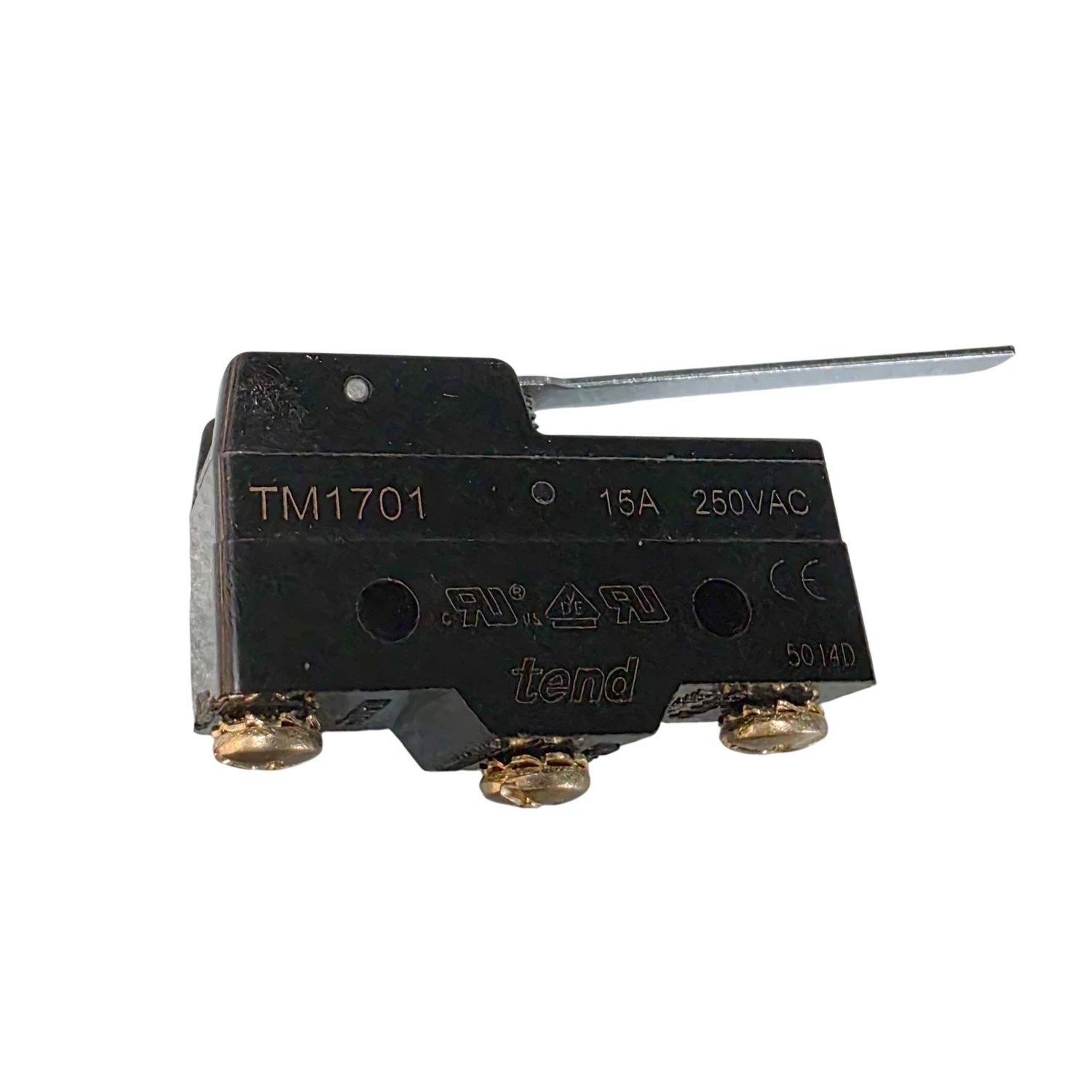

TM1701

Photo is representative

TM1701 Micro Switch 63mm Long Hinge Lever 15A 250VAC Screw Terminal

Product Information

Stock Code TM1701
GTIN —
Stock status: Available for delivery

priced individually

Net price: €11.70

Gross price

€14.39

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The TM1701 is a general-purpose micro switch with a long hinge lever actuator, built for mechanical actuation in control panels.

Used for interlocks, position sensing and limit switching where a longer lever throw is needed.

  • Actuator: Long hinge lever, R63.5mm, t=1mm
  • Rated: 15A at 125⁄250 VAC, 0.4A at 125 VDC, 0.2A at 250 VDC
  • Terminal: Screw terminal
  • Degree of protection: IP00
  • Operating temperature: -25°C to +80°C
  • Mechanical life: 20,000,000 operations min.
Specifications

Rated Current / Voltage

15 A at 125 VAC / 250 VAC, 0.4 A at 125 VDC, 0.2 A at 250 VDC

Actuator Type

Long hinge lever (R63.5 mm, t=1 mm)

Terminal Type

Screw terminal

Degree of Protection

IP00

Operating Ambient Temperature

-25°C to +80°C

Mechanical Life

20,000,000 operations min.

Electrical Life

500,000 operations min.

Insulation Resistance

100 MΩ min. (at 500 VDC)

Weight

Approx. 22 g to 58 g
