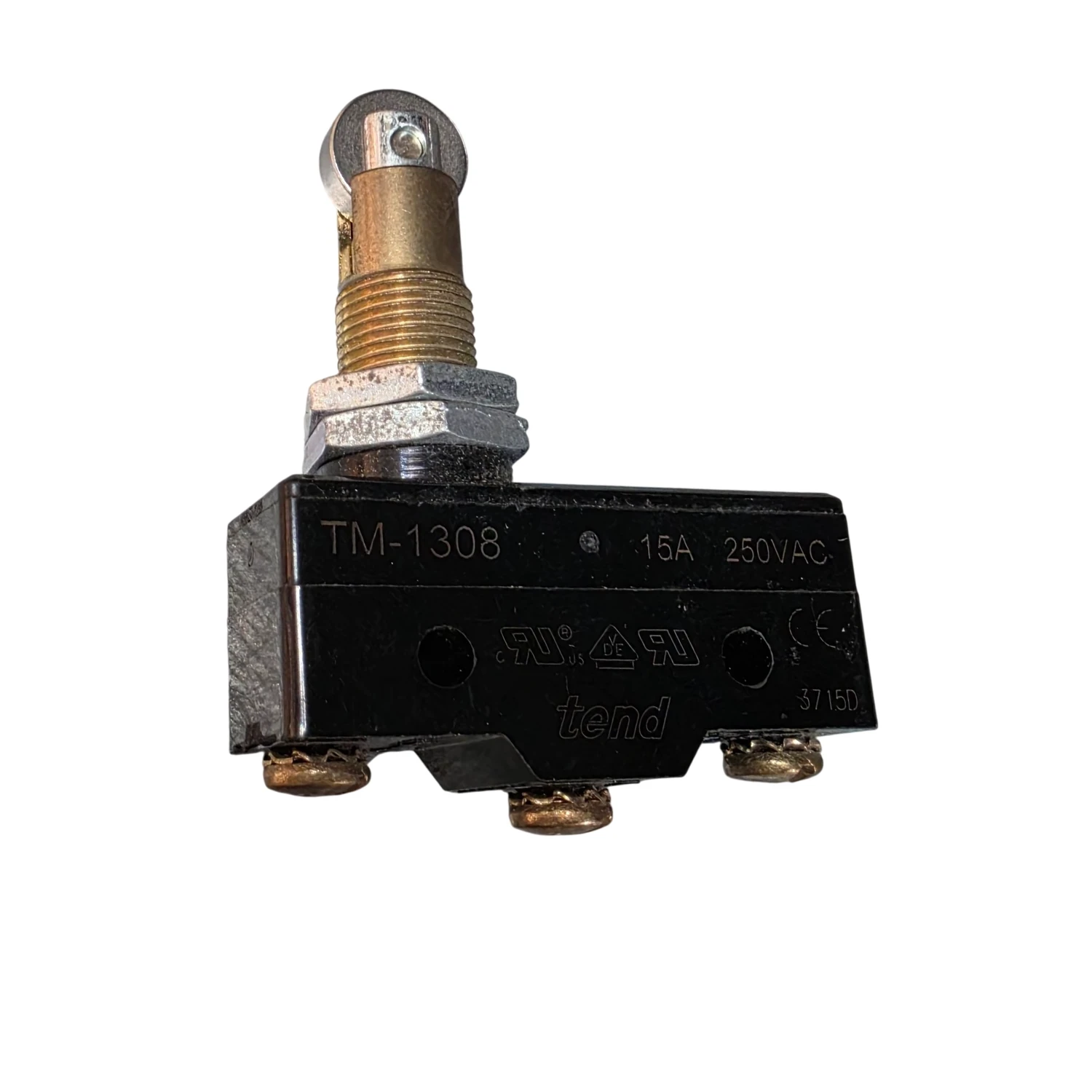

Tend TM1308 Micro Switch Cross Roller Plunger 15A 250VAC

Product Information

Stock Code TM1308
GTIN —
Stock status: Available for delivery

priced individually

Net price: €16.14

Gross price

€19.86

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The TM1308 is a panel mount micro switch with a cross roller plunger actuator, used for position sensing and interlock switching in control panels.

  • Rated 15A at 125⁄250 VAC, 0.4A at 125VDC, 0.2A at 250VDC
  • Operating force 350g max, release force 114g min
  • Mechanical life 20,000,000 operations min, electrical life 500,000 min
  • Operating ambient temperature -25°C to +80°C (general purpose)
Specifications

Rated Current / Voltage

15A at 125/250 VAC, 0.4A at 125VDC, 0.2A at 250VDC

Actuator Type

Panel mount cross roller plunger (Ø12.7 x 3.8mm roller, M12xP1.0 bushing)

Operating Force

350 g max.

Release Force

114 g min.

Pretravel

0.4 mm max.

Overtravel

3.58 mm min.

Contact Resistance

15 mΩ max. (initial)

Insulation Resistance

100 MΩ min. (at 500 VDC)

Dielectric Strength

1,000 VAC 50/60Hz 1 min (non-continuous terminals); 2,000 VAC 50/60Hz 1 min (current-carrying parts to ground)

Operating Ambient Temperature

-25°C to +80°C (general purpose)

Degree of Protection

IP00 (general purpose)

Service Life

Mechanical 20,000,000 operations min.; Electrical 500,000 operations min.

Weight

Approx. 22 g to 58 g

Terminal Options

Screw terminal (standard)
