T511

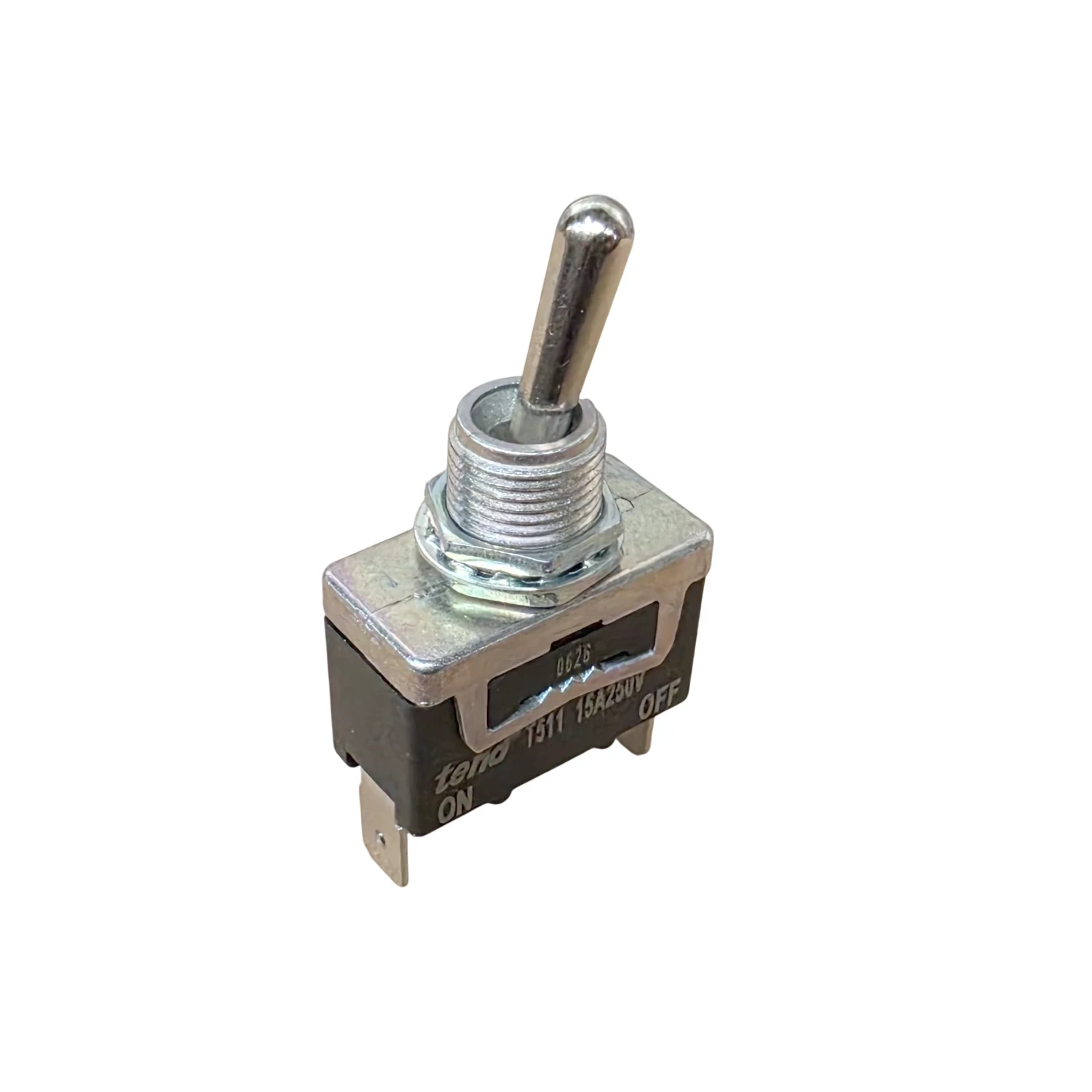

Photo is representative

Tend Toggle Switch On Off SPST 15A 250V Spade Terminal Panel Mount

Product Information

Stock Code T511
GTIN —
Stock status: Available for delivery

priced individually

Net price: €4.92

Gross price

€6.05

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

SPST toggle switch with ON-OFF action, standard non-spring-return operation. Panel mounts via a Ø12mm hole, suits control panels, machinery and equipment needing a high-current isolator.

  • SPST, ON-OFF, standard (non-spring return)
  • AC rating: 15A 250V AC / 20A 125V AC (resistive and inductive)
  • DC rating: 0.5A 250V DC / 0.9A 125V DC (resistive)
  • Terminal options: spade tab #250, screw M3.5xP0.6, solder #187
  • Operating temperature: -25°C to +80°C
Specifications

Contact Configuration

SPST

Switch Function

ON-OFF

Operation Type

Standard / Non-spring return

Mounting Hole Size

Ø12mm

AC Rating (Resistive Load)

15A 250V AC, 20A 125V AC

DC Rating (Resistive Load)

0.5A 250V DC, 0.9A 125V DC

AC Rating (Inductive Load)

15A 250V AC, 20A 125V AC

DC Rating (Inductive Load)

0.3A 250V DC, 0.5A 125V DC, 15A 30V DC

Contact Resistance

15mΩ max (initial)

Insulation Resistance

100MΩ min at 500V DC

Dielectric Strength

2000VAC 50/60Hz for 1 minute

Operating Temperature

-25°C to +80°C

Mechanical Life

500,000 operations min

Electrical Life

100,000 operations min
