TM1704

Photo is representative

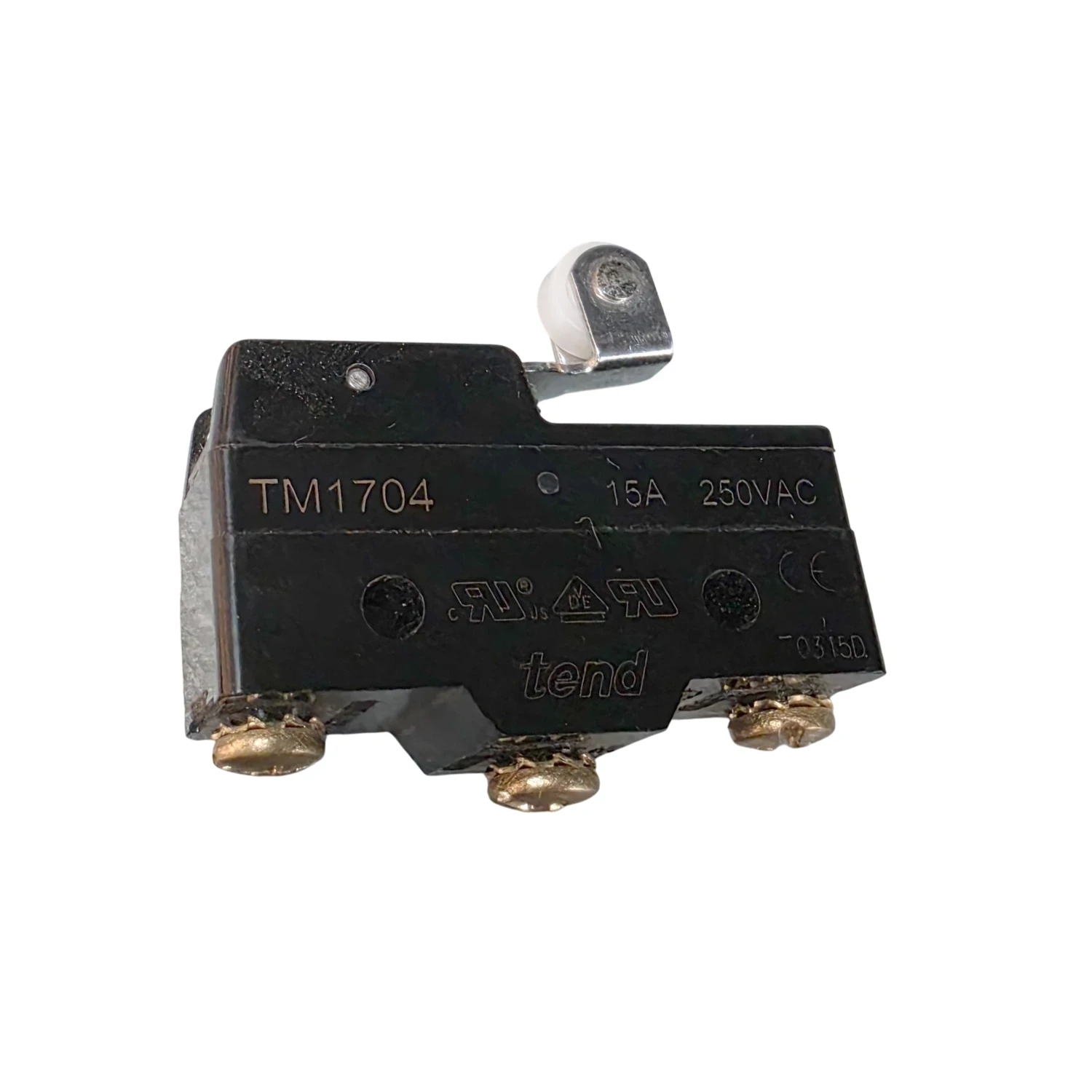

Tend TM1704 Micro Switch Short Roller Lever 15A 250VAC IP00 Screw Terminal

Product Information

Stock Code TM1704
GTIN —
Stock status: Out of stock

priced individually

Net price: €12.92

Gross price

€15.89

The TM1704 is a basic micro switch with a short hinge roller lever actuator. Used for interlocks, position sensing, and limit switching where fast mechanical actuation needs to trigger a reliable electrical response.

  • Rated 15A at 125⁄250 VAC, 0.4A at 125 VDC, 0.2A at 250 VDC
  • Short hinge roller lever, R26.6mm, roller Ø9.5 x 4mm
  • Operating ambient temp -25°C to +80°C
  • Mechanical life 20,000,000 operations min, electrical life 500,000 operations min
  • Screw terminal connection
Specifications

Rated Current/Voltage

15 A at 125/250 VAC, 0.4 A at 125 VDC, 0.2 A at 250 VDC

Actuator Type

Short hinge roller lever (R26.6 mm, roller Ø9.5 x 4 mm)

Degree of Protection

IP00

Terminal Type

Screw terminal

Operating Ambient Temperature

-25°C to +80°C

Mechanical Life

20,000,000 operations min.

Electrical Life

500,000 operations min.

Contact Resistance

15 mΩ max. (initial)

Insulation Resistance

100 MΩ min. at 500 VDC

Dielectric Strength

1,000 VAC 50/60 Hz for 1 min (non-continuous terminals); 2,000 VAC 50/60 Hz for 1 min (current-carrying to ground)

Weight

Approx. 22 g to 58 g
