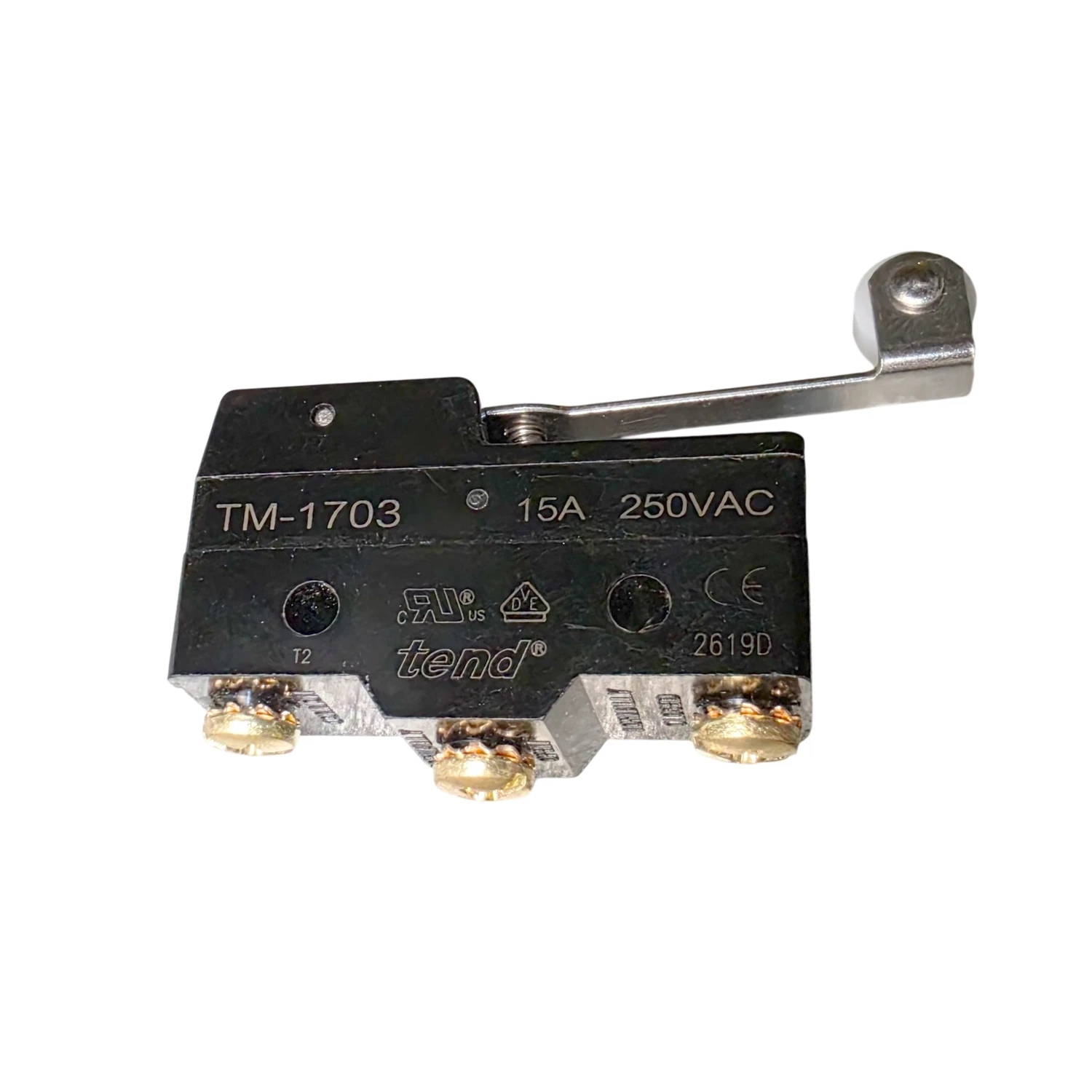

Tend TM1703 Micro Switch 49mm Roller Lever 15A 250VAC IP00 Screw Terminal

Product Information

Stock Code TM1703
GTIN —
Stock status: Available for delivery

priced individually

Net price: €11.70

Gross price

€14.39

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The TM1703 is a basic micro switch with a hinge roller lever actuator, used for limit sensing and interlock duty on panels and machinery.

  • Rated 15A at 125/250VAC (0.4A at 125VDC, 0.2A at 250VDC)
  • Hinge roller lever, R48.5mm, roller Ø9.5 x 4mm
  • Screw terminal connection
  • IP00 (general purpose, no ingress protection)
  • Operating ambient temp -25°C to +80°C
Specifications

Rated Current / Voltage

15 A at 125/250 VAC, 0.4 A at 125 VDC, 0.2 A at 250 VDC

Actuator Type

Hinge roller lever, R48.5mm, roller Ø9.5 x 4mm, t=1mm

Operating Frequency

Mechanical 240 operations/min, Electrical 20 operations/min

Contact Resistance

15 mΩ max (initial)

Insulation Resistance

100 MΩ min at 500 VDC

Dielectric Strength

1,000 VAC 1 min (non-continuous terminals); 2,000 VAC 1 min (current-carrying parts to ground)

Operating Ambient Temperature

-25°C to +80°C

Degree of Protection

IP00

Terminal Type

Screw terminal

Service Life

Mechanical 20,000,000 operations min., Electrical 500,000 operations min.

Weight

Approx. 22g to 58g
