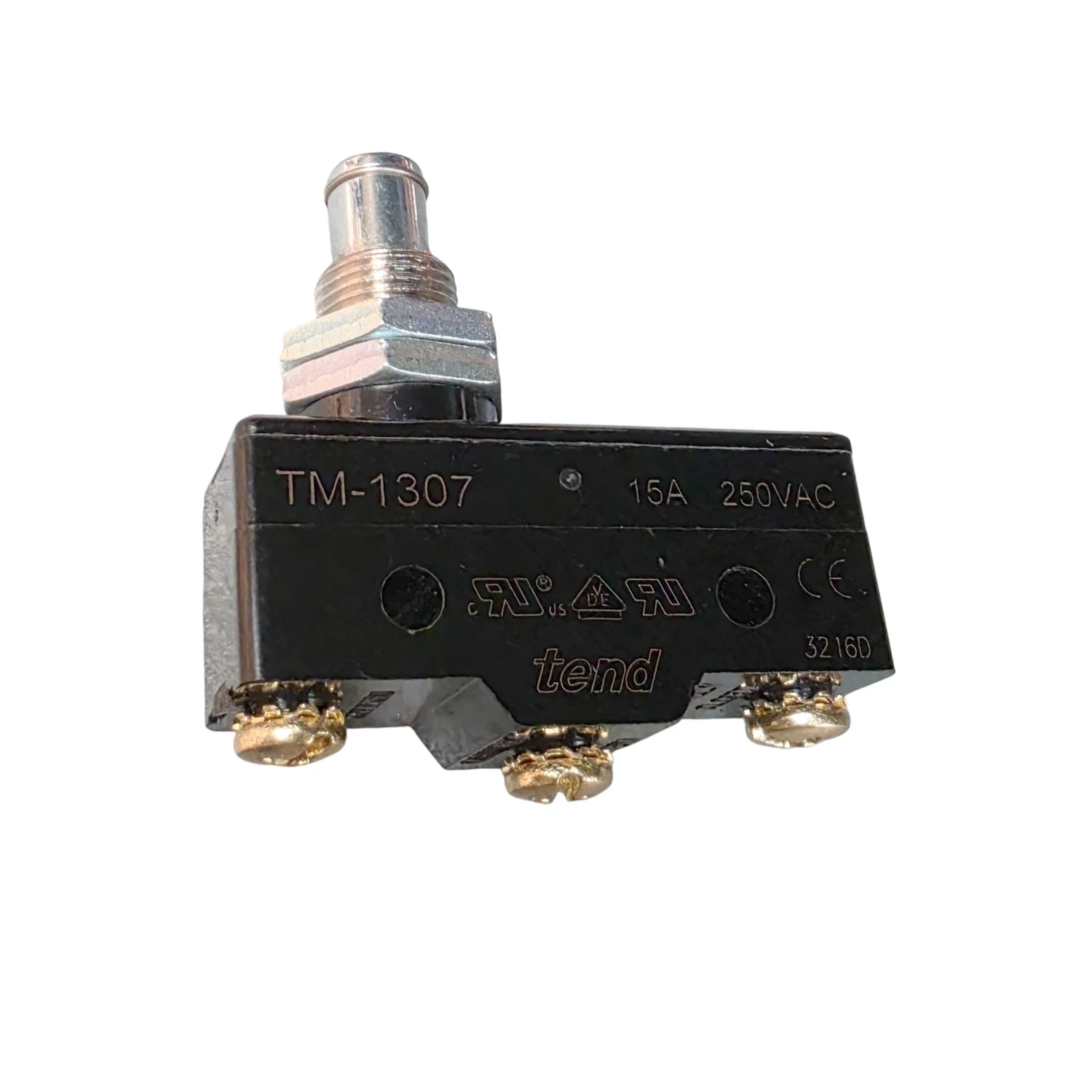

Tend TM1307 Micro Switch Panel Mount Roller Plunger 15A 250VAC

Product Information

Stock Code TM1307
GTIN —
Stock status: Available for delivery

priced individually

Net price: €9.75

Gross price

€11.99

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Panel-mount plunger micro switch with a roller actuator and heavy-duty M12xP1.0 threaded bushing. Used for limit detection and mechanical position sensing on panel builds and machinery interlocks.

  • Rated 15A at 125/250VAC, 0.4A at 125VDC, 0.2A at 250VDC
  • Operating force 350g max, release force 114g min
  • Mechanical life 20,000,000 operations, electrical life 500,000 operations
  • Operating ambient -25°C to +80°C (general purpose)
Specifications

Actuator Type

Panel mount roller plunger (SR14, Ø8.3 mm, M12xP1.0 bushing)

Rated Current / Voltage

15 A at 125 VAC / 250 VAC, 0.4 A at 125 VDC, 0.2 A at 250 VDC

Operating Force

350 g max.

Release Force

114 g min.

Pretravel

0.4 mm max.

Overtravel

5.5 mm min.

Contact Resistance

15 mΩ max. (initial)

Insulation Resistance

100 MΩ min. (at 500 VDC)

Dielectric Strength

1,000 VAC 50/60 Hz for 1 min (non-continuous terminals); 2,000 VAC 50/60 Hz for 1 min (current-carrying parts to ground)

Operating Ambient Temperature

General purpose: -25°C to +80°C; Sealed type: -15°C to +80°C

Service Life

Mechanical: 20,000,000 operations min.; Electrical: 500,000 operations min.

Weight

Approx. 22 g to 58 g

Terminal Options

Screw terminal (standard)
