TM1306

Photo is representative

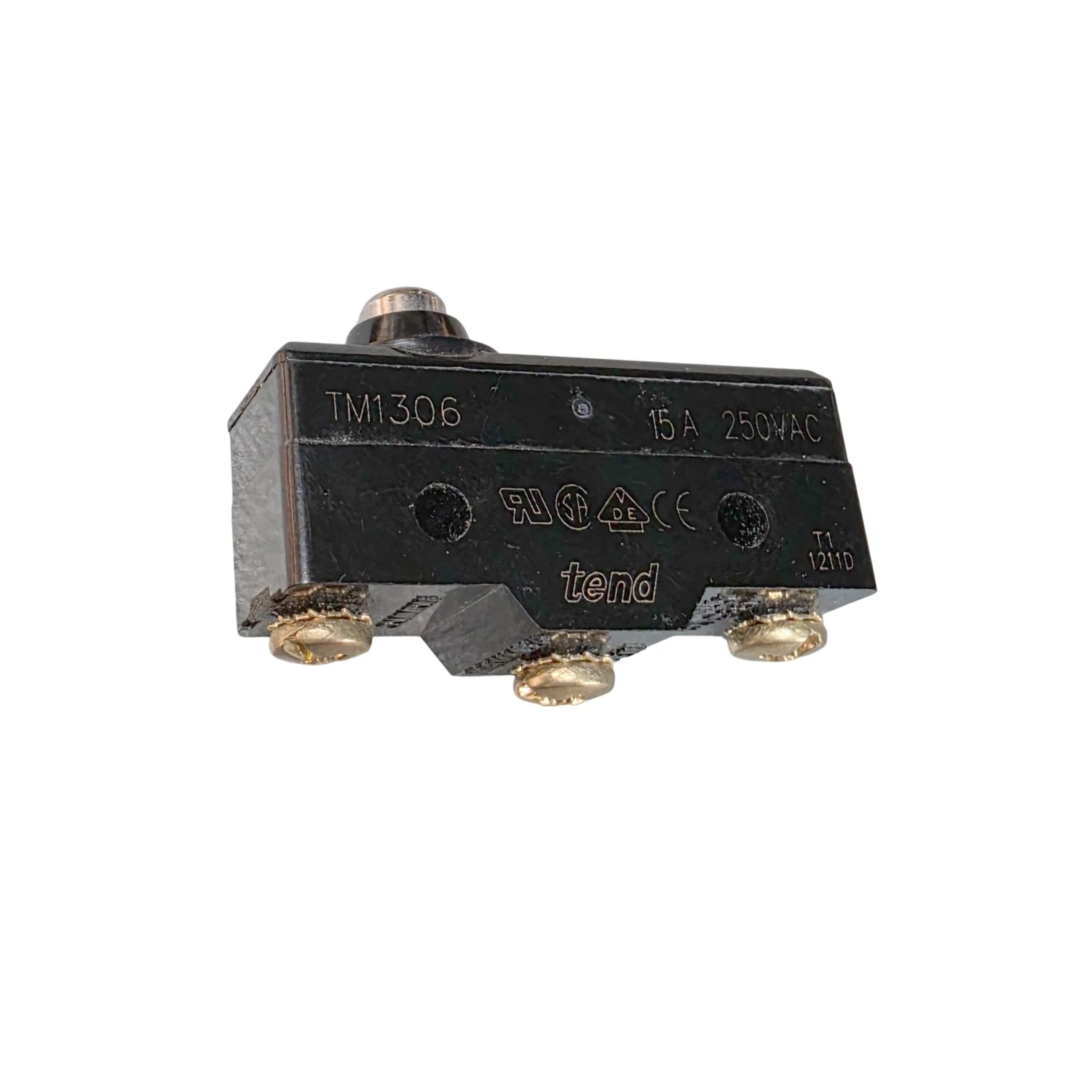

Tend TM1306 Micro Switch Short Push Plunger 15A 250VAC Screw Terminal

Product Information

Stock Code TM1306
GTIN —
Stock status: Available for delivery

priced individually

Net price: €12.92

Gross price

€15.89

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 7 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Tend TM1306 micro switch with a short push plunger actuator (SR5, Ø7.3 mm). Used for limit and position sensing in control panel builds — interlocks, end-stops, and switching applications.

  • Rated 15A at 125/250VAC, 0.4A at 125VDC, 0.2A at 250VDC
  • Screw terminal as standard
  • Mechanical service life 20,000,000 operations min, electrical 500,000 operations min
  • Operating ambient temperature -25°C to +80°C (general purpose)
Specifications

Rated Current / Voltage

15A at 125VAC / 250VAC, 0.4A at 125VDC, 0.2A at 250VDC

Actuator Type

Push plunger (SR5, Ø7.3 mm)

Operating Force

350 g max.

Release Force

114 g min.

Operating Ambient Temperature

General purpose: -25°C to +80°C; Sealed type: -15°C to +80°C

Service Life

Mechanical: 20,000,000 operations min.; Electrical: 500,000 operations min.

Terminal Options

Screw terminal (standard)

Weight

Approx. 22 g to 58 g

Insulation Resistance

100 MΩ min. (at 500 VDC)

Contact Resistance

15 mΩ max. (initial)

Operating Frequency

Mechanical: 240 operations/min; Electrical: 20 operations/min
