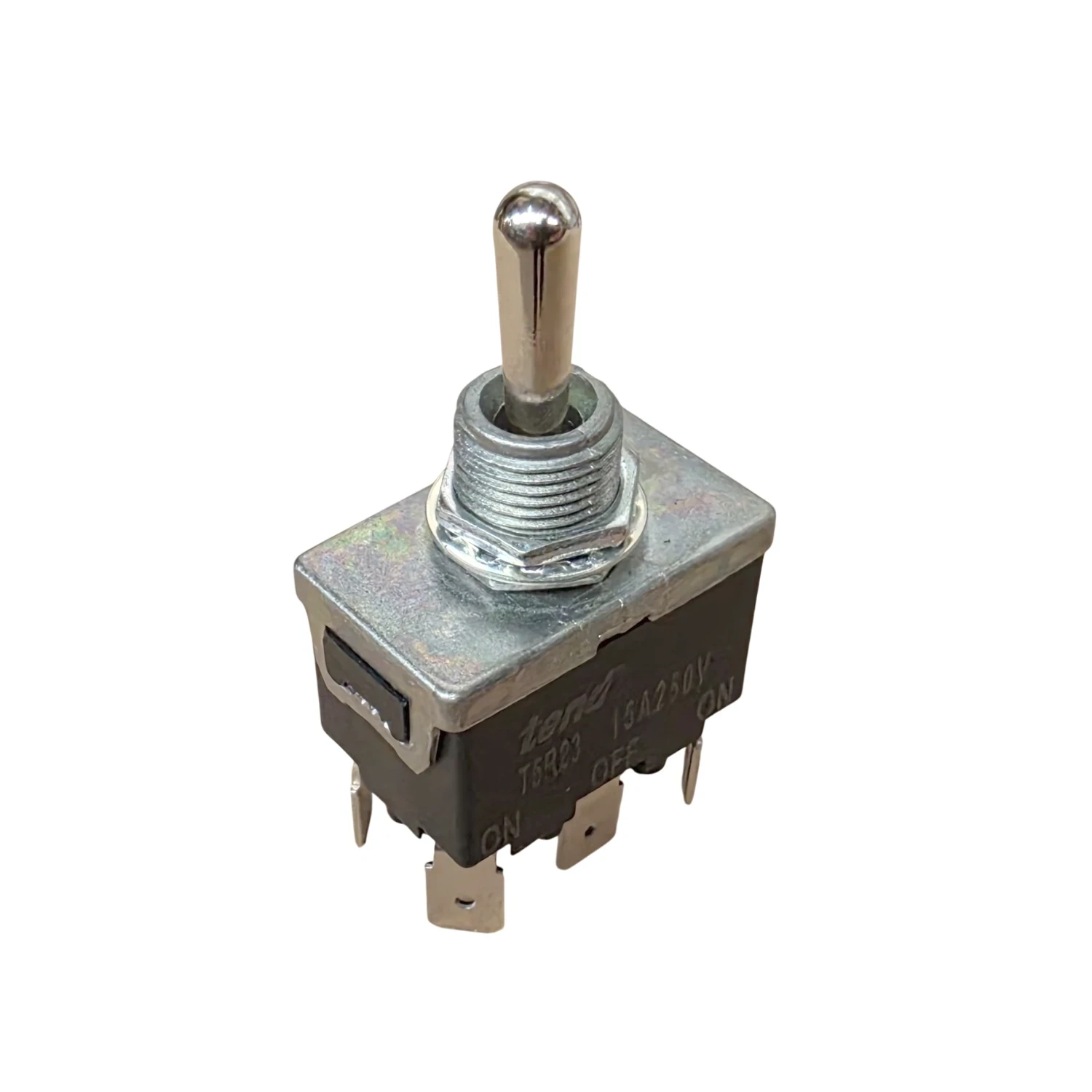

T5R23

Photo is representative

Tend T5R23 Toggle Switch DPDT ON-OFF-ON 15A 250V Spring Return

Product Information

Stock Code T5R23
GTIN —
Stock status: Available for delivery

priced individually

Net price: €9.69

Gross price

€11.91

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 9 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 9 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

DPDT toggle switch with spring-return ON-OFF-ON action, centre OFF position. Panel-mount design with Ø12mm mounting hole.

Suited to control circuits, reset functions and applications needing momentary switching back to a neutral position.

  • Contact configuration: DPDT, ON-OFF-ON (centre OFF)
  • Operation: Spring return
  • Rating: 15A 250V AC
  • Mounting hole: Ø12mm
  • Terminal options: Tab #250, Screw M3.5xP0.6, Solder #187
Specifications

Pole/Throw

DPDT

Switch Function

ON-OFF-ON (Central OFF)

Operation Type

Spring return

Mounting Hole Size

Ø12mm

AC Rating (Resistive Load)

15A 250V AC, 20A 125V AC

DC Rating (Resistive Load)

0.5A 250V DC, 0.9A 125V DC

Contact Resistance

15mΩ max (initial)

Insulation Resistance

100MΩ min (at 500V DC)

Dielectric Strength

2000VAC, 50/60Hz for 1 minute

Operating Temperature

-25°C to +80°C

Operating Humidity

85% RH max

Mechanical Life

500,000 operations min

Electrical Life

100,000 operations min

Terminal Types

Tab Terminal #250, Screw Terminal M3.5xP0.6, Solder Terminal #187
