T5R13

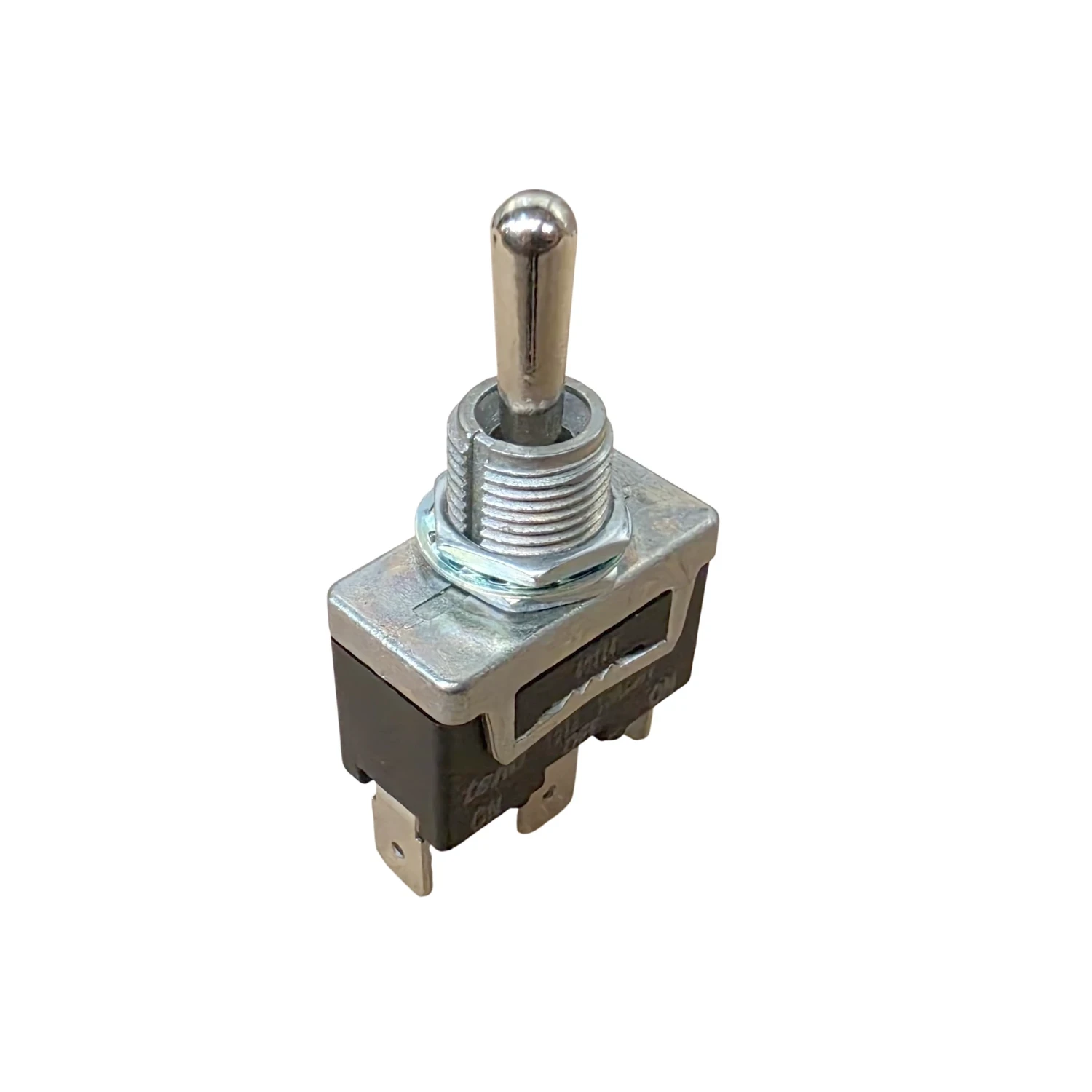

Photo is representative

Tend Toggle Switch Spring Return SPST 15A 250V ON-OFF Panel Mount

Product Information

Stock Code T5R13
GTIN —
Stock status: Available for delivery

priced individually

Net price: €5.85

Gross price

€7.20

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Bat-handle toggle switch from Tend’s T5R series, SPST spring-return ON-OFF action for panel mounting. Fits a Ø12mm cut-out and is available with tab, screw, or solder terminals depending on the terminal type ordered.

Suited to general on/off control and equipment isolation work where a momentary spring-return action is needed rather than a maintained switch.

  • SPST spring-return, ON-OFF function
  • 15A 250V AC / 20A 125V AC resistive load
  • Ø12mm mounting hole
  • Operating temperature -25°C to +80°C
  • Mechanical life 500,000 operations min
Specifications

Pole/Throw

SPST

Switch Function

ON-OFF

Operation Type

Spring return

Mounting Hole Size

Ø12mm

AC Rating Resistive Load

15A 250V AC, 20A 125V AC

DC Rating Resistive Load

0.5A 250V DC, 0.9A 125V DC

Contact Resistance

15mΩ max (initial)

Insulation Resistance

100MΩ min at 500V DC

Dielectric Strength

2000VAC, 50/60Hz for 1 minute

Operating Temperature

-25°C to +80°C

Mechanical Life

500,000 operations min

Electrical Life

100,000 operations min
