T521

Photo is representative

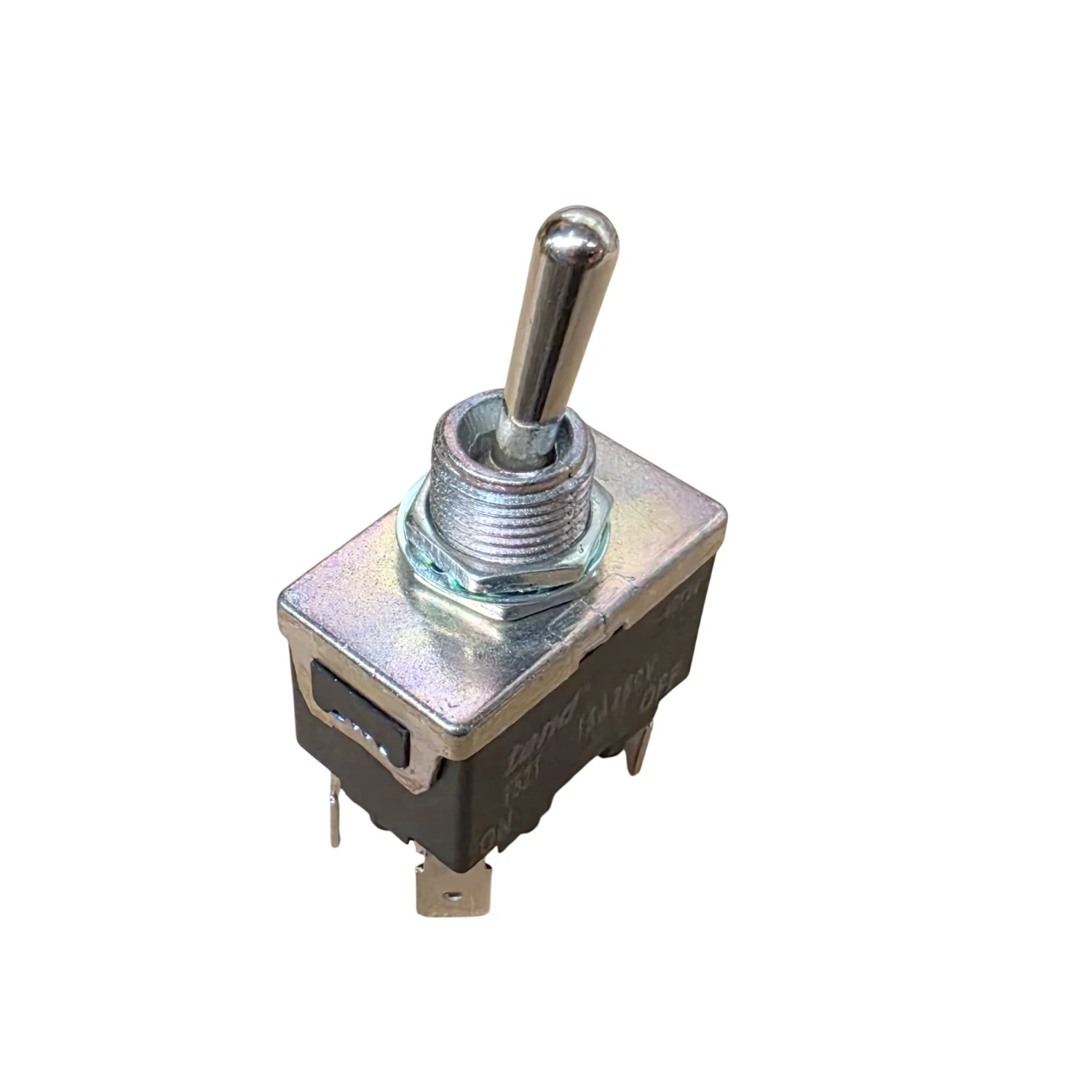

Tend Toggle Switch On Off DPST 15A 250V AC Spade Terminal Panel Mount

Product Information

Stock Code T521
GTIN —
Stock status: Available for delivery

priced individually

Net price: €4.38

Gross price

€5.39

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Tend T521 is a DPST toggle switch with ON-OFF function, standard (non-spring return) operation, for panel mounting via a Ø12mm hole. This listing covers the spade (tab) terminal version.

Rated for mains switching duty including resistive, inductive, lamp and motor loads at 250V AC.

  • DPST ON-OFF, standard non-spring return
  • 15A 250V AC / 20A 125V AC resistive load
  • Spade terminal (Tab #250)
  • Ø12mm panel mount hole
  • Operating temp -25°C to +80°C
Specifications

Contact Configuration

DPST

Switch Function

ON-OFF

Operation Type

Standard / Non-spring return

Mounting Hole Size

Ø12mm

Terminal Type

Tab Terminal #250 (Spade)

AC Rating (Resistive Load)

15A 250V AC, 20A 125V AC

DC Rating (Resistive Load)

0.5A 250V DC, 0.9A 125V DC

Contact Resistance

15mΩ max (initial)

Insulation Resistance

100MΩ min at 500V DC

Dielectric Strength

2000VAC 50/60Hz for 1 minute

Operating Temperature

-25°C to +80°C

Operating Humidity

85% RH max

Mechanical Life

500,000 operations min

Electrical Life

100,000 operations min
