XZCP1141L5

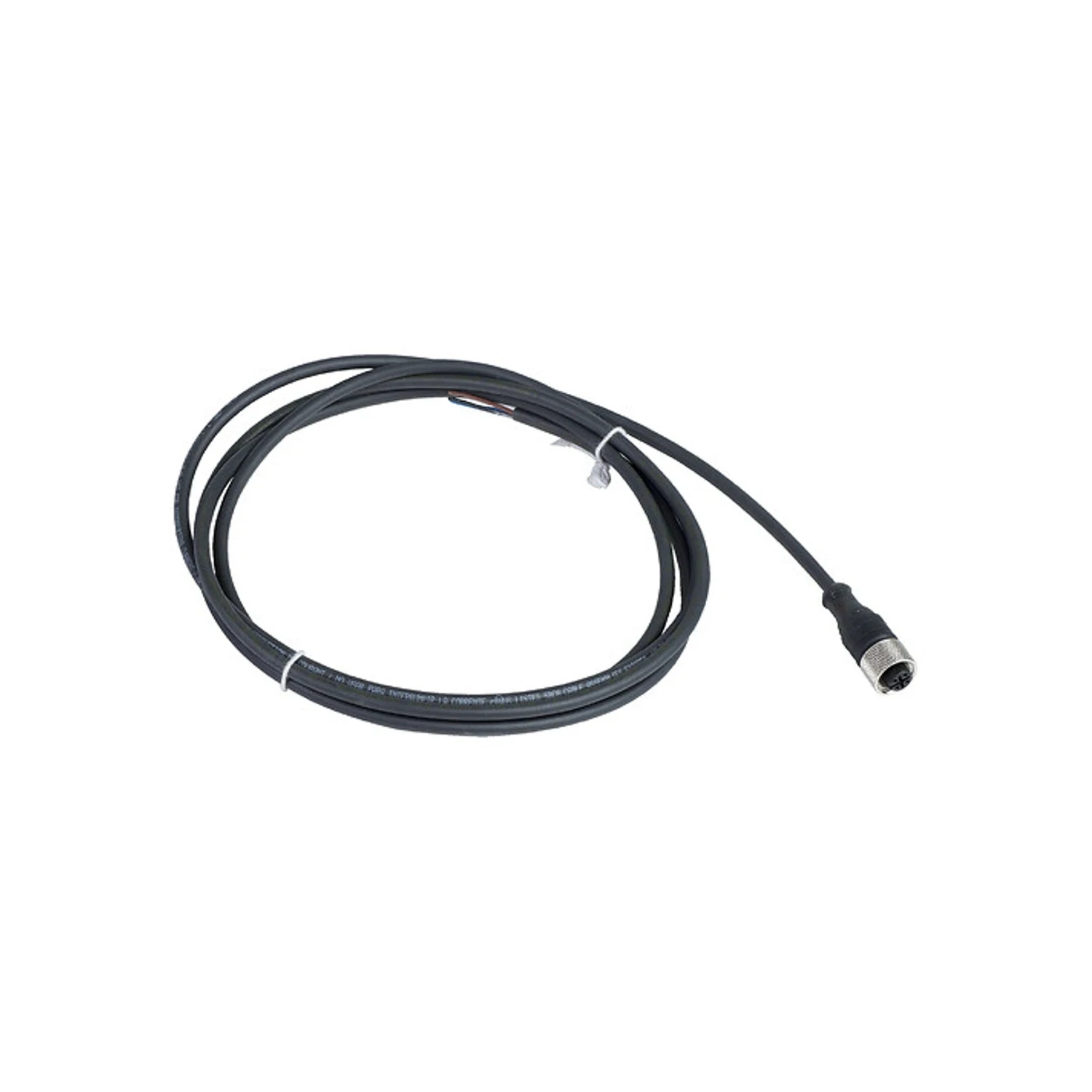

Photo is representative

Telemecanique XZCP1141L5 M12 Connector Straight Female 4 Pin 5m IP65

Product Information

Stock Code XZCP1141L5
GTIN 3389110763188
Stock status: Out of stock

priced individually

Net price: €13.12

Gross price

€16.13

Pre-wired straight female M12 connector with 4 pins, built for industrial cabling and sensor hookups where sealed connections are needed.

Supplied with 5m of PUR cable already terminated, saving time on-site versus field-wiring a connector.

  • Electrical connection: straight female M12, 4 pins
  • Cable: 5m PUR, 5.2mm outer diameter, 4 x 0.34mm²
  • Rated 250V AC / 300V DC, 4A
  • IP65, IP67, IP69K protection
  • Ambient operating range -40…80°C (static)
Specifications

Electrical Connection

Straight female connector M12, 4 pins

Cable Length

5 m

Cable Outer Diameter

5.2 mm

Rated Operational Voltage

250 V AC, 300 V DC

Rated Current

4 A

IP Degree of Protection

IP65, IP69K, IP67

Ambient Air Temperature for Operation (Static)

-40…80 °C

Net Weight

0.19 kg

Product Certifications

cULus

Documents

datasheet XZCP1141L5
