Photo is representative

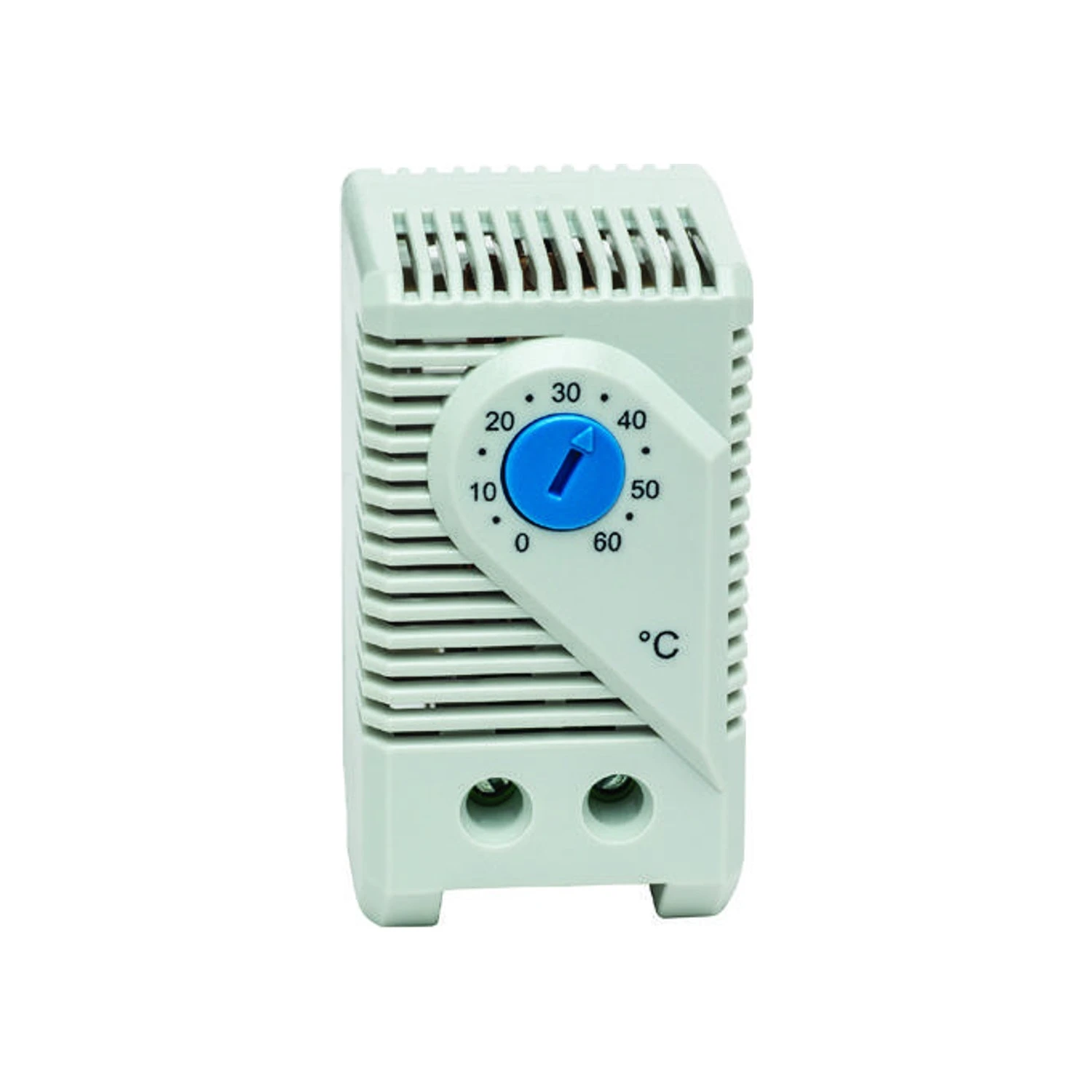

STEGO KTS 011 Thermostat 0-60°C Normally Open (N.O.), Blue, DIN Rail
Product Information
Stock Code
KTS011
GTIN
—
Stock status: 5 available for delivery
priced individually
Net price: €19.85
Gross price
€24.41
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout
STEGO KTS 011 (01141.0-00) is a small bimetal thermostat for enclosures with a normally open (N.O.) contact. The contact closes when the temperature rises above the setting, for switching filter fans, heat exchangers or signal devices.
- Setting range: 0 to +60°C (blue dial)
- Contact: N.O., snap action, closes on rising temperature
- Switch difference: 7K (±4K)
- Switching capacity: 10(2)A at 250V AC; 15(2)A at 120V AC; 30W at 24-72V DC
- Connection: 2-pole terminal, 2.5mm² rigid / 1.5mm² stranded with ferrule
- Mounting: clip for 35mm DIN rail (EN 60715)
- Size: 60 x 33 x 43mm, approx. 40g
- Housing: plastic to UL94 V-0, light grey; IP20
Priced individually.
