Spelsberg Abox 100-10² Junction Box 140×140×79 IP54/IP65 IK07 Grey

Photo is representative

Spelsberg Abox 100-10² Junction Box 140×140×79 IP54/IP65 IK07 Grey

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 81041001
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €45.85

Gross price

€56.39

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

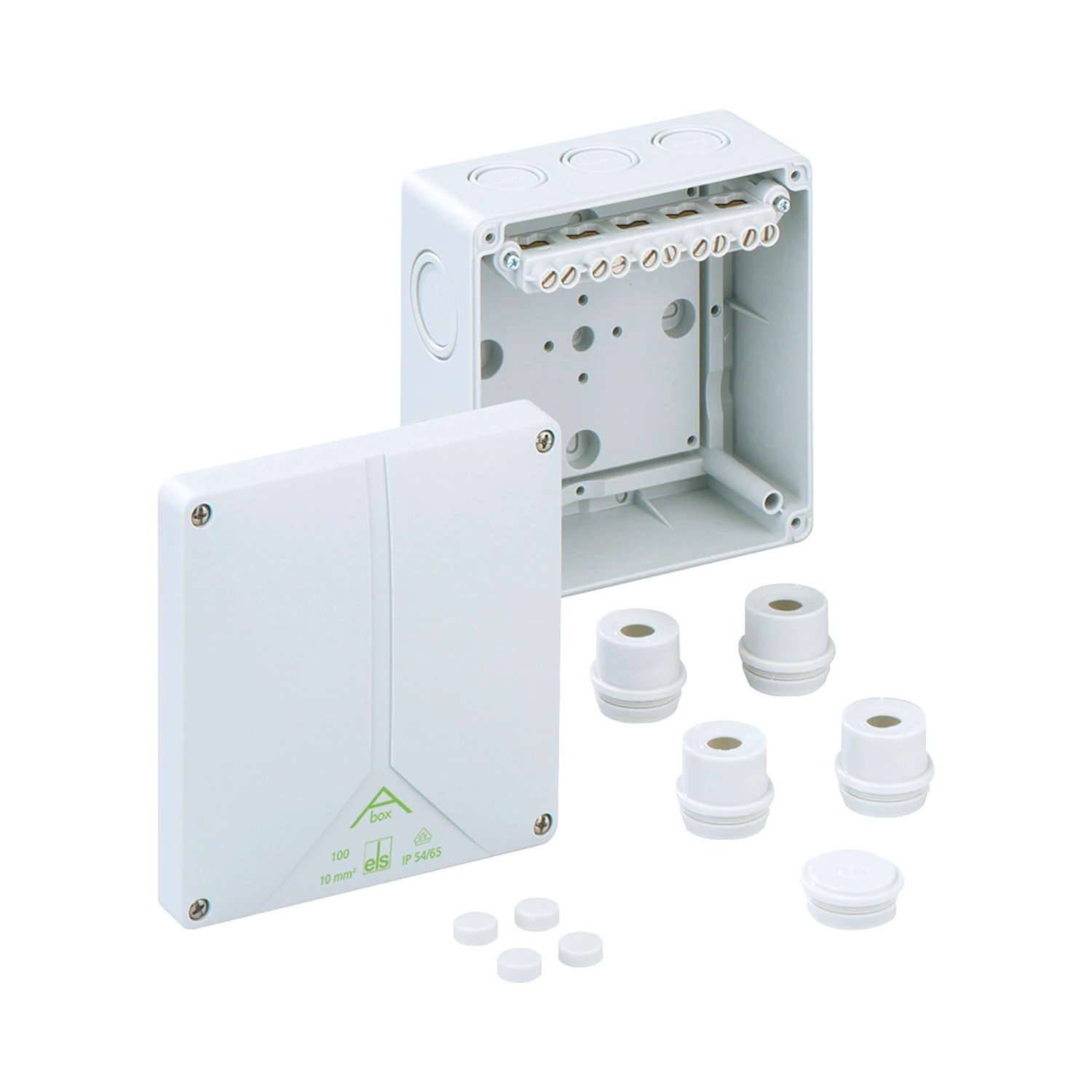

Grey polystyrene junction box from Spelsberg’s Abox range. Rated IP54/IP65 and IK07 — suitable for indoor electrical installations where moisture ingress protection is required.

Comes complete with a 5-pole 10 mm² terminal block and M32 attachment bushes and sealing plug. Wall or ceiling mount via internal fixing points.

  • 140×140×79 mm
  • IP54/IP65, IK07
  • 690 V AC rated insulation voltage
  • M20/M25/M32 knockouts (2 rear, 10 side)
  • Terminals: 5-pole, up to 10 mm² (accepts 4 mm², 6 mm², 10 mm²)
  • Halogen free; glow-wire 650 °C to EN 60695-2-11
Specifications

Dimensions (W×L×H)

140×140×79 mm

Weight

0.3556 kg

Rated Insulation Voltage AC

690 V

Max Conductor Cross-Section

10 mm²

Terminal Configuration

5-pole 10 mm² (4×4 mm² / 4×6 mm² / 4×10 mm²)

IP Rating

IP54/IP65

Impact Resistance

IK07

Protection Class

II

Enclosure Material

Polystyrene

Colour

Grey

Knockouts

M20/M25/M32 (2 rear, 10 side)

Cover Screw Material

Stainless steel 1.4567 (V2A)

Cover Screw Torque

1 Nm

Glow-Wire Flammability

650 °C (EN 60695-2-11)

Flammability Class

UL94 HB

Halogen Free

Yes

UV Resistant

No

Ambient Temperature Range

-25 °C to +40 °C

Mounting

Wall/ceiling, internal fixing points

Certification

VDE (DIN EN 60670-1/-22)

Documents

datasheet 81041001 Datasheet
