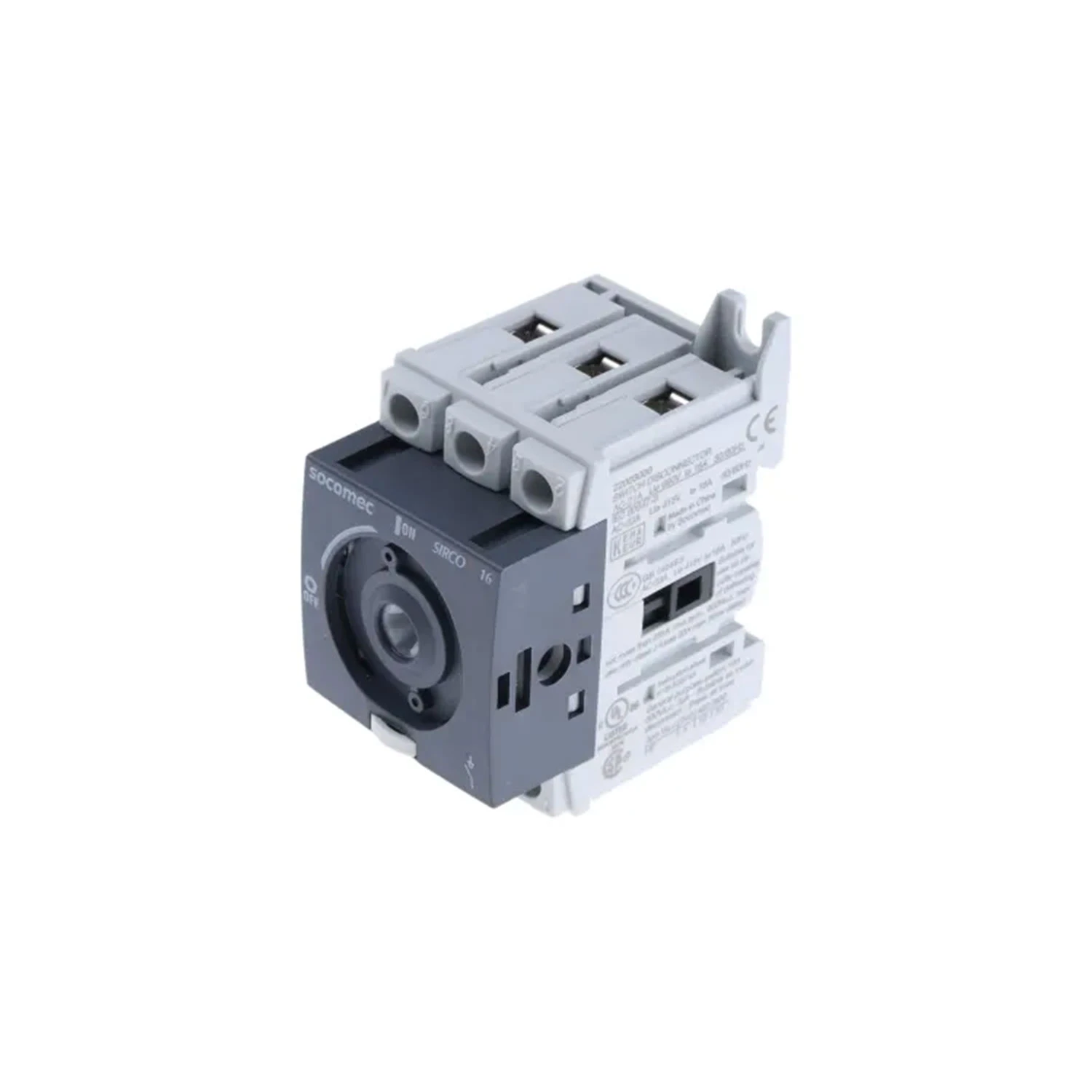

Photo is representative
Socomec SIRCO M 3P 32A Modular Switch-Disconnector (Body)
Product Information
priced individually
Net price: €39.48
Gross price
€48.56
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
The Socomec SIRCO M is a manually operated modular switch-disconnector (load-break switch) providing safe on-load isolation of circuits for maintenance and source switching. This three-pole version is rated 32A (Ith at 40°C) with a rated operational current of 32A in category AC-23 at 415V, and a rated insulation voltage of 800V with an 8kV impulse withstand. It uses double-break contacts per pole with visible contact separation, mounts on 35mm DIN rail or by panel/modular-panel fixing (45mm front cut-out), and conforms to IEC/EN 60947-3. This catalogue reference is the switch body only — the operating handle/shaft is ordered separately. Connection capacity is 1.5–16mm² copper. Suitable for AC-21 to AC-23 duty including small motor loads (15kW at 400V).
