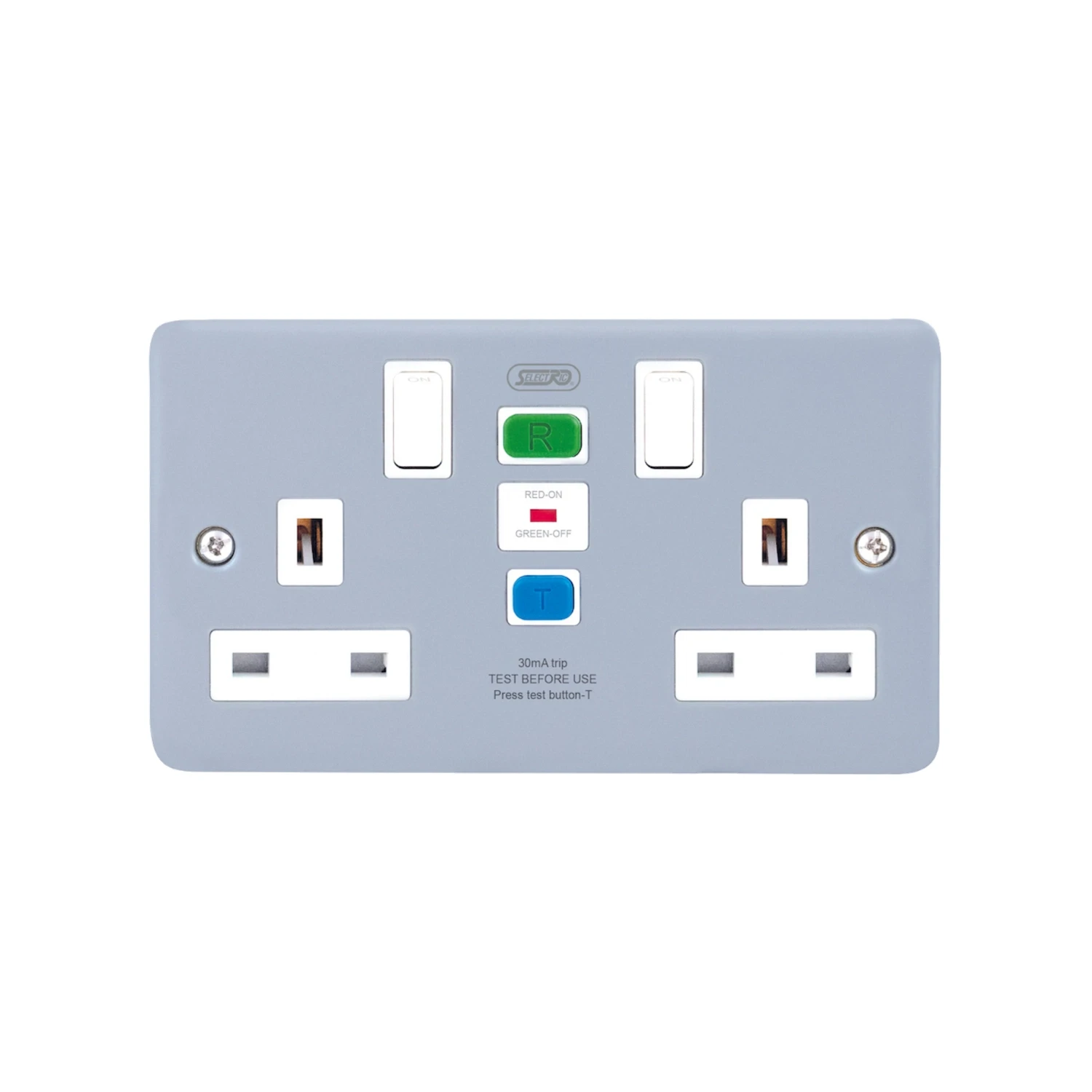

Selectric 2G 13A DP Switched Socket with RCD Metalclad LGRCD5

Photo is representative

Selectric 2G 13A DP Switched Socket with RCD Metalclad LGRCD5

Product Information

Stock Code LGRCD5
GTIN 5025117028698
Stock status: Out of stock

priced individually

More arriving soon

Net price: €46.14

Gross price

€56.75

2G DP switched socket with built-in RCD protection in a steel metalclad enclosure. Suits surface-mount installations where RCD protection is required at the point of use — workshops, garages, commercial and light industrial circuits.

Passive/latching Type A RCD. Back box included.

  • 30mA rated tripping current, 40ms tripping time
  • High grade steel with epoxy powder coat, grey finish
  • IP20 rated
  • Standards: BS 1363-2, BS EN 61543, BS 7288
  • Operating temperature: -5°C to +40°C
Specifications

Rated Current

13A

Poles

DP

Gang

2G

RCD Tripping Current

30mA

RCD Tripping Time

40mS

RCD Type

Type A

Operating Model

Passive / latching

IP Rating

IP20

Material

High grade steel with epoxy powder coating

Colour

Grey

Operating Temperature

-5°C to +40°C (average not exceeding 35°C over 24hr period)

Max Operating Altitude

2000m above sea level

Weight

0.48kg

Standards

BS 1363-2, BS EN 61543, BS 7288
