XB4BW36B5

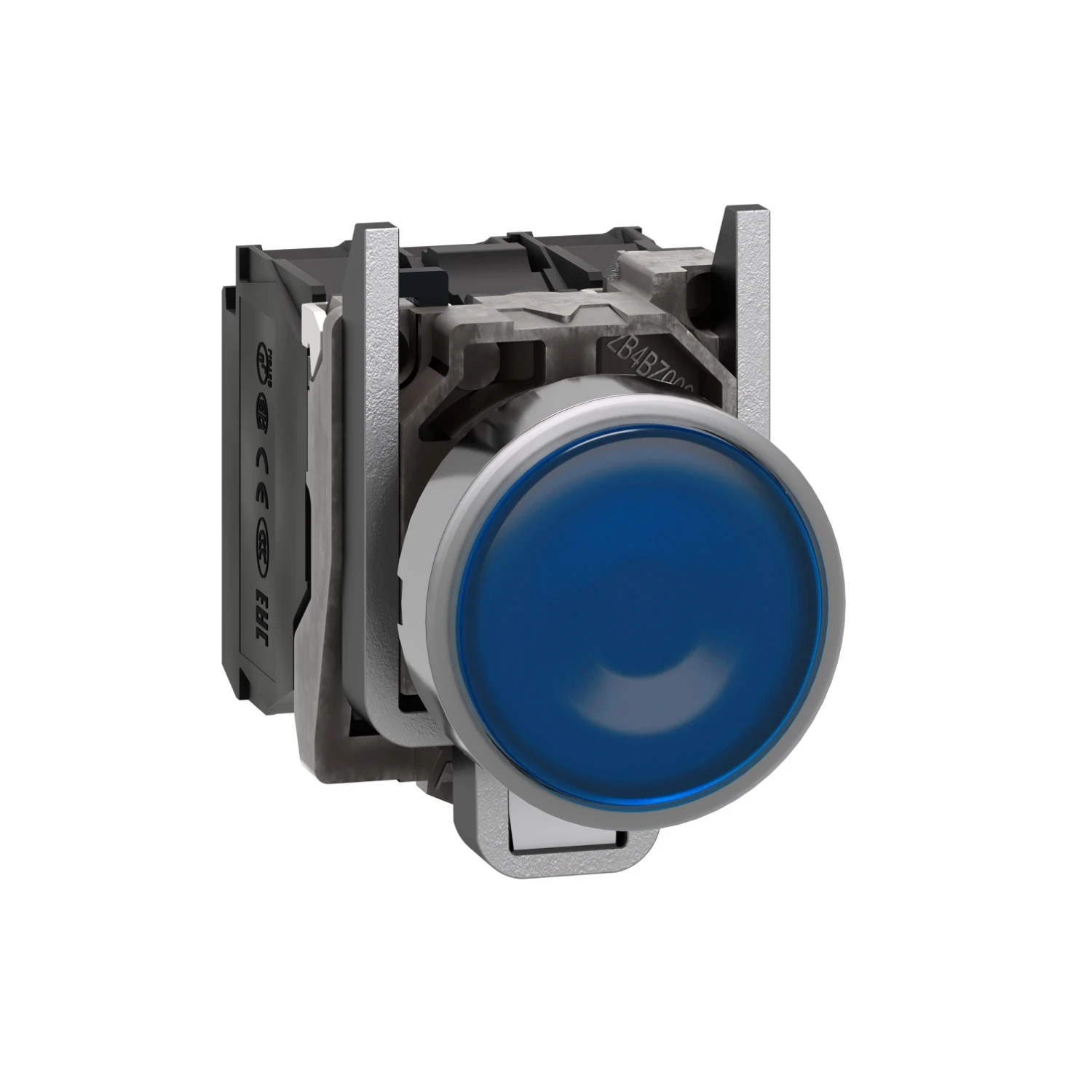

Photo is representative

Schneider Harmony XB4 Illuminated Pushbutton 22mm Blue LED 24V

Product Information

Stock Code XB4BW36B5
GTIN 3389110119756
Stock status: Available for delivery

priced individually

Net price: €40.99

Gross price

€50.42

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 1 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Schneider Harmony XB4 illuminated push-button with blue flush operator profile and integral LED light source. Fits 22.5mm panel cut-out, spring return action for momentary control with visual status indication.

  • 24V AC/DC LED, 50/60Hz
  • 1 NO + 1 NC contacts, slow-break
  • Spring return operator
  • Screw clamp terminals
  • IP66/IP67/IP69/IP69K rated

Used on control panels and operator stations needing a combined pushbutton and LED indicator in one unit.

Specifications

Rated Supply Voltage

24 V AC/DC at 50/60 Hz

Contacts

1 NO + 1 NC, slow-break

Mounting Diameter

22.5 mm

IP Rating

IP66, IP67, IP69, IP69K

IK Rating

IK06

Terminal Type

Screw clamp terminals

Rated Operational Current

3 A at 240 V, AC-15

Mechanical Durability

10,000,000 cycles

Electrical Durability

1,000,000 cycles

Operating Temperature

-40...70 °C

Net Weight

0.097 kg

Standards

IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5

Documents

datasheet XB4BW36B5
