XB4BW35B5

Photo is representative

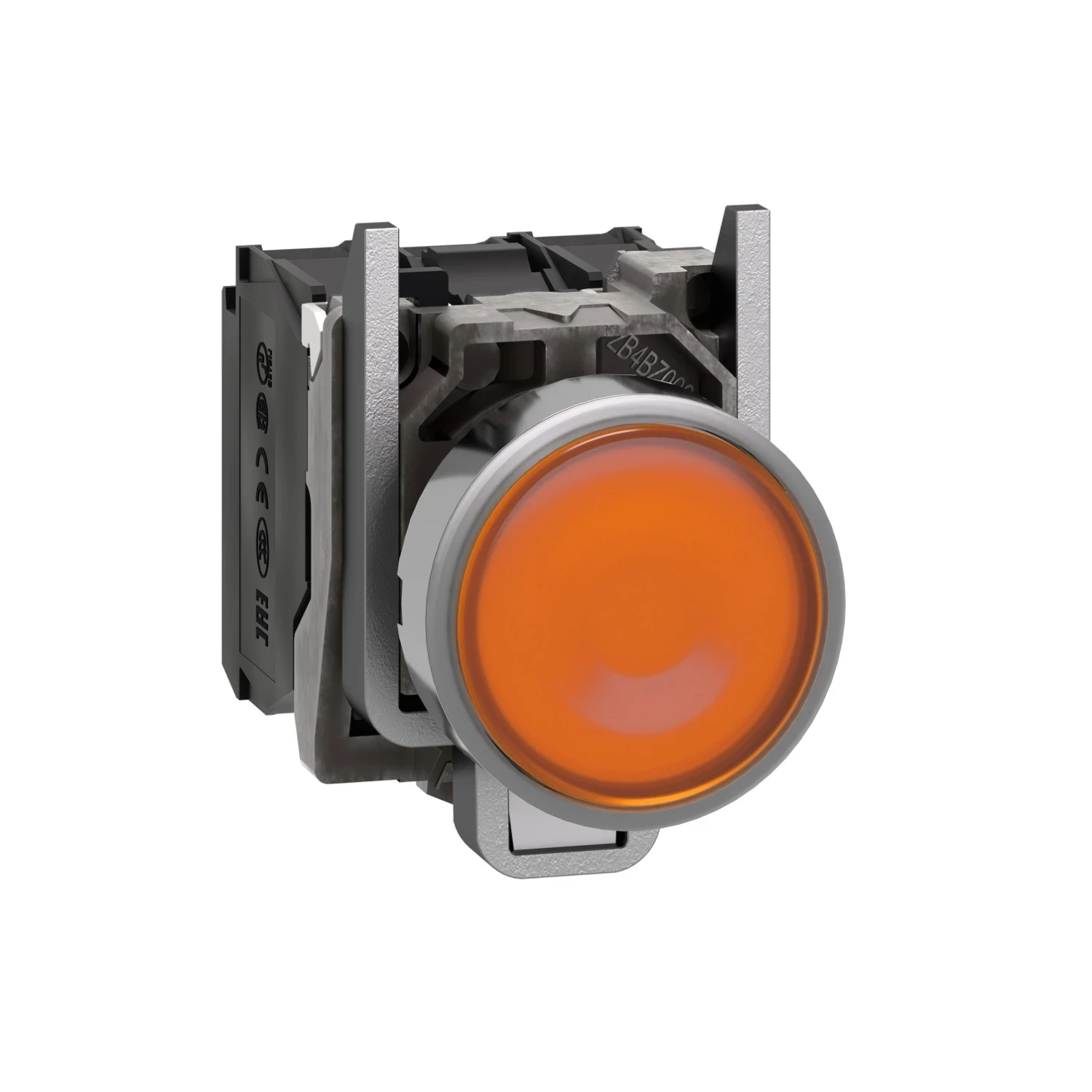

Schneider Harmony XB4 Illuminated Pushbutton 22mm Orange 24V LED

Product Information

Stock Code XB4BW35B5
GTIN 3389110892062
Stock status: Available for delivery

priced individually

Net price: €40.99

Gross price

€50.42

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 8 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Illuminated push-button operator from Schneider’s Harmony XB4 range. Orange flush lens with chromium-plated metal bezel, integral LED, 22.5mm panel mount for control panels and switchgear.

Spring return action with 1NO+1NC contacts, suited to start/stop stations and signal circuits where LED status indication is needed.

  • Supply: 24V AC/DC, 50/60Hz
  • Contacts: 1NO+1NC, slow-break, screw clamp terminals
  • Mounting diameter: 22.5mm
  • IP66/IP67/IP69/IP69K, IK06
  • Mechanical durability: 10,000,000 cycles
Specifications

Rated Supply Voltage

24 V AC/DC at 50/60 Hz

Contact Arrangement

1 NO + 1 NC

Contact Operation

Slow-break

Mounting Diameter

22.5 mm

Bezel Material

Chromium plated metal

Rated Insulation Voltage

600 V (pollution degree 3)

Rated Impulse Withstand Voltage

6 kV

IP Degree of Protection

IP66, IP67, IP69, IP69K

IK Degree of Protection

IK06

Mechanical Durability

10,000,000 cycles

Ambient Air Temperature Operation

-40...70 °C

Net Weight

0.097 kg

Documents

datasheet XB4BW35B5
