XB4BW33B5

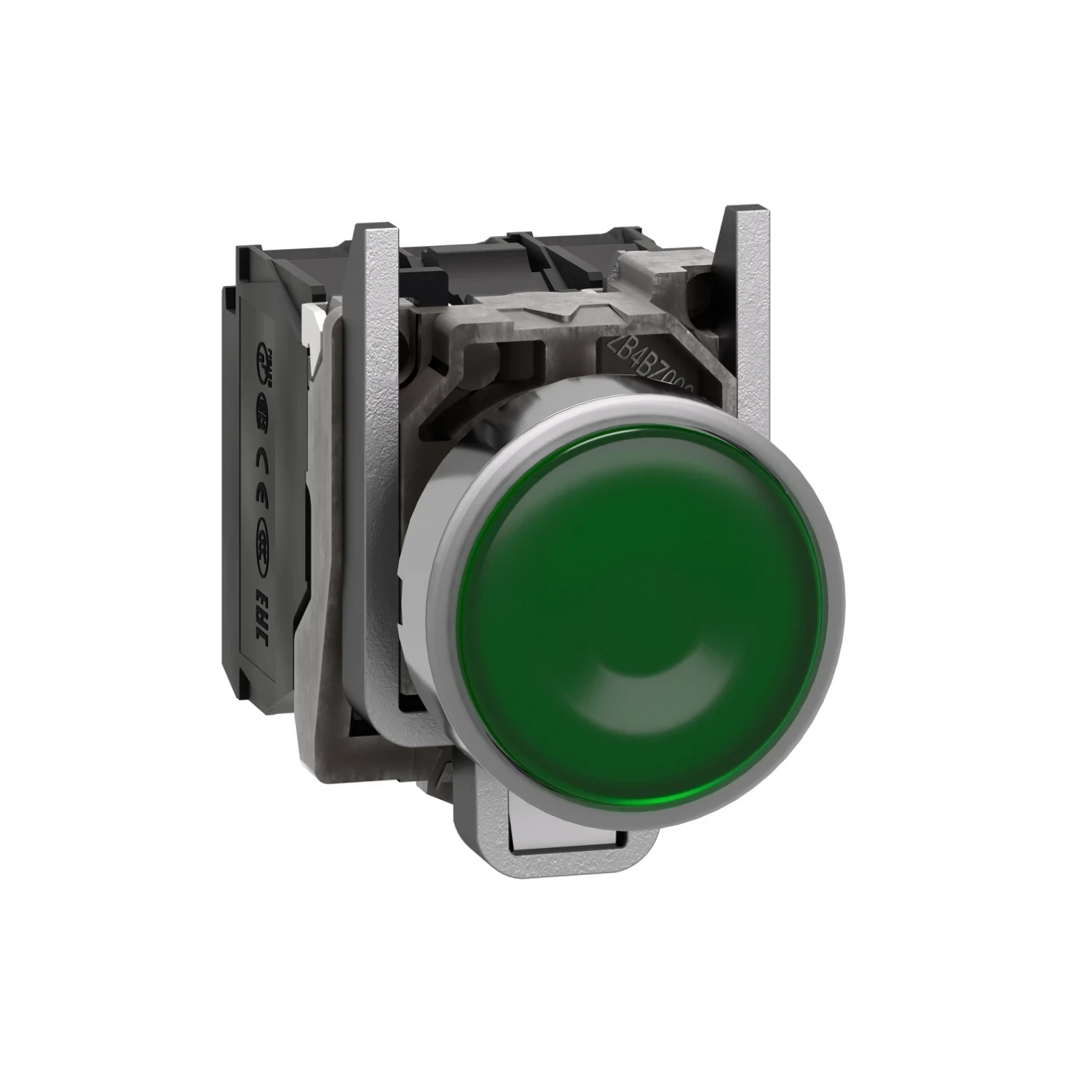

Photo is representative

Schneider Harmony XB4 Illuminated Pushbutton 22mm Green LED 24V AC/DC

Product Information

Stock Code XB4BW33B5
GTIN 3389110892048
Stock status: Available for delivery

priced individually

Net price: €36.90

Gross price

€45.38

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Green illuminated pushbutton from the Schneider Harmony XB4 range. 22mm panel mount with chromium plated bezel and integral LED light source.

Used on control panels and operator stations where visual feedback is needed alongside a switching function.

  • 24V AC/DC supply, 18 mA current consumption
  • 1 NO + 1 NC slow-break contacts
  • Spring return operator, round head
  • Screw clamp terminals, up to 2 x 2.5 mm² without cable end
  • IP66/IP67/IP69/IP69K rated
Specifications

Rated Supply Voltage

24 V AC/DC at 50/60 Hz

Contact Configuration

1 NO + 1 NC

Contact Operation

Slow-break

Operator Type

Spring return

Mounting Diameter

22.5 mm

IP Rating

IP66, IP67, IP69, IP69K

IK Rating

IK06

Terminal Type

Screw clamp, <=2 x 1.5 mm² with cable end; 1 x 0.22...2 x 2.5 mm² without cable end

Operating Temperature

-40...70 °C

Mechanical Durability

10,000,000 cycles

Rated Insulation Voltage

600 V

Weight

0.097 kg

Standards

IEC 60947-5-1, IEC 60947-1, UL 508

Documents

datasheet XB4BW33B5
