LC1D40008E7

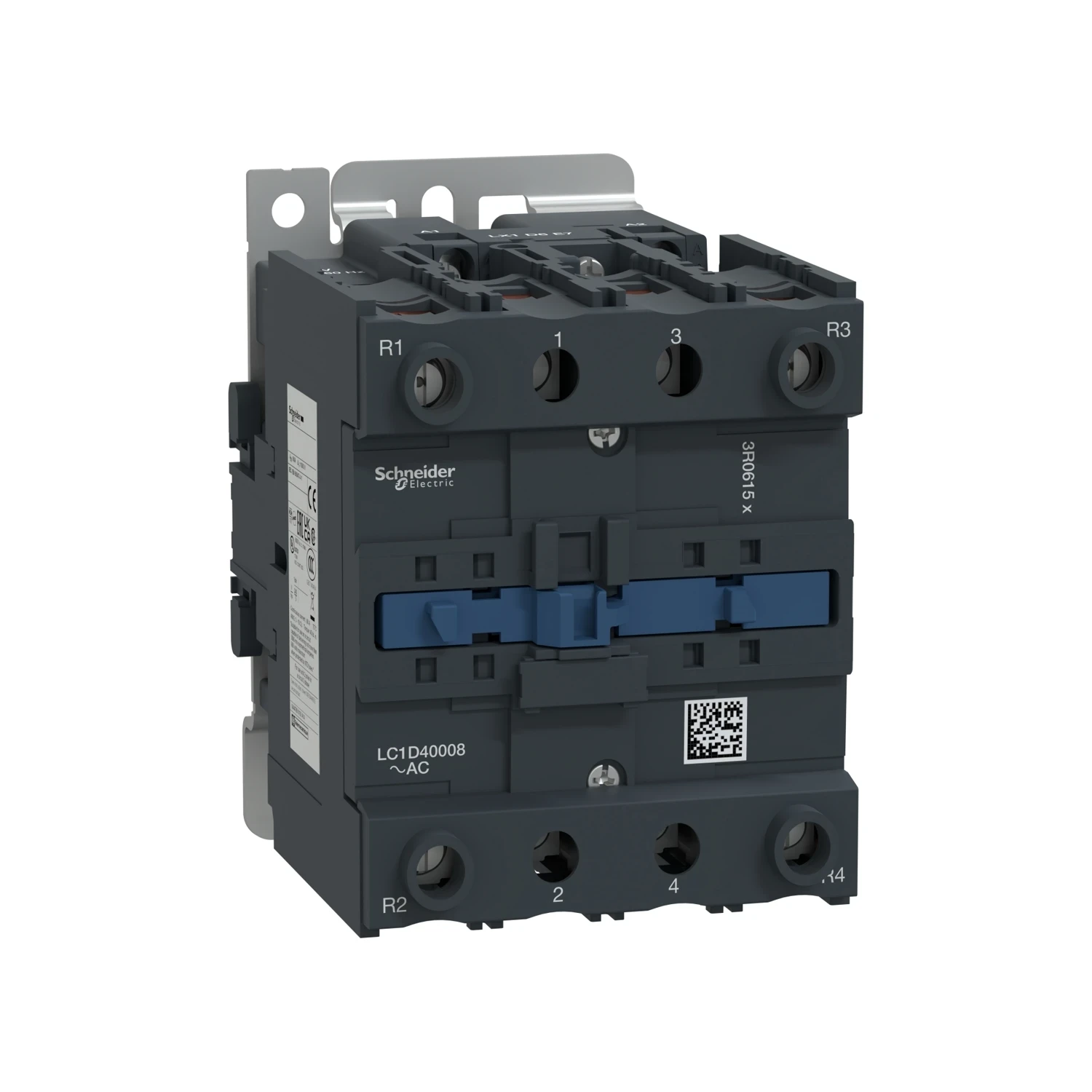

Photo is representative

Schneider TeSys D 60A 48V AC 4P Contactor 2NO+2NC - LC1D40008E7

Product Information

Stock Code LC1D40008E7
GTIN 3389110070262
Stock status: 2 available for delivery

priced individually

Net price: €215.64

Gross price

€265.24

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Schneider TeSys D contactor for resistive load switching, AC-1 rated up to 440V AC. Used for control and switching of power circuits in industrial control panels.

  • AC-1 rated current: 60A at ≤440V AC
  • Coil voltage: 48V AC 50/60Hz
  • Contact configuration: 4P, 2NO+2NC
  • Mounting: DIN rail or plate
  • Terminals: screw clamp, power 1-35mm², control 1-4mm²

Conforms to IEC 60947-4-1, EN 60947-4-1 and UL 60947-4-1.

Specifications

Rated Operational Current (AC-1)

60 A at ≤440 V AC

Control Circuit Voltage

48 V AC 50/60 Hz

Poles

4P

Contact Configuration

2NO+2NC

Rated Insulation Voltage (IEC)

690 V

Rated Impulse Withstand Voltage

6 kV

Mechanical Durability

6 Mcycles

Electrical Durability

1.4 Mcycles

IP Degree of Protection

IP20 front face

Ambient Air Temperature

-40 to 60°C

Dimensions (HxWxD)

127 x 85 x 125 mm

Net Weight

1.44 kg

Mounting

Rail, Plate

Standards

IEC 60947-4-1, EN 60947-4-1, UL 60947-4-1

Documents

datasheet LC1D40008E7
