Pinazo PNZ-A/55 TAC Polyester Enclosure with Roof 526x534x338mm IP55 IK10
Product Information
priced individually
Net price: €416.09
Gross price
€511.79
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items

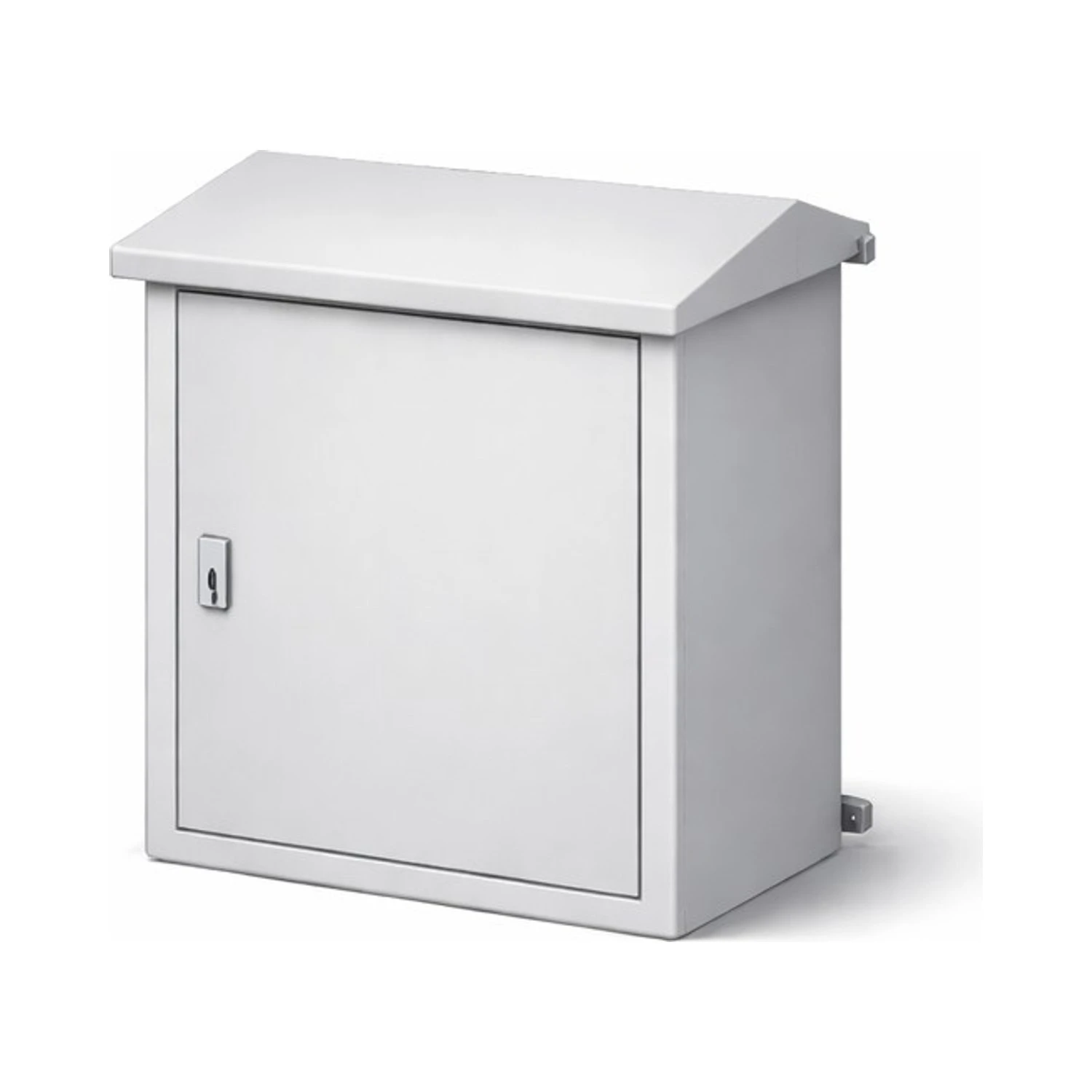

The Pinazo PNZ-A/55 TAC T1 (reference 630038) is an empty outdoor enclosure moulded from polyester reinforced with glass fibre, in light grey RAL 7035. The TAC configuration has a roof canopy on top and a closed base, and is generally fixed to a wall or pole. Overall size is 526 x 534 x 338mm (H x W x D) and it weighs 11kg.
The single door is on two hinges, opens beyond 90 degrees and closes with a triple-action lock using aluminium rods, locking at top, bottom and centre with a standard 11mm triangular key. The enclosure is rated IP55 to EN 60529 and IK10 to EN 62262, the material is self-extinguishing, and the stated temperature resistance is -30°C to +150°C. Components fit on a mounting plate, which is supplied separately: the PMP-55 polyester plate or PMM-55 metal plate.
