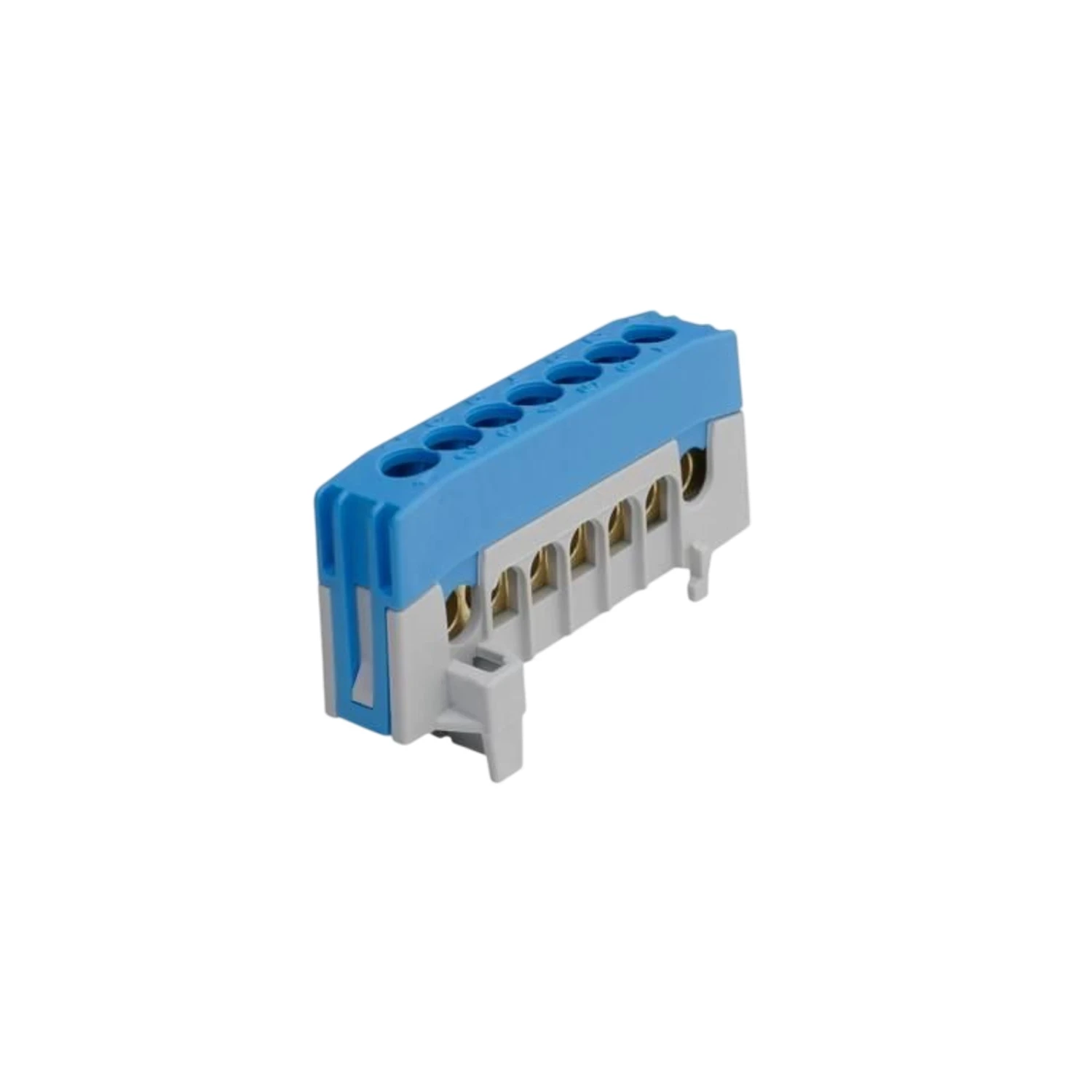

Neutral Bar 7 Way 63A DIN Rail Mounted Blue Shroud

Photo is representative

Neutral Bar 7 Way 63A DIN Rail Mounted Blue Shroud

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 2020266
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €2.91

Gross price

€3.58

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Snap-on neutral distribution block for 35mm DIN rail. Screw-type terminals accept solid, stranded and single-strand aluminium conductors up to 16mm² per connection point.

Suited to neutral termination in distribution boards and control panels where a dedicated N block is needed alongside phase and PE bars.

  • 7 connection points at 16mm² max
  • 63A nominal current rating
  • 690V insulation voltage (Ui)
  • Blue insulation, brass terminals
  • Pozidriv Z2 screw, 2Nm torque
Specifications

Nominal Current

63 A

Insulation Voltage (Ui)

690 V

Number of Ways

7

Max Conductor Cross-Section

16 mm² per terminal

Conductor Type

Solid, stranded, single-strand aluminium

Terminal Material

Brass

Mounting Type

Snap-on, 35mm DIN rail

Screw Type

Slotted cross recess Z2 (Pozidriv)

Torque

2 Nm

Colour

Blue

Standards

EN 60998, VDE 0613

Mounting Standard

EN 60715 / EN 60552
