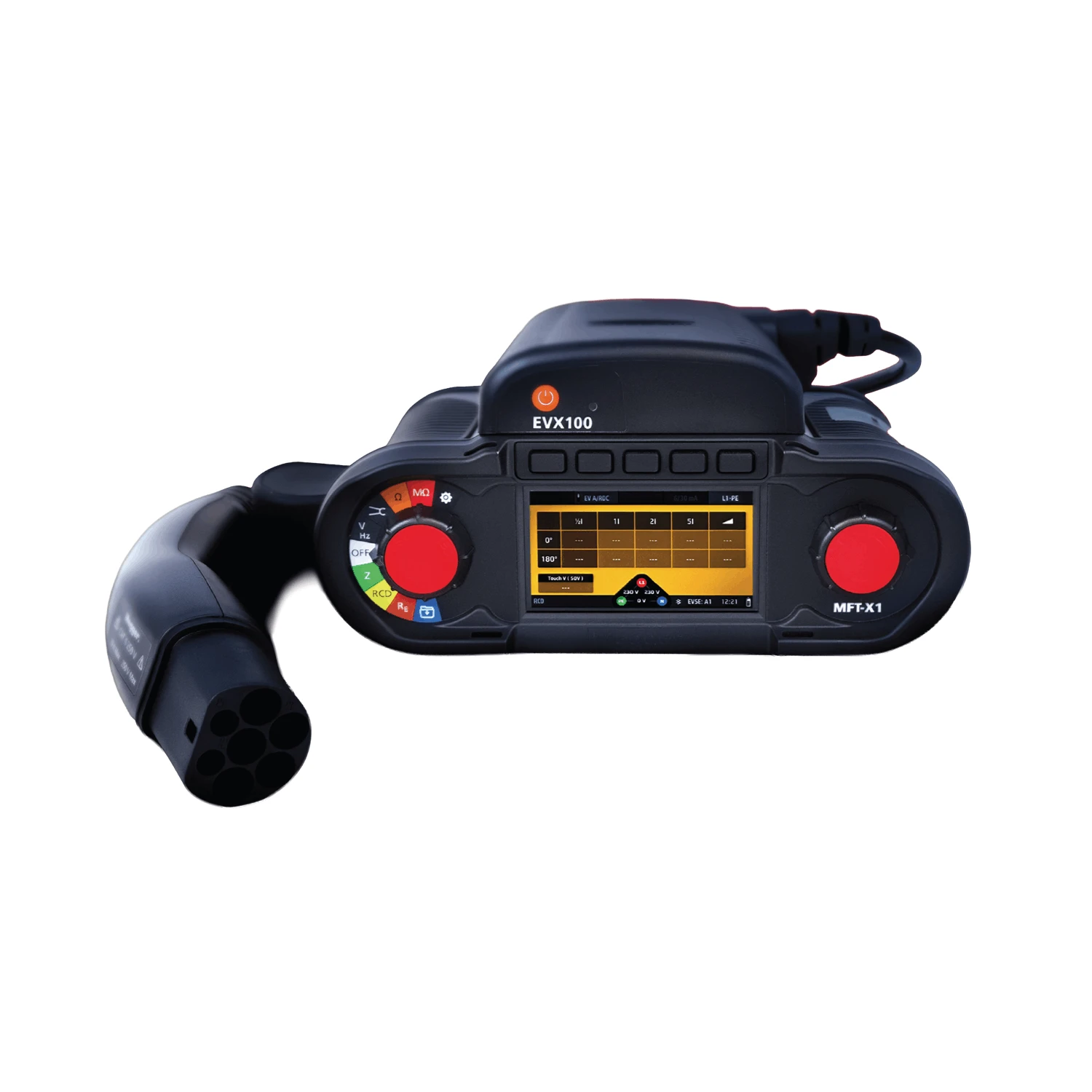

MEGGER MFT-X1 + EVX100 EV ADAPTOR BUNDLE

Photo is representative

Megger MFT-X1 Multifunction Tester + EVX100 EV Adaptor Bundle (1017-028)

Product Information

Stock Code 1017028
GTIN 5036175249338
Stock status: 2 available for delivery

priced individually

Net price: €1934.30

Gross price

€2379.19

Branch Stock

Monaghan

Stock status: 3 in stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: Out of stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: Out of stock
Open · Closes 6:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

This bundle pairs the Megger MFT-X1 multifunction tester with the EVX100 EV charger interface for testing single and three-phase Mode 3 AC charging stations. When connected, the MFT-X1 recognises the EVX100 and runs the EV tests from its own display. PP and CP states are switched automatically through the fixed Type 2 plug, and CP states A1 to F are reported. Testing of IEC 61851 and IEC 62955 protective devices is automated, and the EVX100 resets the charger after an RCD or RDC trip, so no manual adaptor box is needed.

The MFT-X1 covers continuity, stabilised insulation testing from 50 V to 1000 V DC, True Loop impedance with 0.001 Ω resolution, Type AC, A and B RCD testing, 6 mA RDC testing and earth resistance. Both units are IP54; the MFT-X1 is rated CAT III 600 V / CAT IV 300 V and the EVX100 CAT II 250 V.

Specifications

Bundle Contents

MFT-X1 multifunction tester + EVX100 EV charger interface

EV Charger Testing

Single and three-phase Mode 3 AC EVSE

EV Connection

Fixed Type 2 plug (IEC 62196-1), 2 m cable

CP State Verification

A1, A2, B1, B2, C1, C2, E, F

EVX100 Input Voltage

230 V AC (max 253 V) / 400 V AC (max 440 V), 50/60 Hz

Insulation Test

50 V to 1000 V DC + variable 50 V to 999 V, 0.001 MΩ to 999 MΩ

Loop Impedance

True Loop 2-wire and 3-wire non-trip, 0.001 Ω high-resolution mode, 48 V to 550 V AC

RCD / RDC Testing

Type AC, A, B, AC(S), A(S), B(S); 6 mA RDC; ramp 10 mA to 1000 mA

Continuity

0.01 Ω to 999 kΩ, >200 mA test current

Earth Resistance

2-wire, 3-wire, ART and stakeless, 0.01 Ω to 1999 Ω

Measurement Category

MFT-X1: CAT III 600 V / CAT IV 300 V; EVX100: CAT II 250 V (IEC 61010)

Ingress Protection

IP54 (both units)

Megger Test and Measurement Equipment
