KG10T203GBA355

Photo is representative

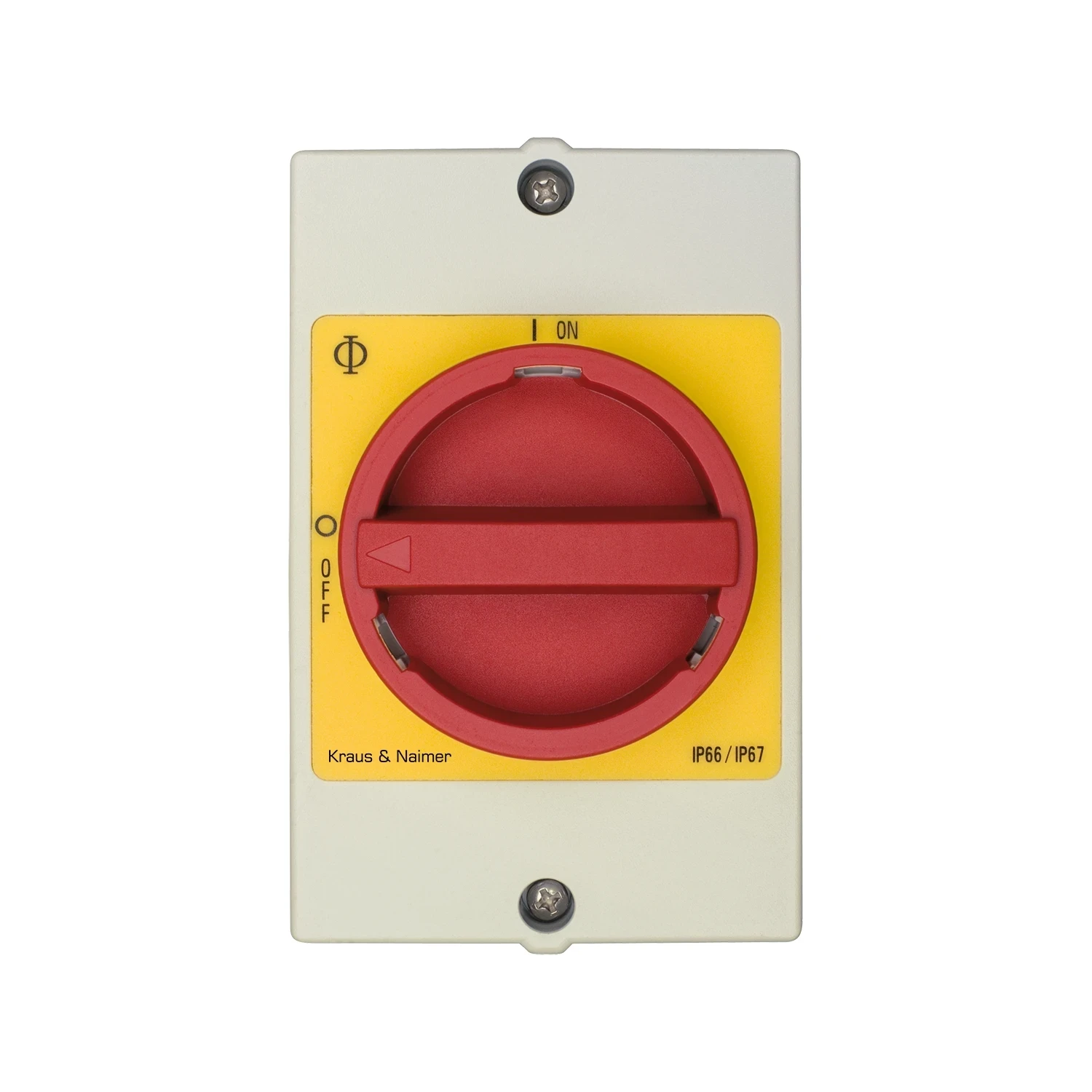

Kraus & Naimer Enclosed Isolator 20A 3P+N IP66 Screw Terminal

Product Information

Stock Code KG10T203GBA355
GTIN —
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €36.43

Gross price

€44.81

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

The Kraus & Naimer KG10 is a manual motor control switch/isolator with a rigid silver contact bridge and screw terminal connections. Rated 20A with 3P+N configuration, it’s suited to industrial AC motor control and plant isolation duties, housed in an IP66 enclosure for washdown or outdoor environments.

  • Rated current (Iu/Ith): 20A at 50°C ambient
  • Ui (insulation voltage): 690V AC/DC 50/60Hz
  • IP66 enclosure rating
  • 3P+N screw terminals, up to 2.5mm² flexible cable
  • Compliant to IEC 60947-3 / EN 60947-3
Specifications

Rated Current (Iu/Ith)

20A at 50°C ambient

Rated Insulation Voltage (Ui)

690V AC/DC 50/60Hz

Rated Impulse Withstand Voltage (Uimp)

4kV

IP Rating

IP66

Poles

3P+N

Terminal Type

Screw terminal

Conductor Size (Flexible wire, max)

2.5mm² copper

Tightening Torque

0.60Nm

Operating Temperature Range

-25°C to 55°C

Standards and Certifications

IEC 60947-3, EN 60947-3

Documents

datasheet KG10T203GBA355
