9571445

Photo is representative

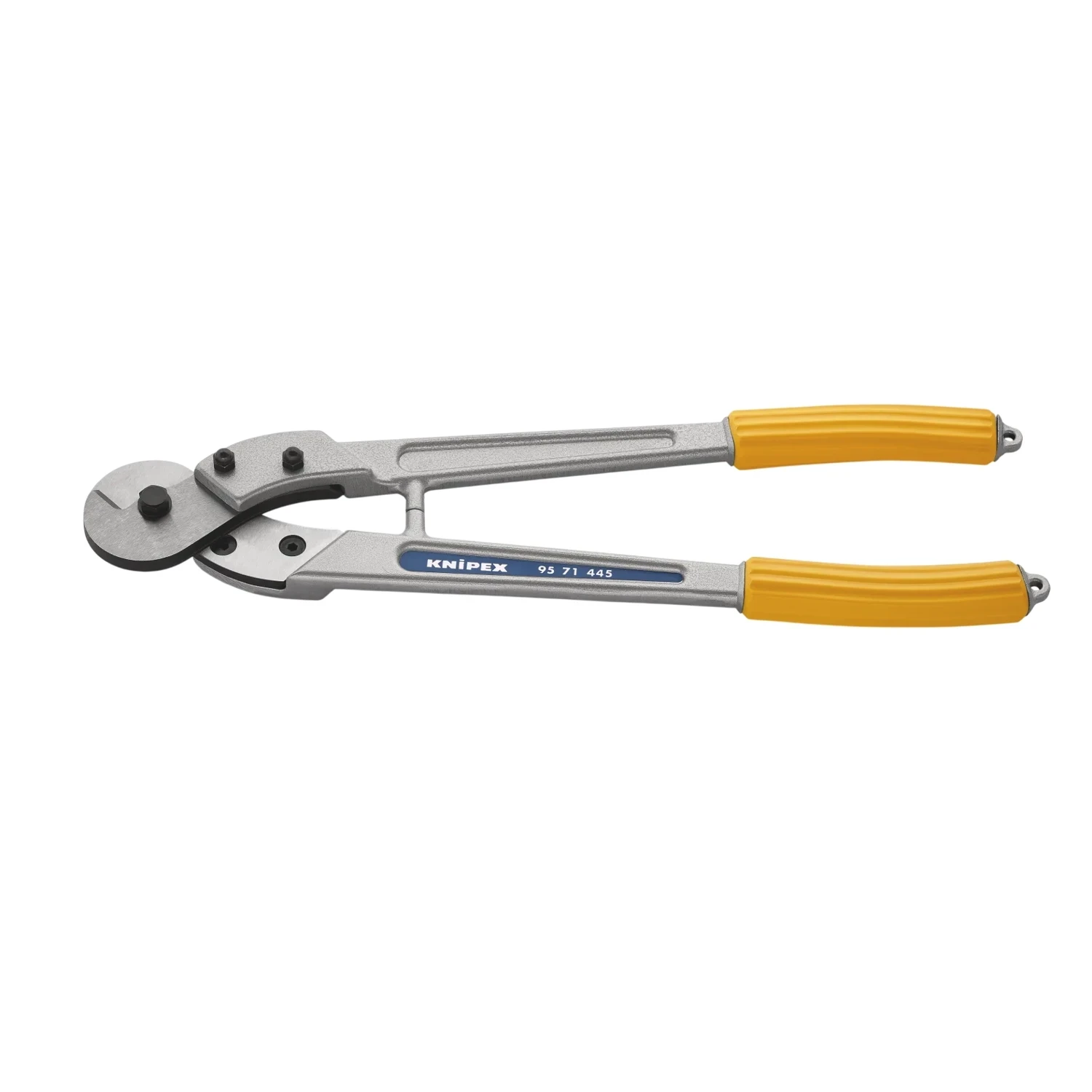

Knipex Wire Rope Cutter 445mm 10mm Wire Rope 95mm² Copper Cable

Product Information

Stock Code 9571445
GTIN 4003773014522
Stock status: Out of stock

priced individually

Net price: €117.86

Gross price

€144.97

Wire rope and ACSR-cable cutter from Knipex. Cuts wire ropes, steel rods, and copper/aluminium cables, including overhead ACSR cables with strain relief wire.

Angular cutting blades give a clean cut on single rope wires, with an optimum transmission ratio for higher cutting force.

  • Cutting capacity wire rope: Ø10.0mm
  • Cutting capacity medium hard wire: Ø7.0mm
  • Cutting capacity copper cable (multi-stranded): 95mm²
  • Cutting capacity copper cable (fine-stranded): Ø10.0mm
  • Overall length: 445mm
Specifications

Weight

1,083 g

Dimensions

445 x 130 x 24 mm

Head Material

polished, high-grade special tool steel, multi stage oil-hardened

Handles

aluminium, high-strength, with plastic grips

Cutter Head

bolted, replaceable

Cutting Capacity Copper Cable, Multiple-stranded

95 mm²

Cutting Capacity Copper Cable, Fine-stranded

Ø 10.0 mm

Cutting Capacity Wire Rope

Ø 10.0 mm

Cutting Capacity Medium Hard Wire

Ø 7.0 mm

Cutting Capacity Iron

Ø 7 mm

AWG

4/0

Documents

datasheet 9571445
