KEM380YRM3

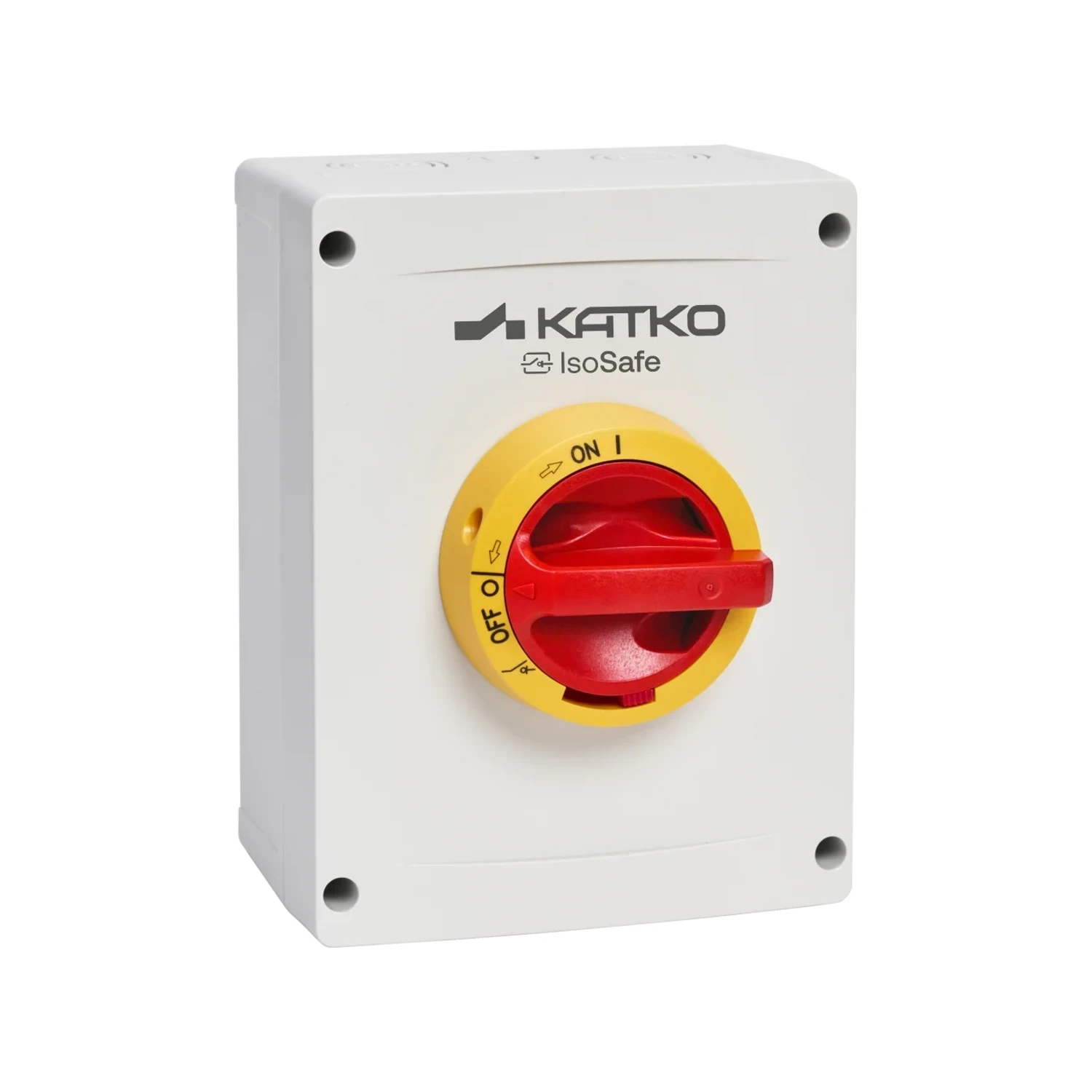

Photo is representative

Katko Enclosed Isolator 100A 3P IP66 Load Break Switch 415V AC23A

Product Information

Stock Code KEM380YRM3
GTIN 6419410207871
Stock status: 6 available for delivery

priced individually

More arriving soon

Net price: €106.14

Gross price

€130.56

Branch Stock

Monaghan

Store with product available for collection.

Stock status: Out of stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Stock status: Out of stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 6 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Katko KEM 380 YR M3 is a 3-pole isolating load break switch in a polycarbonate enclosure. Built for local isolation of motors and general loads on site.

Rated for 30kW motor control at 415V with on-load breaking capability, so it can be switched under load rather than just used as a dead isolator.

  • IP66 rated polycarbonate enclosure
  • AC-23A 415V: 63A / AC-21A 415V: 100A
  • Rated insulation voltage Ui: 800V
  • Terminal capacity: 2.5–35 mm² Cu
  • Mechanical endurance: 50,000 operations
Specifications

Poles

3

Switch Type

Load Break Switch

Enclosure Material

Polycarbonate

IP Rating

IP66

Rated Operational Current AC-23A 415V

63 A

Rated Operational Current AC-21A 415V

100 A

Rated Operational Current AC-22A 415V

80 A

Rated Operational Power AC-23A 415V

30 kW

Rated Insulation Voltage Ui

800 V

Rated Impulse Withstand Voltage Uimp

8 kV

Rated Short-Circuit Making Capacity Icm 690V

3.1 kA

Rated Short-Time Withstand Current Icw 690V 1s

2 kA

Terminal Bolt Size Cu

2.5-35 mm²

Maximum Terminal Torque

2.5 Nm

Mechanical Endurance

50000 operations

Dimensions HxWxD

190 x 144 x 96 mm

Net Weight

0.835 kg

Documents

datasheet KEM380YRM3
