KEM280VVM3

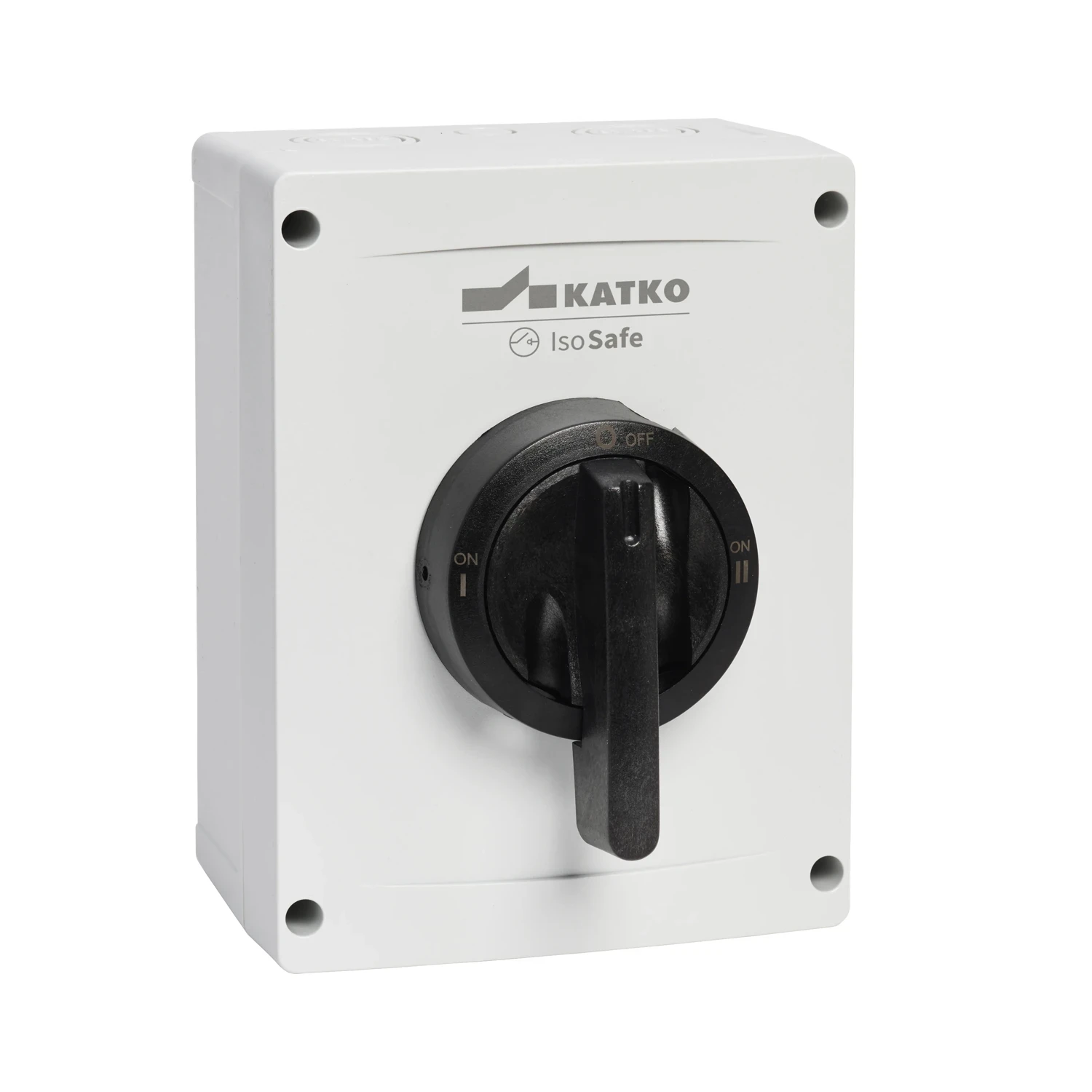

Photo is representative

KATKO Enclosed Changeover Switch 100A 2P IP66

Product Information

Stock Code KEM280VVM3
GTIN —
Stock status: 7 available for delivery

priced individually

More arriving soon

Net price: €98.01

Gross price

€120.55

Branch Stock

Monaghan

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 2 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 3 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

2-pole changeover load break switch (KEM280VVM3) in a polycarbonate IP66 enclosure. Built for source selection and motor/general load switching where you need on-load transfer between two supplies.

Compact M3 enclosure, bolt-on terminals up to 35mm², suits DB and small plant changeover jobs.

  • Rated 63A AC-23A / 100A AC-21A at 415V
  • Rated thermal current (ITH) 100A
  • Rated insulation voltage (Ui) 800V
  • Terminal range 2.5-35mm², max torque 2.5Nm
  • Mechanical endurance 50,000 operations
Specifications

Poles

2P

IP Rating

IP66

Rated Operational Current AC-23A 415V

63 A

Rated Operational Current AC-21A 415V

100 A

Rated Thermal Current ITH

100 A

Rated Insulation Voltage Ui

800 V

Rated Impulse Withstand Voltage Uimp

8 kV

Terminal Capacity

2.5-35 mm²

Maximum Terminal Torque

2.5 Nm

Rated Breaking Capacity AC-23A 415V

504 A

Enclosure Material

Polycarbonate

Dimensions H x W x D

190 x 144 x 96 mm

Net Weight

1.1104 kg

Mechanical Endurance

50000 operations

Electrical Endurance

3000 operations

Documents

datasheet KEM280VVM3
