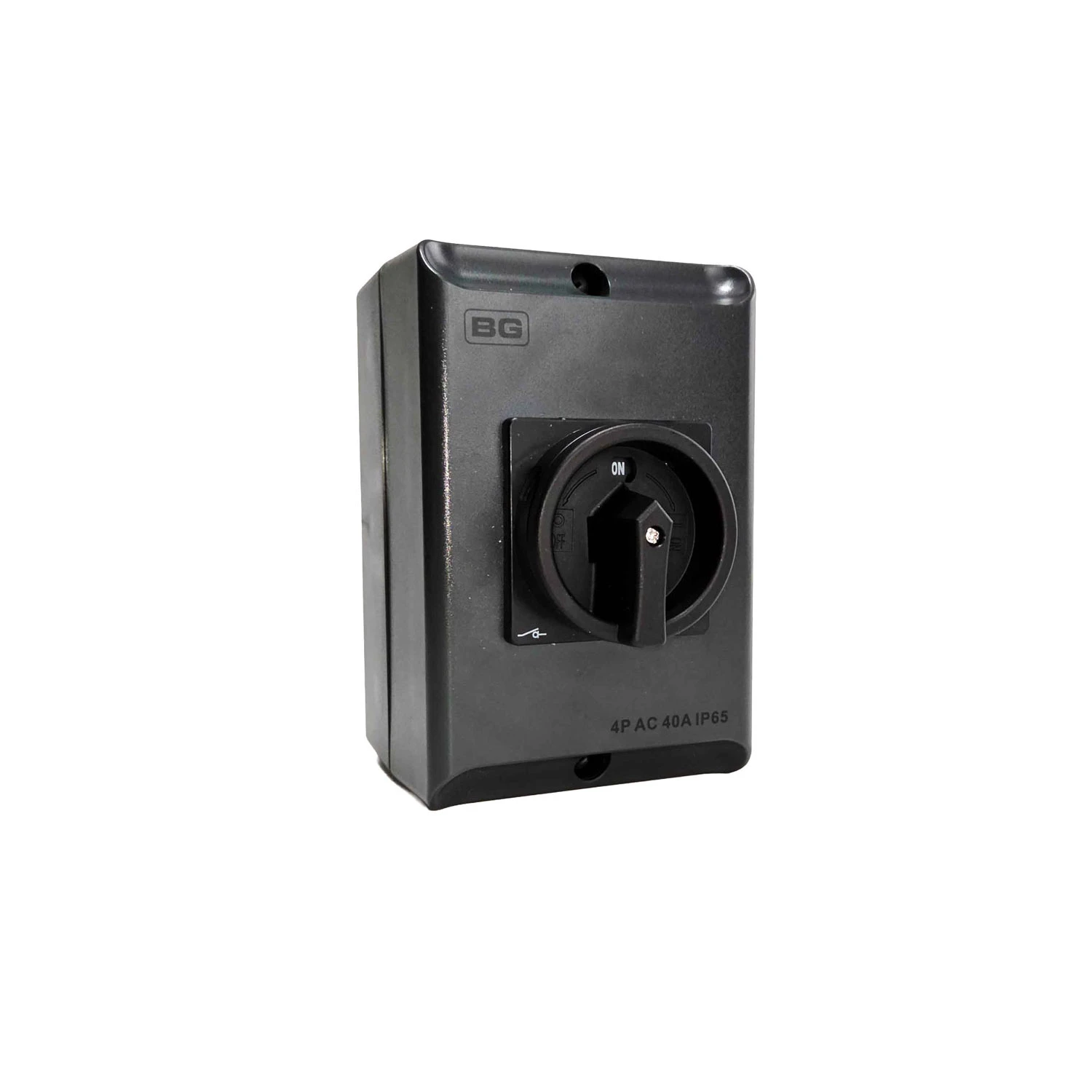

BG Isolator

Photo is representative

BG British General Enclosed Isolator 40A 4P IP65 Anthracite Grey

Product Information

Stock Code CPRSD440AG01
GTIN 5050765300674
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €25.60

Gross price

€31.49

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

BG British General enclosed isolator, 40A rated, 4-pole for three-phase isolation. Anthracite grey polycarbonate enclosure rated IP65, IK10 impact rated. Used for HVAC systems, machinery and pump control isolation.

  • Ue: 440V AC, Ui: 690V
  • Icw: 800A
  • AC-22A / AC-23A / AC-3 rated, 40A
  • Max cable size: 16mm²
  • Operating temp: -25°C to +70°C
Specifications

Rated Voltage (Ue)

440V

Rated Insulation Voltage (Ui)

690V

Poles

4P

Rated Operating Current

40A

Rated Short Circuit Current (Icw)

800A

Utilisation Category

AC-22A, AC-23A, AC-3

AC-23A Power Rating

15 kW

Max Cable Size

16 mm²

Construction Material

Polycarbonate

IP Rating

IP65

Impact Resistance

IK10

Operating Temperature Range

-25°C to +70°C

Dimensions (H x W x D)

175mm x 115mm x 135mm

Standards

IEC 60947-3

What's included

1 x BG Isolator 40A 4 Pole IP65 Anthracite Grey

Documents

datasheet CPRSD440AG01

BG British General
