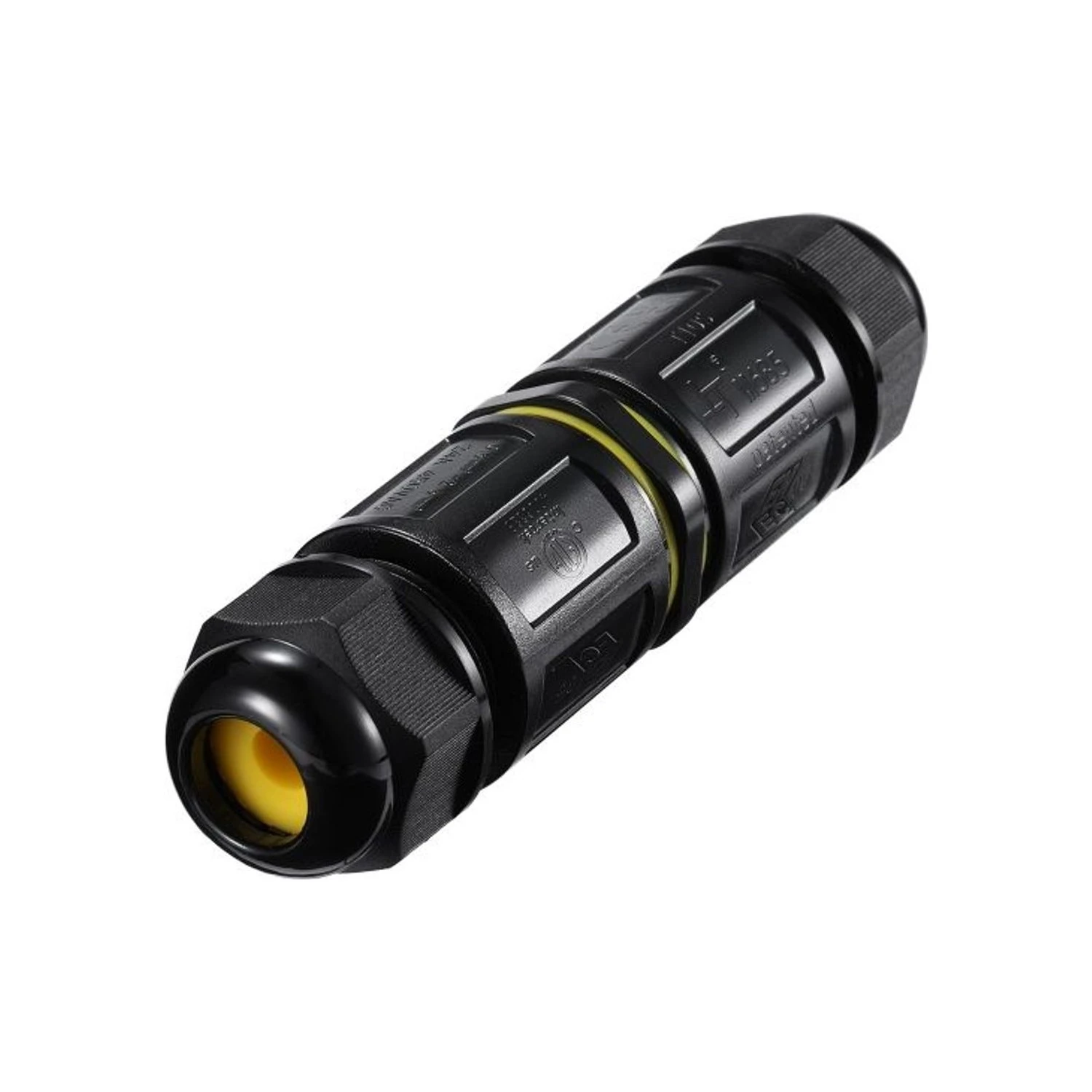

Connect Craft M685-B IP68 waterproof 5 pole inline cable connector

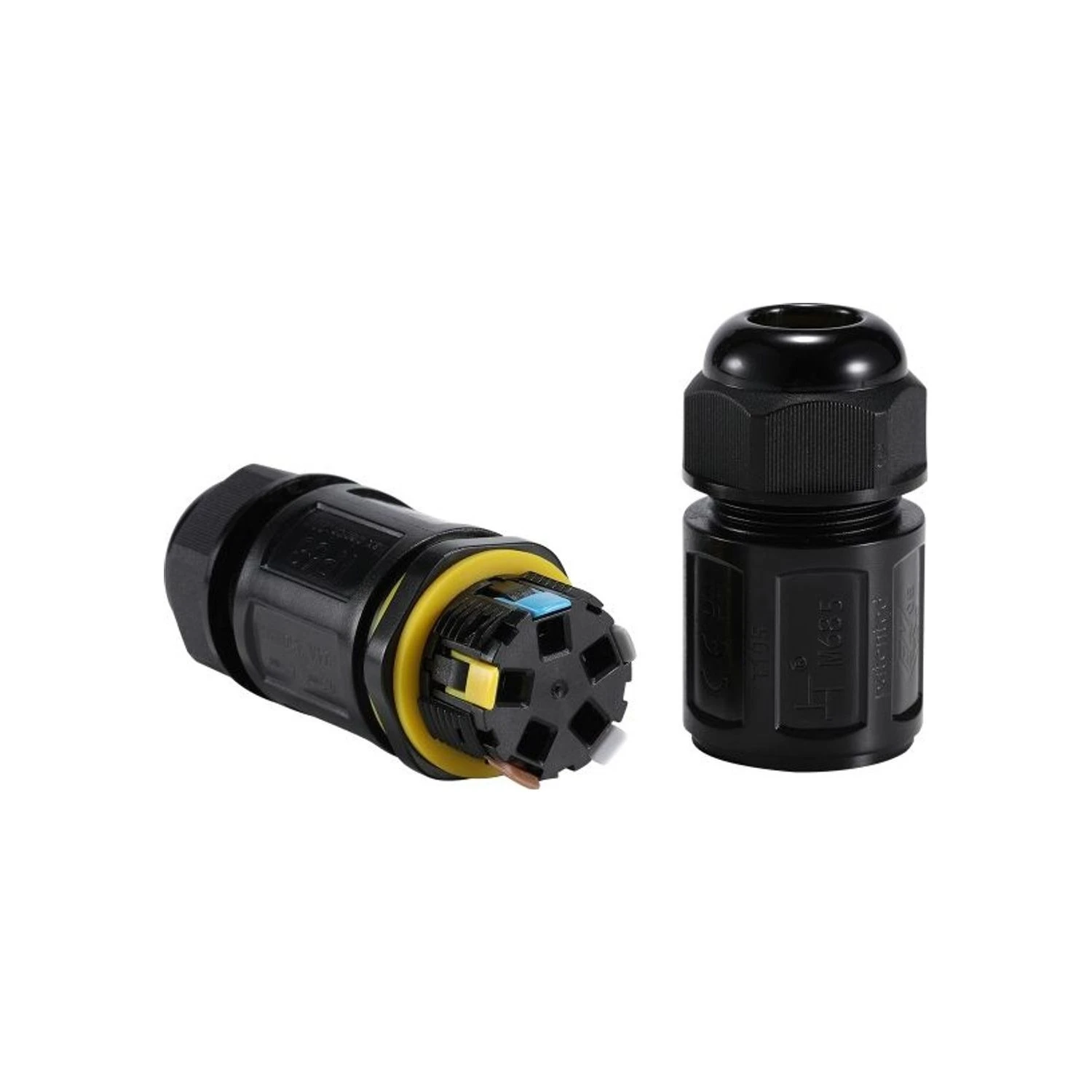

Connect Craft M685-B IP68 inline connector opened showing lever terminals

Photo is representative

Connect Craft M685-B IP68 waterproof 5 pole inline cable connector
Connect Craft M685-B IP68 inline connector opened showing lever terminals

IP68 Waterproof Inline Cable Connector 24A 0.5-2.5mm² 5 Pole, Lever - Connect Craft M685-B

Product Information

Stock Code M685-B
GTIN 7426816892142
Stock status: Available for delivery

priced individually

Net price: €10.63

Gross price

€13.08

Branch Stock

Monaghan

Stock status: In stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
+353 47 81135
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Cavan

Stock status: In stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. Cavan, H12 PV48, Ireland
+353 49 4365190
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed

Carrickmacross

Stock status: In stock
Open · Closes 5:00 PM
Directions Call
Address & hours
Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
+353 42 9663322
Mon – Thu
8:00 AM – 6:00 PM
Fri
8:00 AM – 5:00 PM
Sat
9:00 AM – 1:00 PM
Sun
Closed
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout Visa Mastercard American Express Google Pay PayPal Revolut Pay Klarna Amazon Pay MobilePay

Connect Craft M685-B is an IP68 waterproof inline cable connector with screwless lever terminals: the conductors are clamped by pressing the levers, and the cable glands are tightened by hand.

  • Poles: 5 pole
  • Rating: 24A, 450V AC
  • Conductors: 0.5-2.5mm²
  • Cable entries: 2 x M25 glands, cable OD 4-14mm (4-8 / 8-12 / 10-14mm seals)
  • Protection: IP68
  • Operating temperature: -40 to +105°C
  • Size: 118 x 32mm

Sold individually.

Specifications

Brand

Connect Craft

Model

M685-B

Type

IP68 waterproof inline connector

Poles

5 pole

Rated Current

24A

Rated Voltage

450V AC

Conductor Size

0.5-2.5mm²

Terminal Type

Screwless lever

Cable Entries

2 x M25 glands, cable OD 4-14mm (4-8 / 8-12 / 10-14mm seals)

IP Rating

IP68

Operating Temperature

-40 to +105°C

Dimensions

118 x 32mm

Unit of Sale

Single connector
