Hensel DK 0202 G Junction Box 93×93×62 IP66 M20 Membrane Entries, 5-Pole 2.5mm² Terminal
Product Information
Stock Code
DK0202G
GTIN
—
Stock status: Available for delivery
priced individually
Net price: €6.90
Gross price
€8.49
Fast dispatch from stock
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Mon–Fri Free delivery over €61.50
Usually 1–3 working days 28-day returns
On unused items
Secure checkout

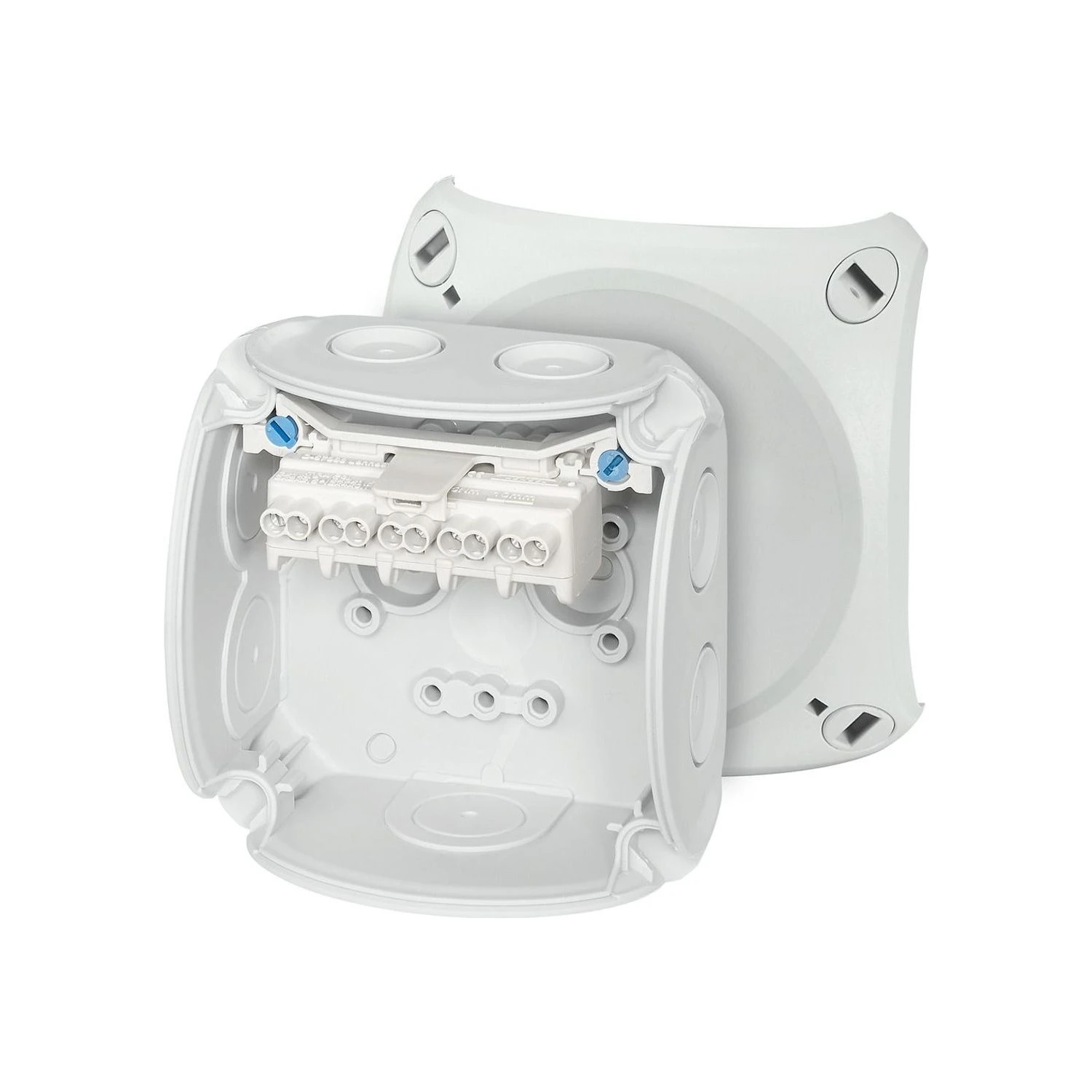

Hensel DK 0202 G (ENYCASE DK series) is a cable junction box with a 5-pole branch terminal, for normal environments and protected outdoor locations.

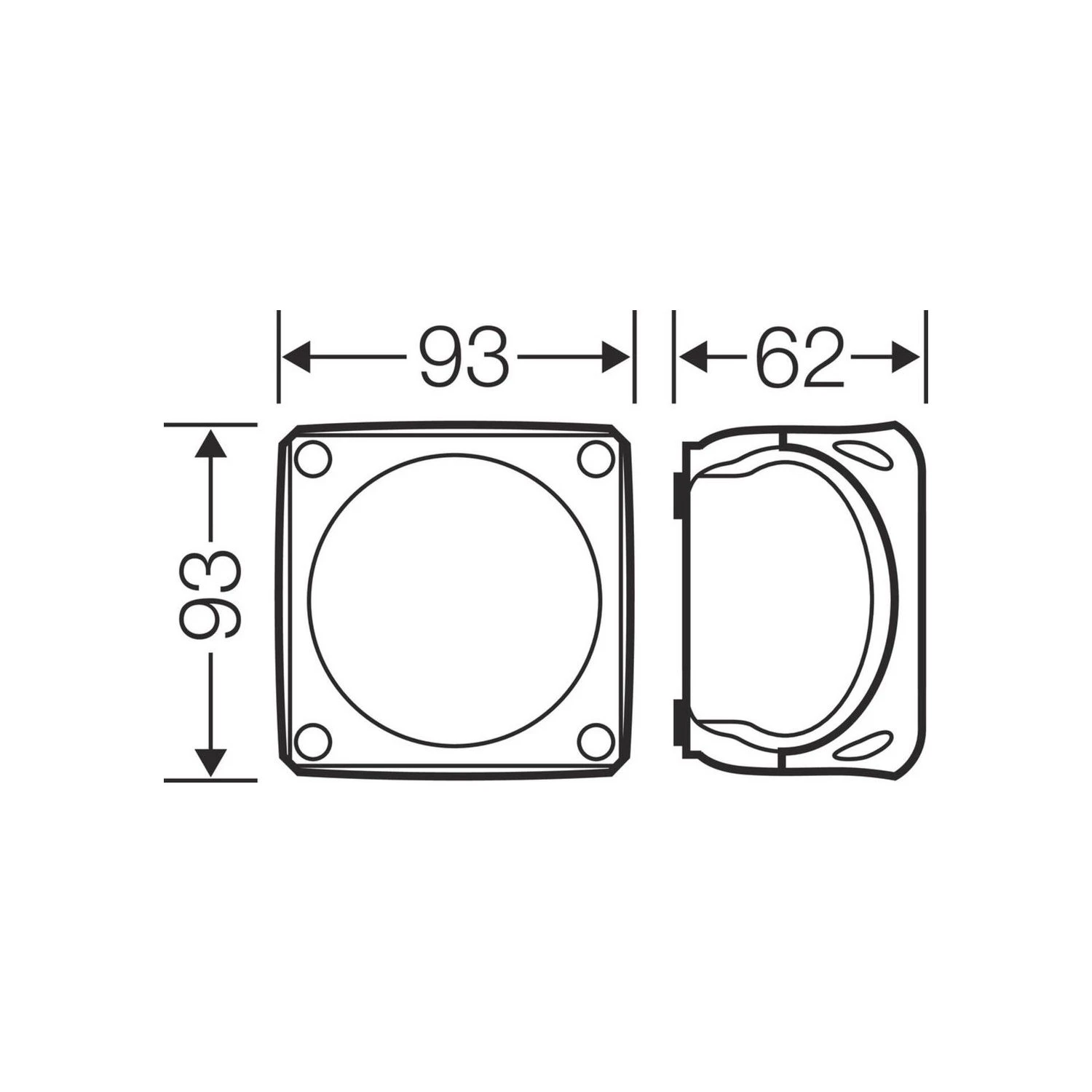

- Size: 93 x 93 x 62mm (H x W x D)
- Protection: IP66, IK07
- Material: polypropylene, grey RAL 7035, halogen-free and silicone-free
- Entries: 7 elastic membranes in the walls for M20 glands (6-15mm), plus 1 base membrane (6-13mm)
- Terminal: 5-pole, 0.75-2.5mm², 2 clamping units per pole, screw connection; rated 690V, 20A
- Lid: quarter-turn quick lock, sealable
Supplied with external fixing brackets, a retaining strap and a sealing plug. Ambient temperature -25 to +40°C. Glow wire 750°C, UL94 V-2, to IEC 60670-1/-22.
