GW44026

Photo is representative

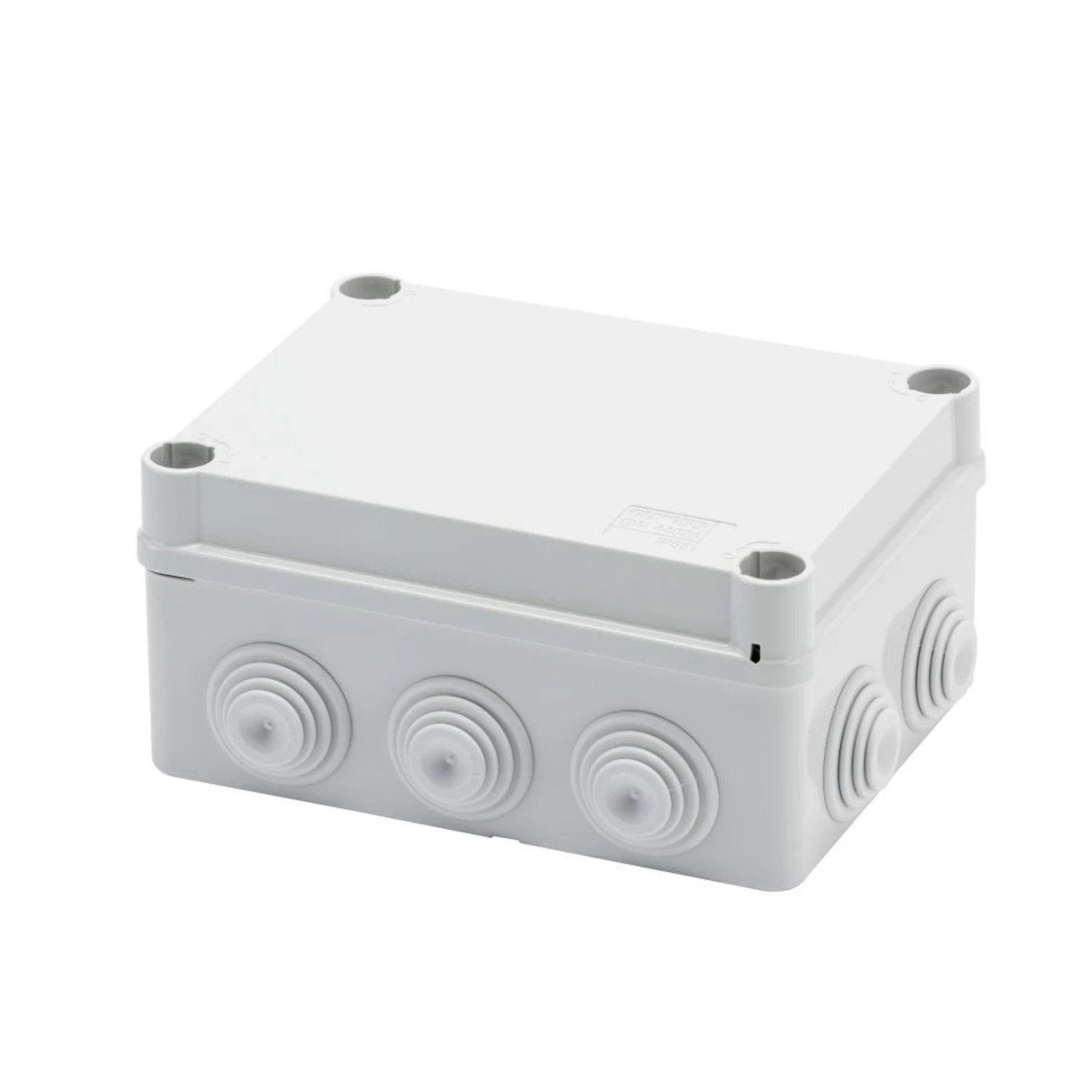

Gewiss Watertight Junction Box 150x110x70 IP55 10 Entries Grey

Product Information

Stock Code GW44026
GTIN 8011564177024
Stock status: Available for delivery

priced individually

More arriving soon

Net price: €7.59

Gross price

€9.34

Branch Stock

Monaghan

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: 5 in stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Stock status: Out of stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Surface-mounting watertight junction box for ordinary and industrial cable joints. Built from halogen-free GWPLAST 75 technopolymer, grey RAL 7035, part of the Gewiss 44 CE range.

Rated IP55 with IK08 impact resistance, suited to internal and sheltered outdoor installations where cable termination points need protection from dust and water ingress.

  • Internal dimensions 150x110x70mm
  • 10 entries, Ø29mm, walls fitted with cable glands
  • Low screwed lid, 4 insulated 1⁄4-turn sealable screws
  • Operating temperature -25°C to +60°C
  • Insulation Class II
Specifications

IP Degree

IP55

Mechanical Resistance

IK08

Insulation Class

II

Material

Technopolymer GWPLAST 75

Type of Material

Halogen-free in compliance with EN 60754-2

Operating Temperature

-25 +60 °C

Internal Dimensions LxHxD

150x110x70 mm

Entries

10 / Ø 29

Lid Type

Low screwed

Lid Screws

4 insul. a 1/4 turn, sealable

Torque Screws Tightening

1.2 NM

Glow Wire Test

650 °C

Thermo-pressure with Ball

85 °C

Colour

Grey RAL 7035

Documents

datasheet GW44026

Gewiss Industrial Plugs & Enclosures
