GW20208

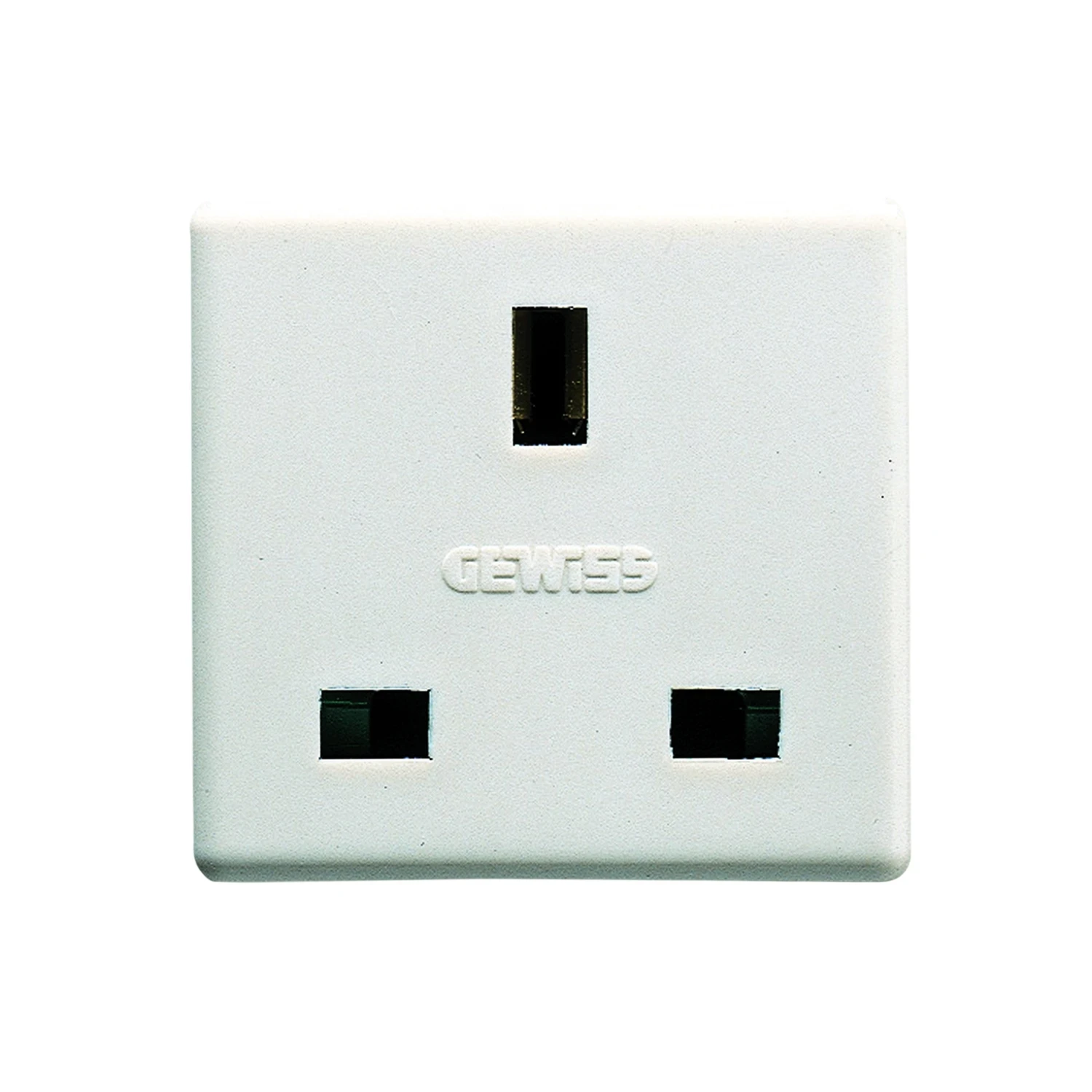

Photo is representative

Gewiss System White 13A Socket-Outlet 2P+E BS 1363-2 Module

Product Information

Stock Code GW20208
GTIN 8011564453647
Stock status: Available for delivery

priced individually

Net price: €13.41

Gross price

€16.49

Branch Stock

Monaghan

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Monaghan, Plantation Road, Co. Monaghan, H18 E781, Ireland
Phone: +353 47 81135

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Carrickmacross

Store with product available for collection.

Stock status: In stock
Opening hours

Store Information

Address:

Carrickmacross, Ardee Rd, Co. Monaghan, A81 Y573, Ireland
Phone: +353 42 9663322

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed

Cavan

Store with product available for collection.

Stock status: 4 in stock
Opening hours

Store Information

Address:

Cavan, Unit 7, Kilmore Business Park, Dublin Road, Co. CavanH12 PV48, Ireland
Phone: +353 49 4365190

Opening hours:

Monday - Thursday
8:00 AM - 6:00 PM
Friday
8:00 AM - 5:00 PM
Saturday
9:00 AM - 1:00 PM
Sunday
Closed
Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 28 day returns

Modular 13A socket-outlet from the Gewiss System White range. Fits flush-mount or surface-mount grid installations for domestic wiring.

Fitted with safety shutters and flat plug pins to BS 1363-2. Screw terminals accept a range of cable sizes for first and second fix.

  • 2P+E, 13A, 250 V AC
  • BS 1363-2 / IEC 60884-1
  • Screw terminals: 1.5-4 mm² stranded, 1.5-2.5 mm² solid
  • Technopolymer housing, 2 SYSTEM modules
  • Glow wire test 850°C
Specifications

Voltage

250 V ac

Standard

IEC 60884-1; BS 1363-2

Plug Pins

Flat

Wiring Terminals

With screw

No. SYSTEM Modules

2

Material

Technopolymer

Terminal Tightening Capacity Stranded Cables

min. 1.5 - max. 2x4 mm²

Terminal Tightening Capacity Solid Cables

min. 1.5 - max. 2x2.5 mm²

Glow Wire Test

850 °C

Thermo-pressure with Ball

125 °C

Width

46.2 mm

Height

44.4 mm

Depth

42.5 mm

Compliance

CE, UKCA

Documents

datasheet GW20208
